Connector End View - X482 [4/25/2019 - 10/20/2019]

Location:

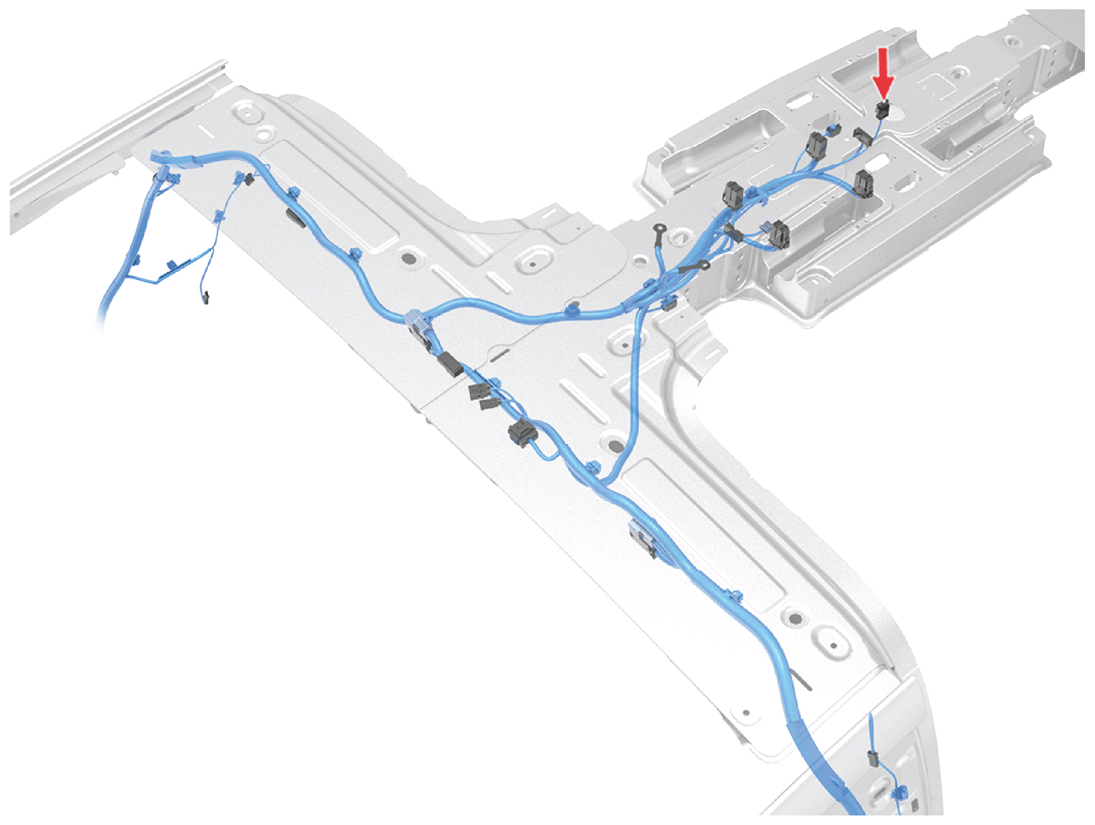

Fig 1: Connector Component Location - X482 [4/25/2019 - 10/20/2019]
G15221680Courtesy of TESLA, INC.

Connector Detail: HIRSCHMANN 872-858-546

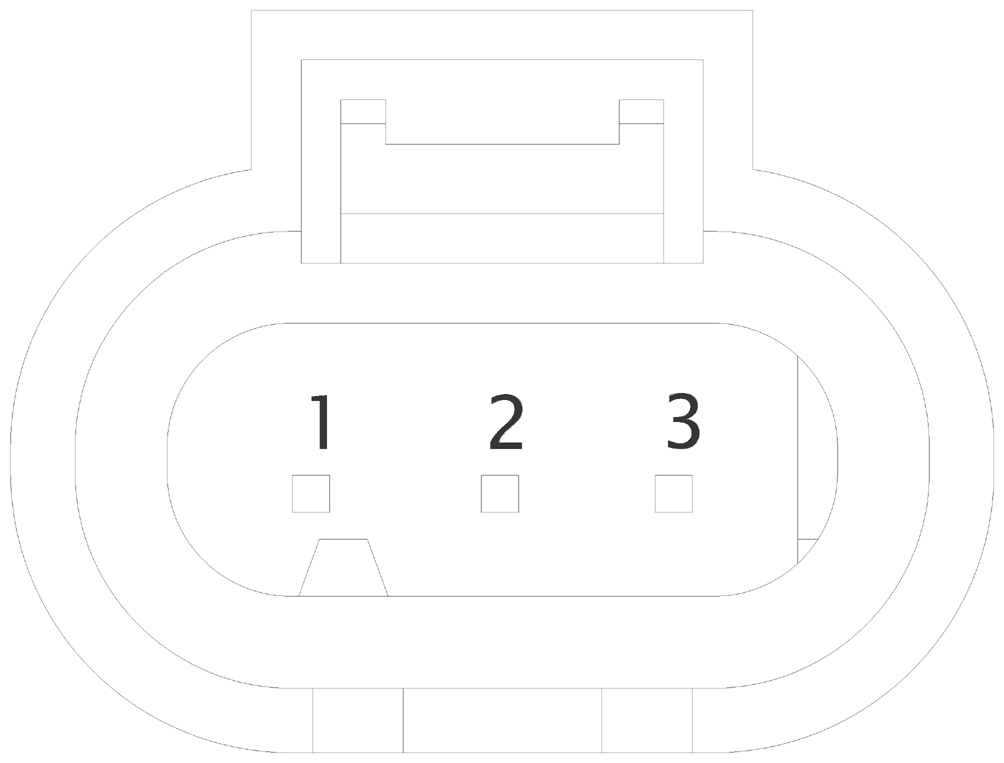

Fig 2: Connector End View - X482 [4/25/2019 - 10/20/2019]
G15221681Courtesy of TESLA, INC.

Color: CR

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination Terminal Seal
1     SN X976M-1 7-1452665-1 967067-2
2     SN X970M-14 7-1452665-1 967067-2
3     SN X976M-3 7-1452665-1 967067-2
