Connector End View - X508 [4/25/2019 - 10/20/2019]

Location:

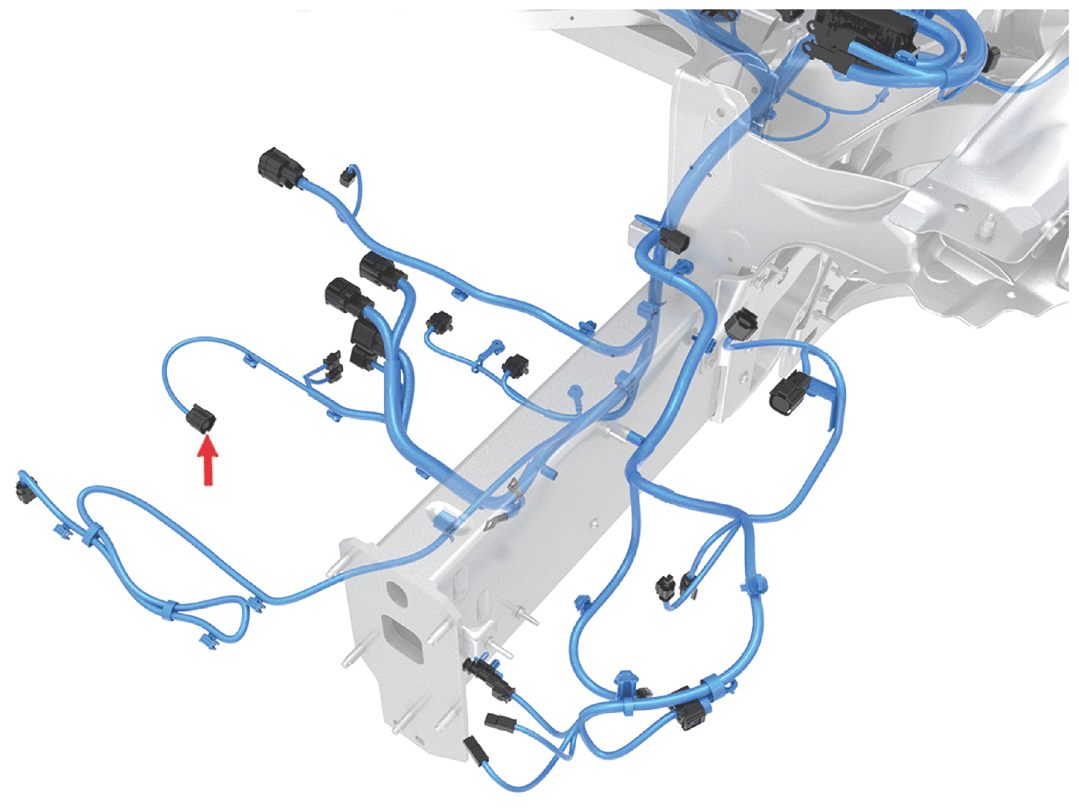

Fig 1: Connector Component Location - X508 [4/25/2019 - 10/20/2019]

Courtesy of TESLA, INC.

Connector Detail: SUMITOMO 6189-7757

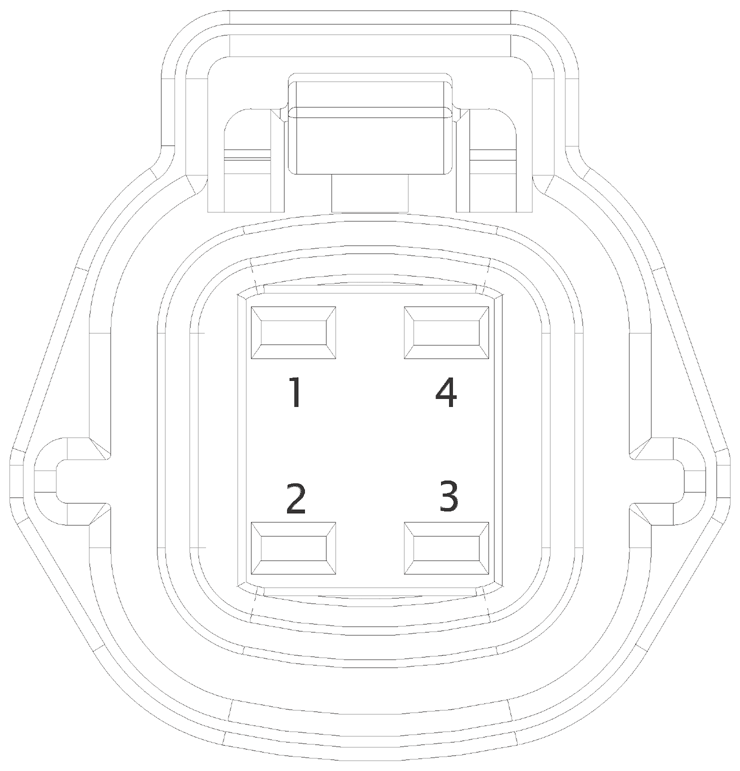

Fig 2: Connector End View - X508 [4/25/2019 - 10/20/2019]

Courtesy of TESLA, INC.

Color: GY

Serviceability: Terminal Pigtail
