Module - TPMS - Remove And Replace: Removal

  1. Remove the headliner Headliner (Remove And Replace) .

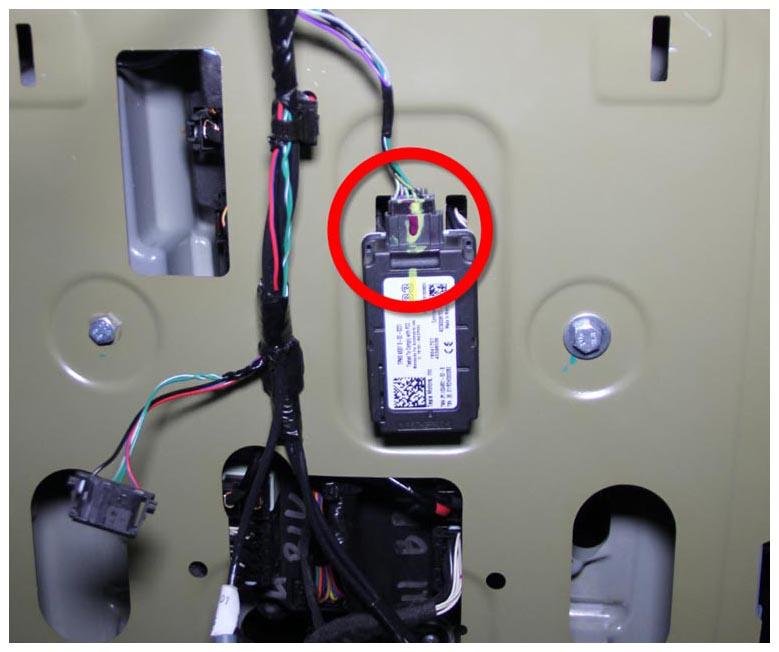

  2. Disconnect the harness from the TPMS module.
    G15207335Courtesy of TESLA, INC.
  3. Slide the TPMS module toward the front of the vehicle to release it from the spine closing plate.
  4. Remove the TPMS module from the vehicle.
