Connector End View - X520 [4/25/2019 - 10/20/2019]

Location:

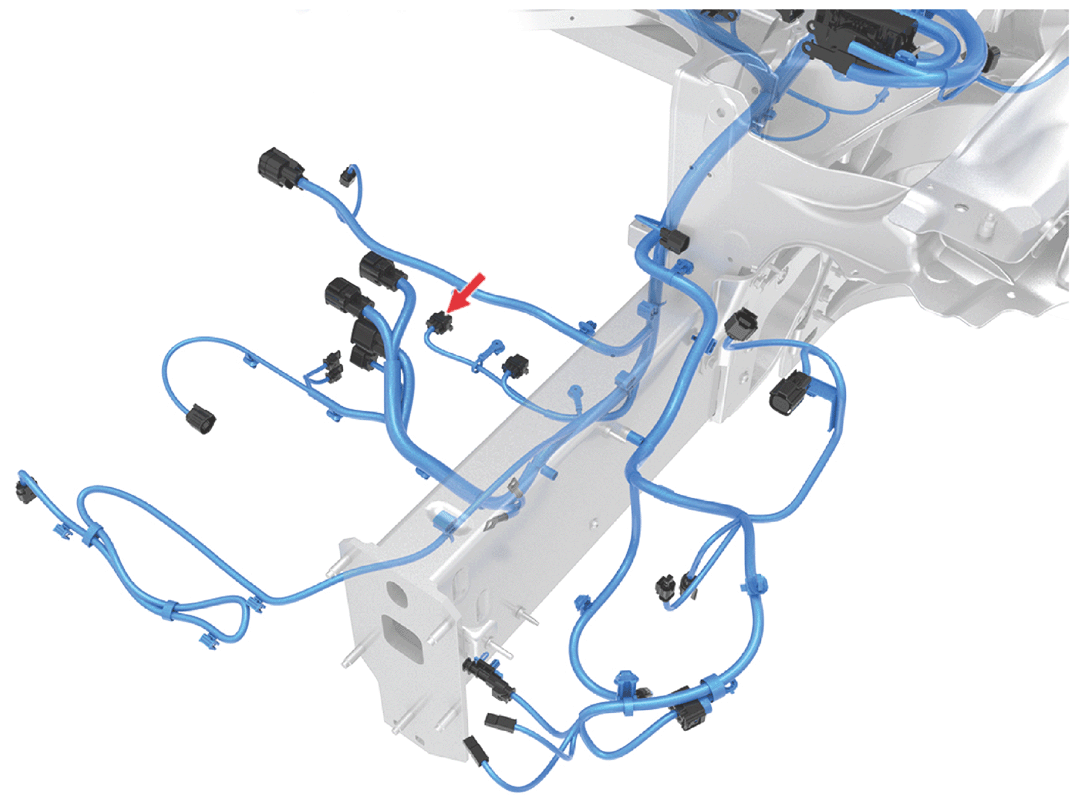

Fig 1: Connector Component Location - X520 [4/25/2019 - 10/20/2019]
G15221728Courtesy of TESLA, INC.

Connector Detail: DELPHI 35027669

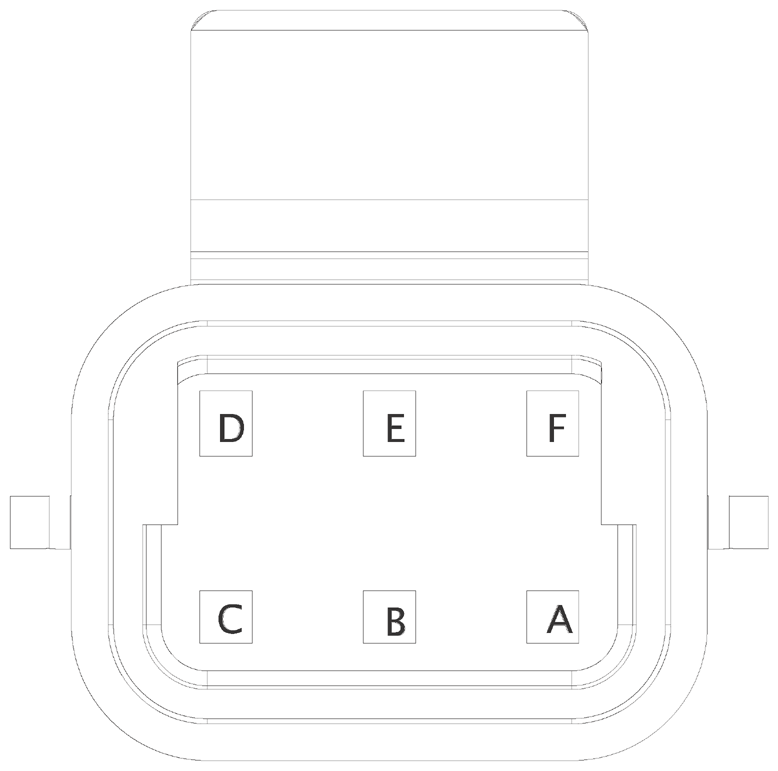

Fig 2: Connector End View - X520 [4/25/2019 - 10/20/2019]
G15221729Courtesy of TESLA, INC.

Color: BK

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination Terminal Seal
A     SN X500-15 12084200 15324974
B
C     SN GND_FR_LH1-1 12084200 15324974
D     SN X502-17 12084200 15324974
E
F     SN X502-7 12084200 15324974
