Sensor - Level - Windshield Washer Reservoir - Remove And Replace: Removal

  1. Remove the front LH upper wheel arch liner Wheel Arch Liner - Front - LH (Remove And Replace) .
  2. Position a container to collect any spillage.

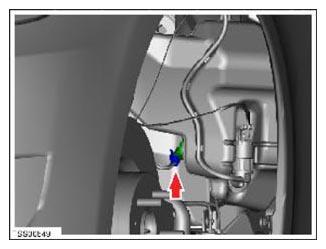

  3. Disconnect the level sensor connector.
    G15035206Courtesy of TESLA, INC.

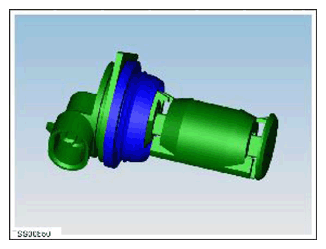

  4. Remove the level sensor from the washer reservoir.
    NOTE: Inspect the O-ring for damage and replace if necessary.
    G15035207Courtesy of TESLA, INC.
