Connector End View - X269 [3/5/2018 - 2/24/2019]

Location:

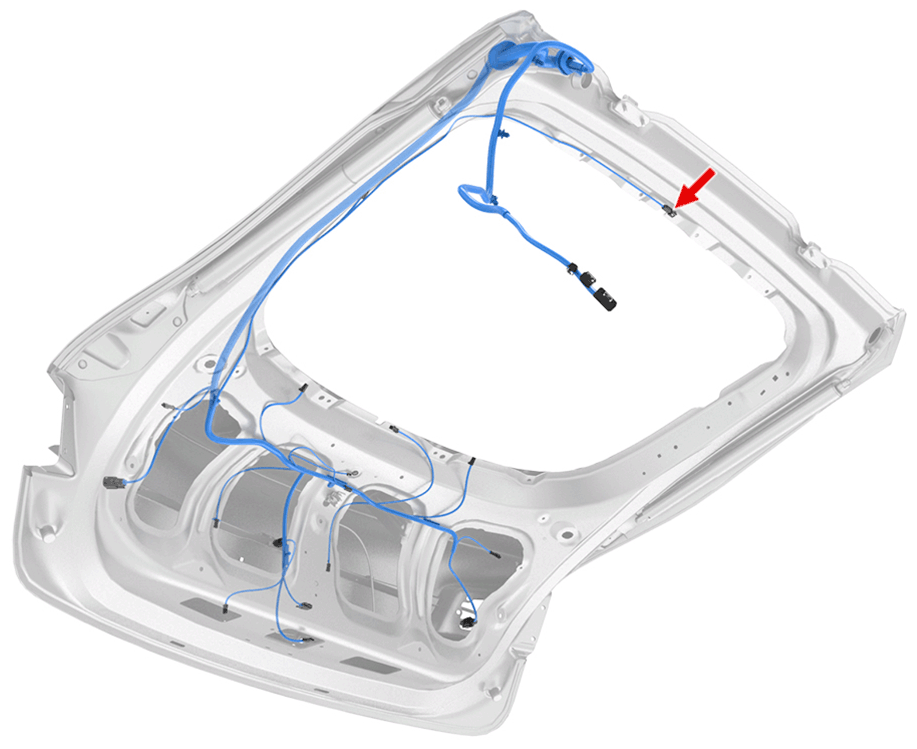

Fig 1: Connector Component Location - X269 [3/5/2018 - 2/24/2019]
G15014396Courtesy of TESLA, INC.

Connector Detail: DELPHI 12059252

Color: Red

Serviceability: Terminal Pigtail

Fig 2: Connector End View - X269 [3/5/2018 - 2/24/2019]
G15014397Courtesy of TESLA, INC.
Cavity Color Size Plate Destination Terminal Seal Service Part Depinning Tool
A WH/BK 0.5 SN X921F-11 DELPHI 12059894   1099473-00-A
B BK 0.5 SN Z46-GDL01-R DELPHI 12059894   1099473-00-A
Cavity Color Size Plate Destination Terminal Seal Service Part Depinning Tool
A WH/BK 0.5 SN X921F-11 DELPHI 12059894   1099473-00-A
B BK 0.5 SN Z46-GDL01-R DELPHI 12059894   1099473-00-A
