Seal - Steering - Dash - Remove And Replace: Removal

  1. Remove upper intermediate steering shaft, refer to Shaft - Steering Column - Intermediate Upper (Remove And Replace) .

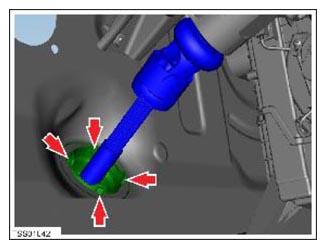

  2. Remove steering rack dash seal from shaft.
    G14981582Courtesy of TESLA, INC.
