Inductive Charger - Center Console - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the LH front door and lower the LH front window.

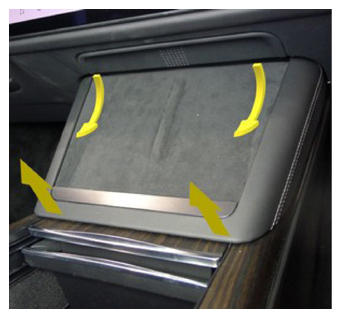

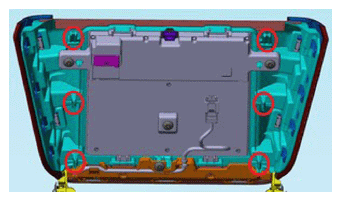

  2. Release the clips (x4) that attach the phone dock to the center console.
    NOTE: Pull up at the bottom of the phone dock and swing out from under the center console.
    G15084616Courtesy of TESLA, INC.
    G15084617Courtesy of TESLA, INC.

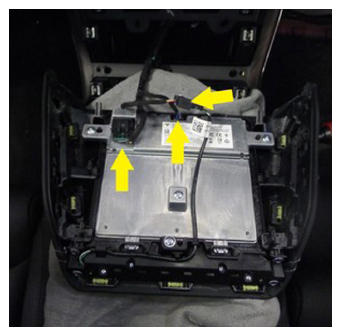

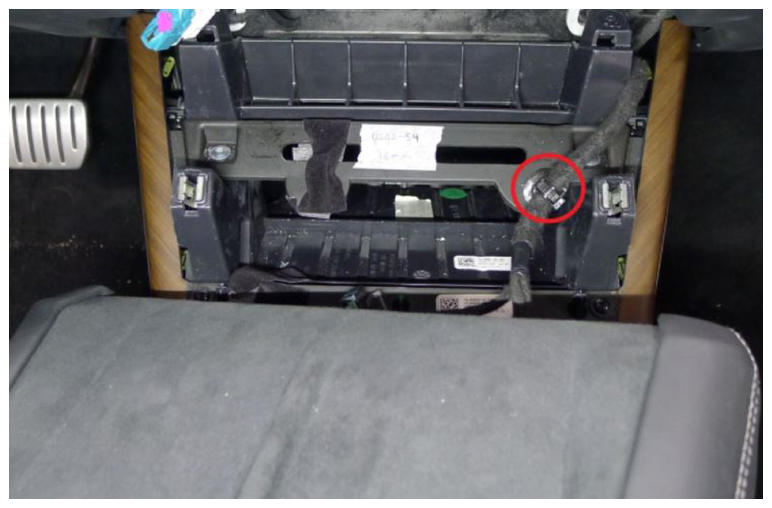

  3. Release the clip, then disconnect the electrical connectors (x3), and then remove the phone dock from the instrument panel.
    CAUTION: Release the connector locks before pulling straight out of each socket to avoid damage.
    G15084618Courtesy of TESLA, INC.
    G15084619Courtesy of TESLA, INC.

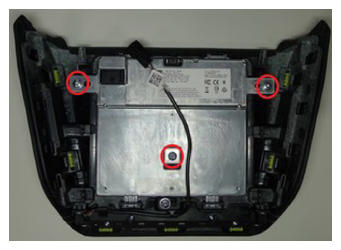

  4. Remove the screws (x3) that attach the inductive charger to the phone dock.

    1.2 N.m (.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G15084620Courtesy of TESLA, INC.

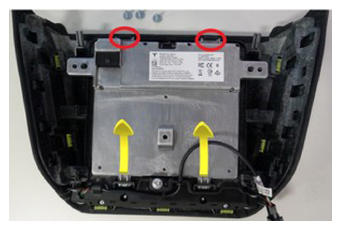

  5. Release the tabs (x2) at the top of the phone dock, and then remove the inductive charger from the phone dock.
    NOTE: Angle the inductive charger up and slide out of the phone dock.

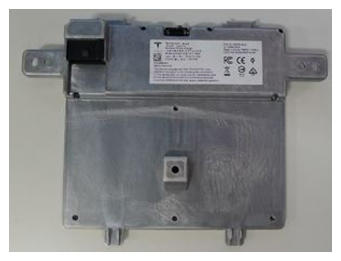

    G15084621Courtesy of TESLA, INC.
