Armrest - Center Console - Remove And Replace: Install
WARNING: This page is about a different car, the 2024 Tesla Model S, 2023 Tesla Model S, 2022 Tesla Model S, and 2021 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.

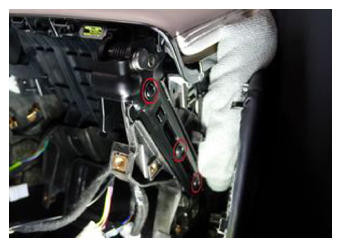

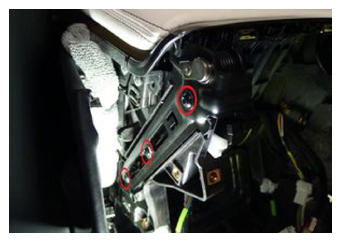

- Install the bolts (x6) that attach the center console armrest to the center console.
2.5 N.m (1.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

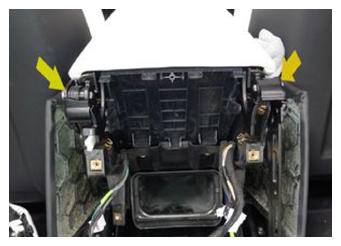

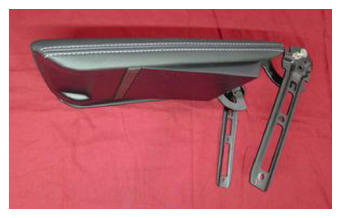

NOTE: Slide the armrest down and align the LH and RH side arms with the center console assembly. - Install the rear center console bright strip. See Bright Strip - Center Console - Rear (Remove And Replace) .
- Install the center console air wave assembly. See Air Wave Assembly - Center Console (Remove and Replace)
.NOTE: The Toolbox routine for the center console air wave does not need to be performed for this procedure.
- Install the center console lower rear panel. See Panel - Lower Rear - Center Console (Remove And Replace) .
- Restore the driver and front passenger seats back to their original position.
- Raise all the windows and close all the doors.
