Sensor - Radar - Front - Remove And Replace: Install

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.

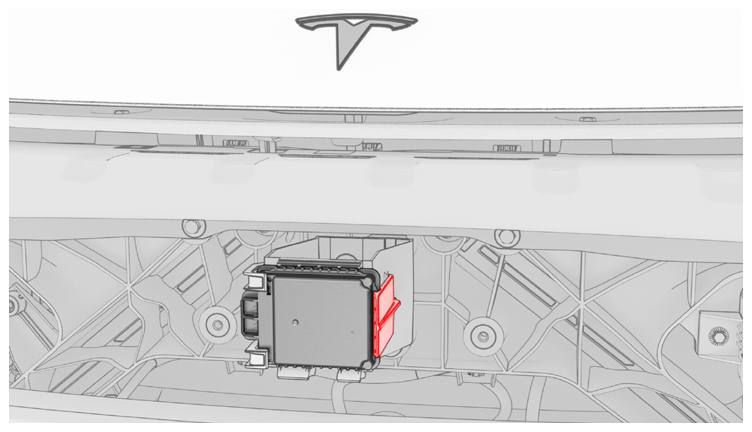

  1. Install the front radar sensor into the bracket.
    G14833791Courtesy of TESLA, INC.

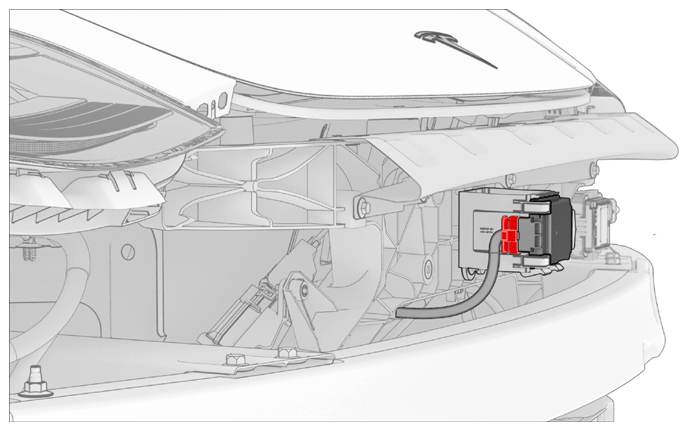

  2. Connect the front radar sensor electrical connector.
    G14833792Courtesy of TESLA, INC.
  3. Install the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .
  4. Reinstall the vehicle firmware. See SOFTWARE REINSTALL .
  5. Perform the front radar sensor calibration procedure. See SENSOR - RADAR - FRONT (CALIBRATION) .
