USB Cable - Center Console - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console. See Center Console (Remove and Install) .

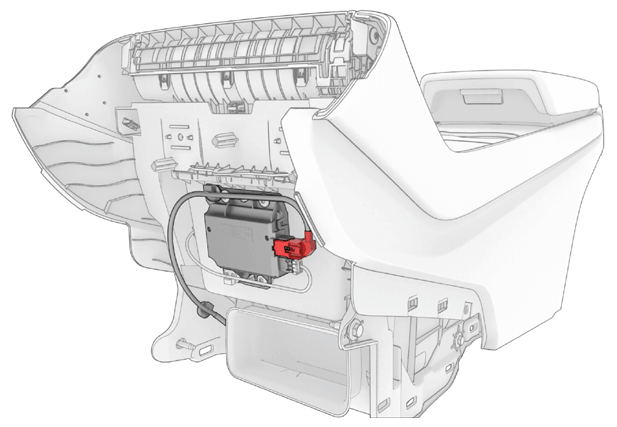

  2. Disconnect the electrical wiring harness connector from the USB hub.
    G14838909Courtesy of TESLA, INC.

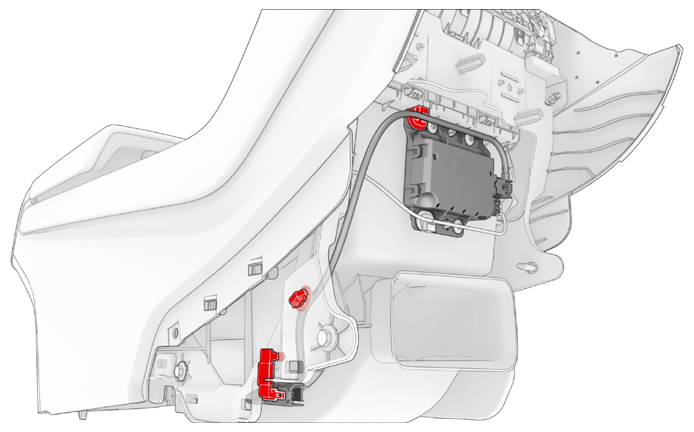

  3. Release the clips that attach the electrical harness to the USB hub.
    G14838910Courtesy of TESLA, INC.

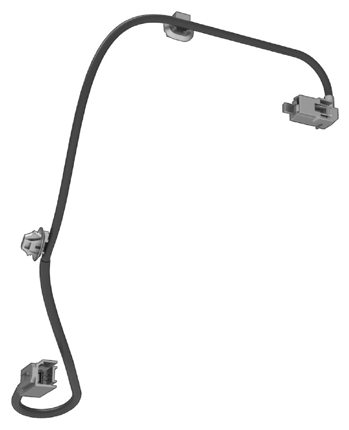

    G14838911Courtesy of TESLA, INC.
