Sliding Lid - Center Console - Remove And Replace: Remove

WARNING: This page is about a different car, the 2024 Tesla Model Y, 2023 Tesla Model Y, 2022 Tesla Model Y, 2021 Tesla Model Y, and 2020 Tesla Model Y. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This procedure is performed with the center console installed in the vehicle. Some images may show the center console outside of the vehicle, but that is only to provide more clarity on the fasteners and components.
  1. Open the LH and RH front doors and lower the LH and RH front windows.
  2. Move the driver and front passenger seats to the most rearward and lowest position.
  3. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  4. Disconnect LV power. See 12V/LV Power (Disconnect and Connect) .

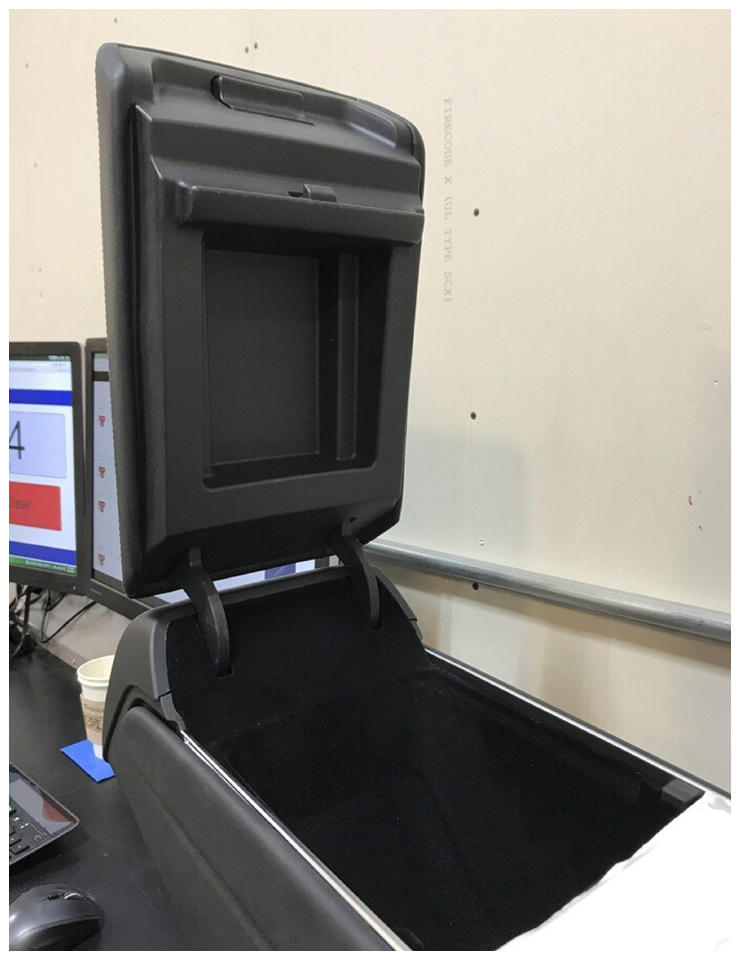

  5. Open the armrest.
    G14824565Courtesy of TESLA, INC.

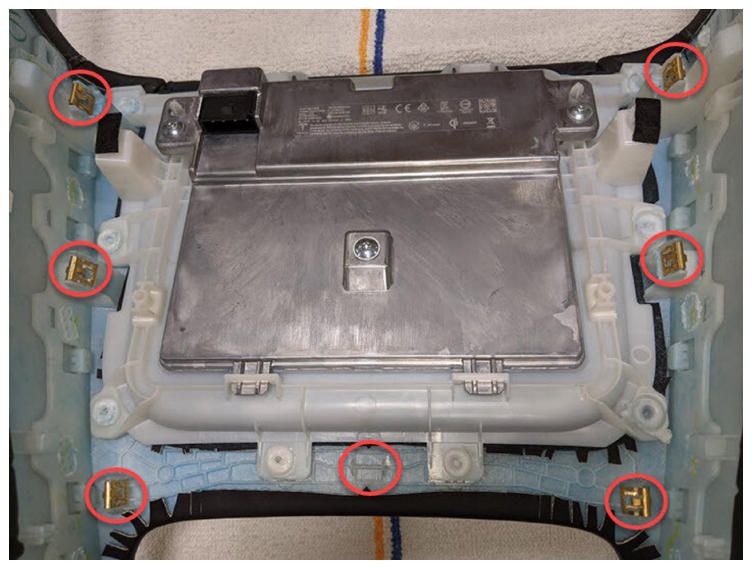

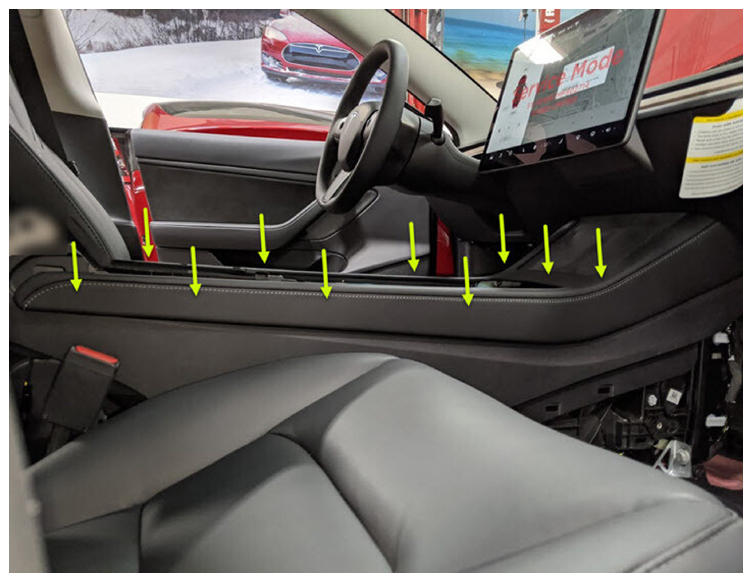

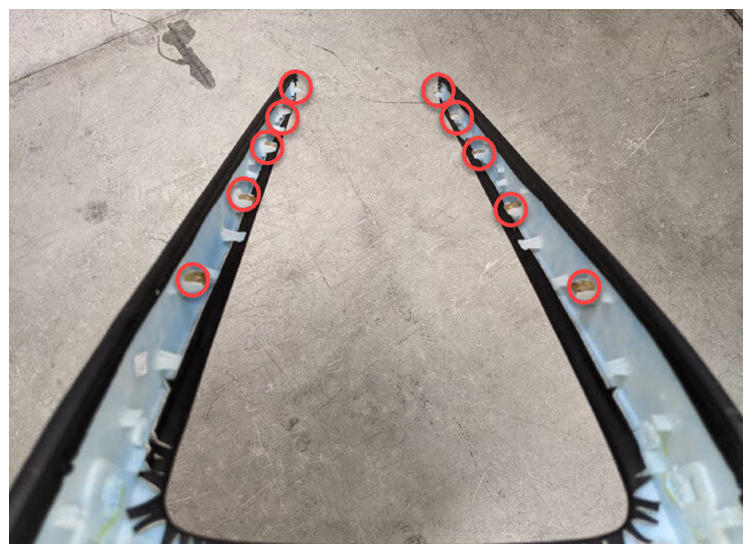

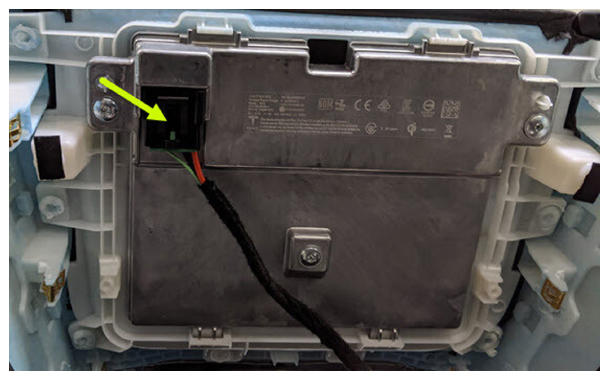

  6. Release the clips (x17) that attach the center console decor to the center console, then disconnect the electrical connector, and then remove the decor from the vehicle.
    NOTE: Release all surrounding clips, and then release front upper portion of the trim.
    G14824566Courtesy of TESLA, INC.
    G14824567Courtesy of TESLA, INC.
    G14824568Courtesy of TESLA, INC.
    G14824569Courtesy of TESLA, INC.

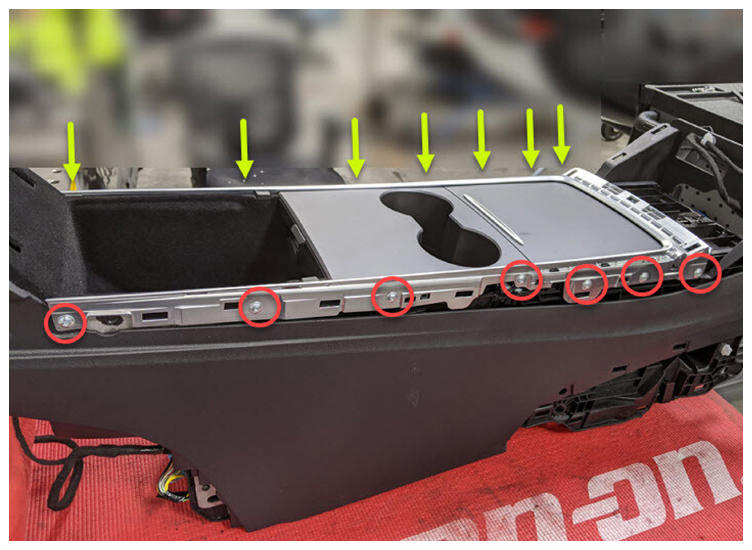

  7. Remove the bolts (x14) that attach the bright strip to the center console.

    1.6 N.m (1.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G14824570Courtesy of TESLA, INC.

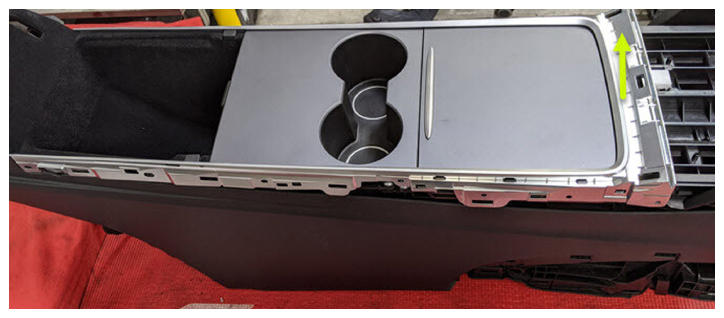

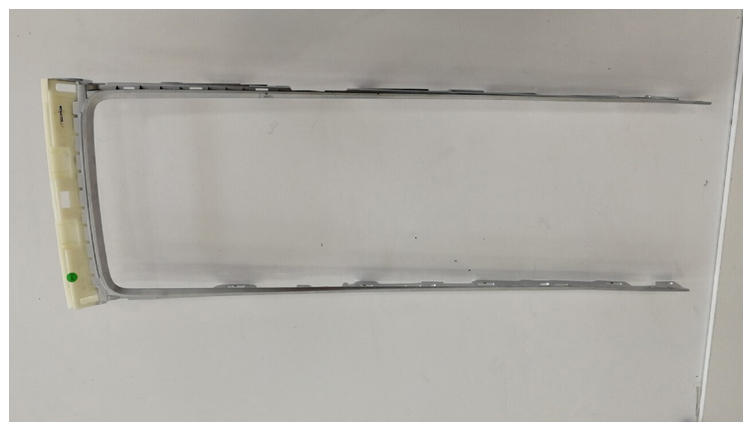

  8. Release the locating tabs (x12) that attach the bright strip to the center console, and then remove the bright strip from the vehicle.
    G14824571Courtesy of TESLA, INC.
    G14824572Courtesy of TESLA, INC.

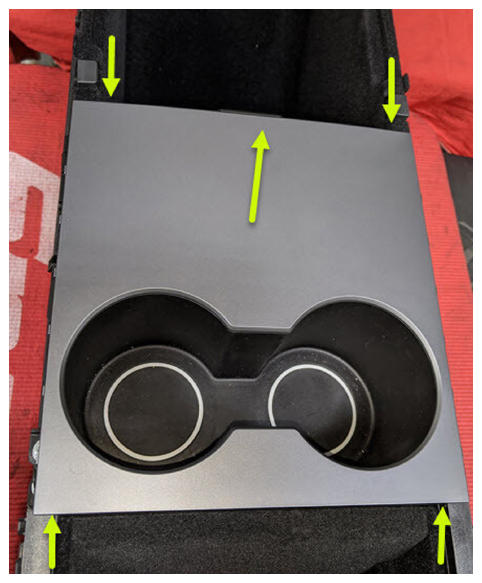

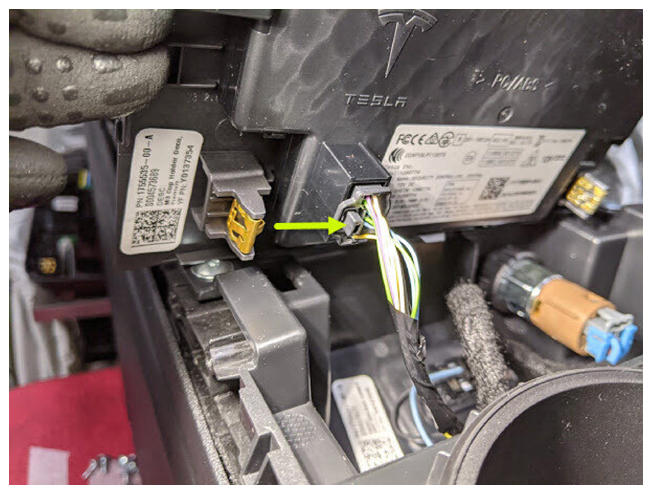

  9. Release the clips (x6) that attach the cup holder to the center console, and then disconnect the security body controller module electrical connector.
    G14824573Courtesy of TESLA, INC.
    G14824574Courtesy of TESLA, INC.

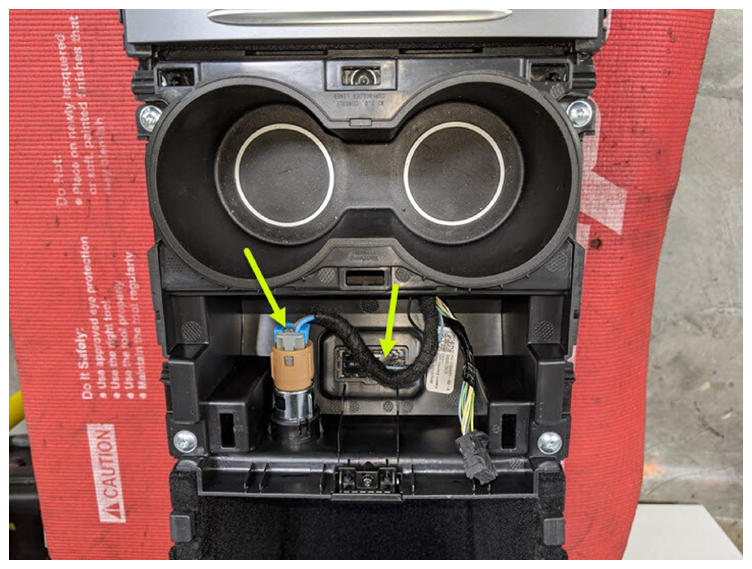

  10. Disconnect the cup holder electrical connectors (x2).
    G14824575Courtesy of TESLA, INC.
  11. Remove the screws (x4) that attach the cup holder to the center console.

    1.1 N.m (.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G14824576Courtesy of TESLA, INC.

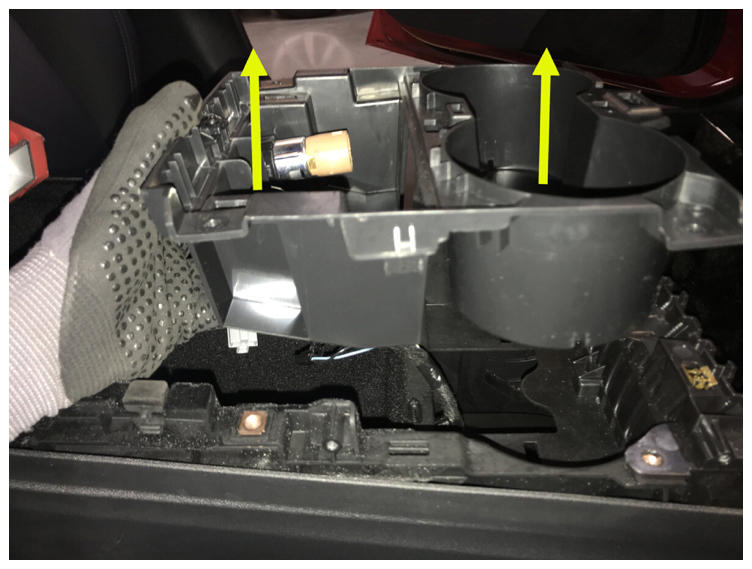

  12. Release the clips (x2) that attach the cup holder to the center console, and then remove cup holder from the vehicle.
    NOTE: Feed the electrical harness through the access hole.
    G14824577Courtesy of TESLA, INC.

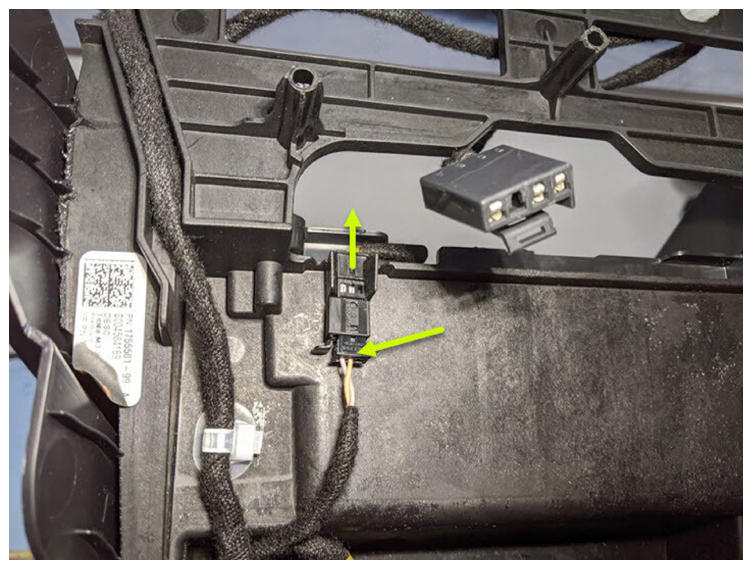

  13. Disconnect the sliding lid electrical connector, and release the tabs (x2) that attach sliding lid to the center console.
    CAUTION: Do not pull on the electrical connector wires.
    G14824578Courtesy of TESLA, INC.

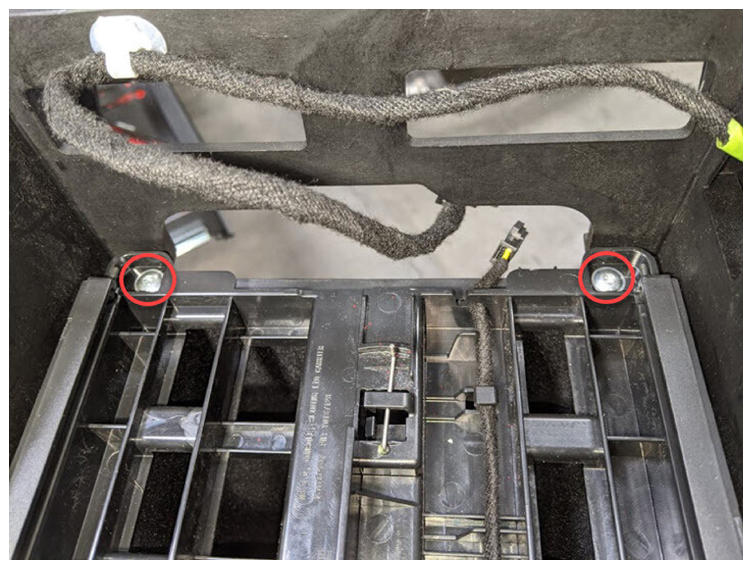

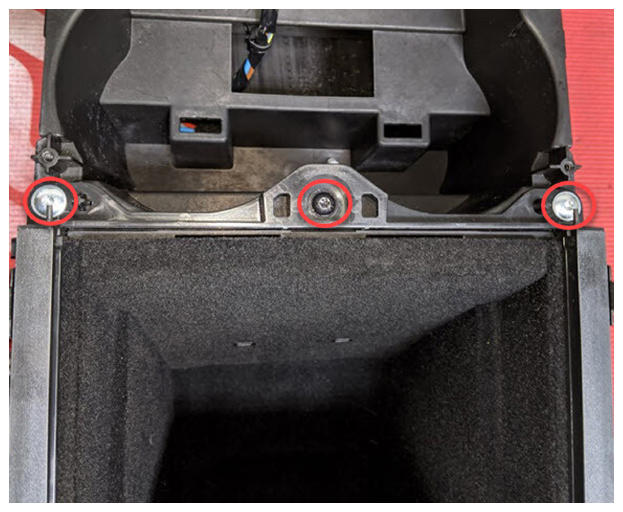

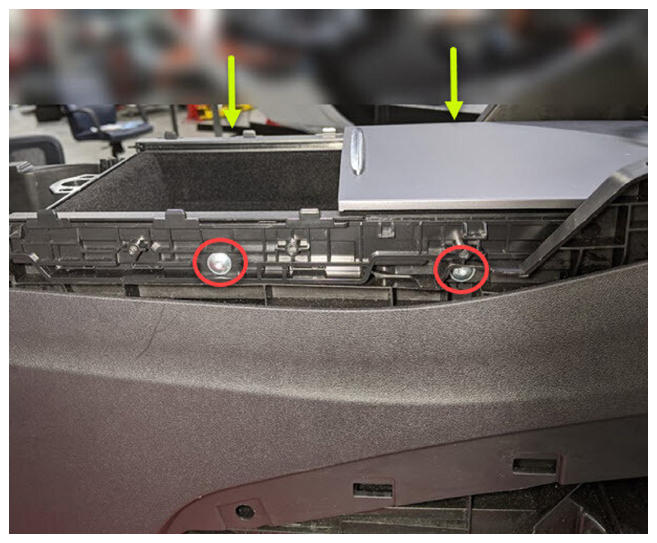

  14. Remove the screws (x9) that attach the sliding lid to the center console.

    1.1 N.m (.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    G14824579Courtesy of TESLA, INC.
    G14824580Courtesy of TESLA, INC.
    G14824581Courtesy of TESLA, INC.

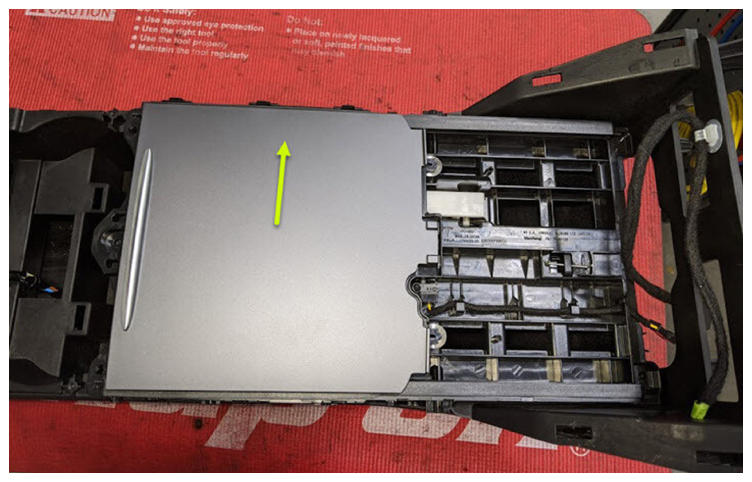

  15. Lift straight up to remove the sliding lid from the center console.
    G14824582Courtesy of TESLA, INC.
