USB Hub - Center Console - Front (2nd Generation) - Remove and Replace: Install

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.

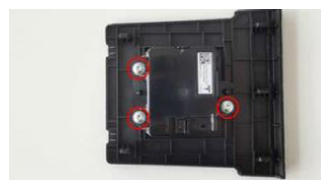

  1. Install the USB hub to the USB panel, and then install the screws that attach the hub to the panel.

    1.1 N.m (.8 ft-lbs)

    G14748502Courtesy of TESLA, INC.

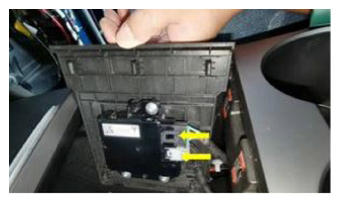

  2. Position the USB panel into the center console storage bin, and then connect the electrical harness to the USB hub connectors (x2).
    G14748503Courtesy of TESLA, INC.

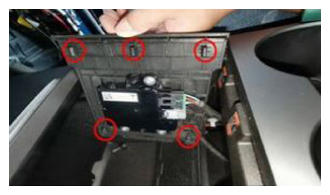

  3. Move the USB panel to the rear of the storage bin, and then fasten the clips (x5) that attach the USB panel to the rear of the storage bin.
    G14748504Courtesy of TESLA, INC.

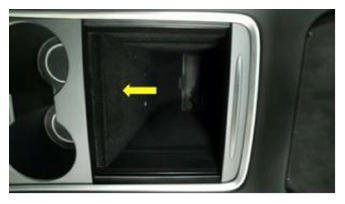

  4. Close the storage bin lid of the center console.
    G14748505Courtesy of TESLA, INC.
