Reservoir - Windshield Washer - Remove And Replace: Removal

  1. Remove the rear center underhood apron Underhood Apron - Rear (Remove And Replace) .
  2. Remove the plastic rivet that secures the reservoir neck to the suspension shock tower.
    G15035199Courtesy of TESLA, INC.
  3. Remove the washer pump from the reservoir, refer to PUMP - WINDSHIELD WASHER RESERVOIR (REMOVE AND REPLACE) .
  4. Remove the reservoir level sensor, refer to SENSOR - LEVEL - WINDSHIELD WASHER RESERVOIR (REMOVE AND REPLACE) .

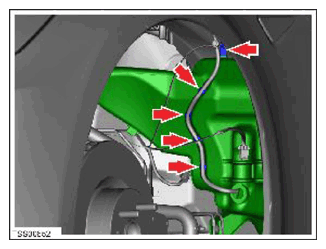

  5. Release the washer jet feed tube from the reservoir.
  6. Release the clips (x2) that secure the harness to the reservoir.
    G15035200Courtesy of TESLA, INC.

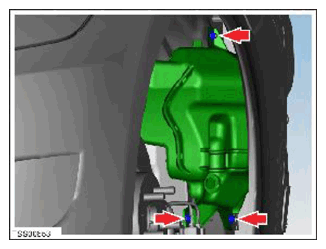

  7. Remove the fasteners (x3) that secure the reservoir to the body of the vehicle (torque 5 N.m).
    G15035201Courtesy of TESLA, INC.

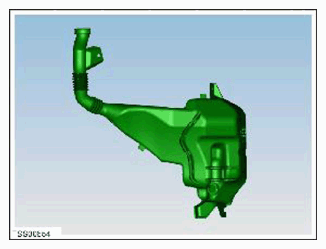

  8. Remove the reservoir from the vehicle by maneuvering it through the wheel well.
    G15035202Courtesy of TESLA, INC.
