Nozzle - Windshield Washer - Adjust: Adjust

  1. Open LH front door
  2. Lower LH front window
  3. Activate windshield washers and verify washer nozzle spray pattern

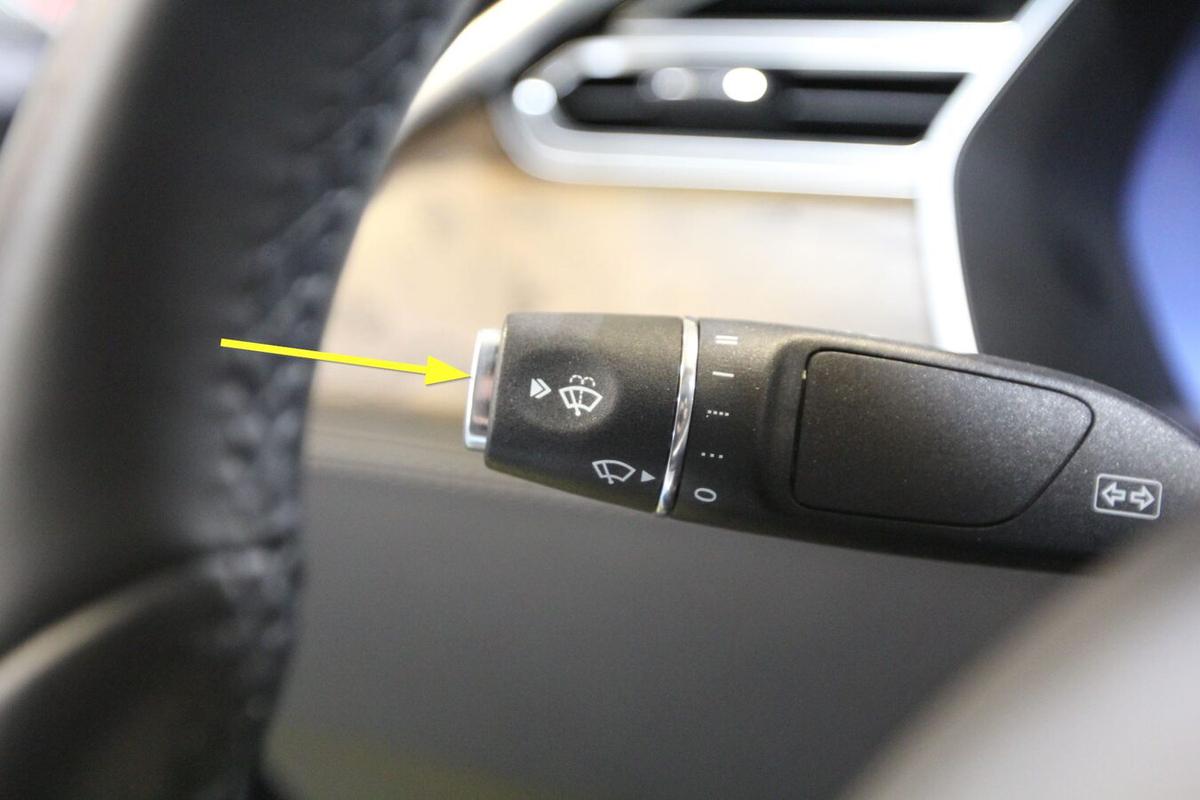

    G00624032Courtesy of TESLA, INC.

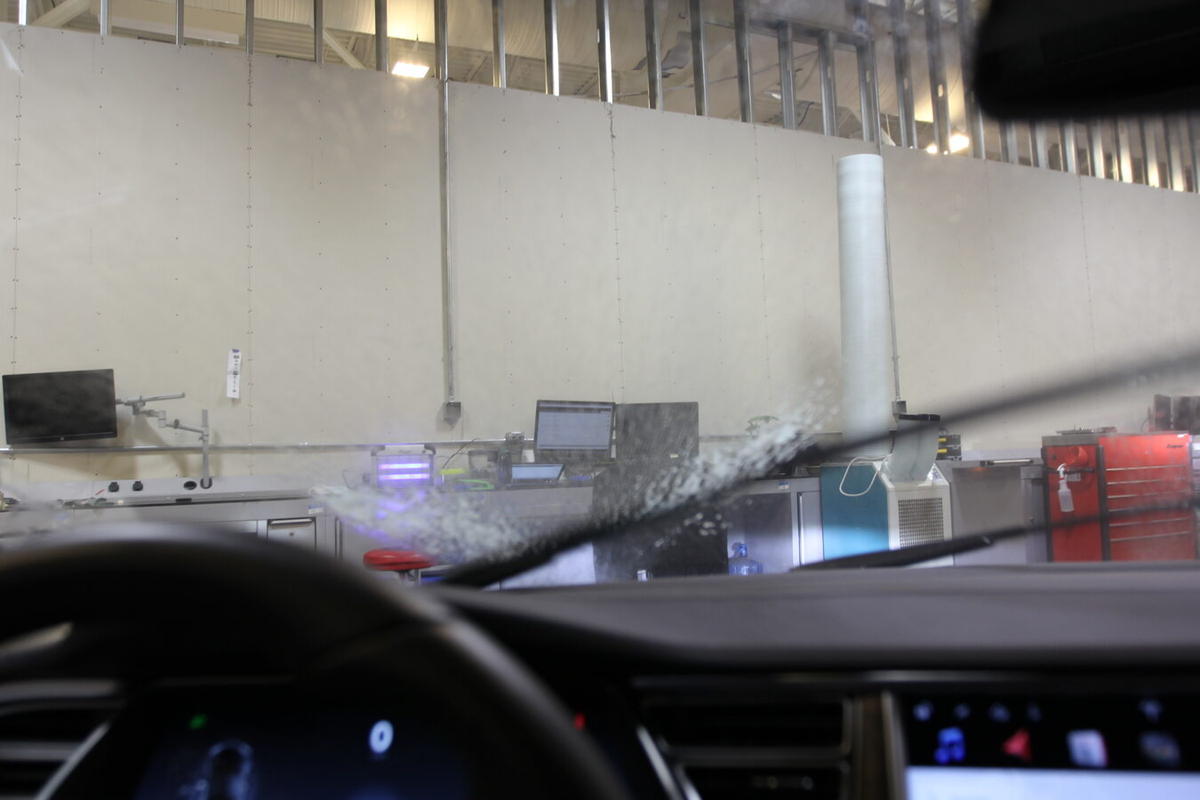

    G00624033Courtesy of TESLA, INC.
  4. Confirm the jets sprayed in the green zone.
    NOTE: If the jet spray is on-target, discontinue this procedure. If the spray is off-target, continue to the next step.

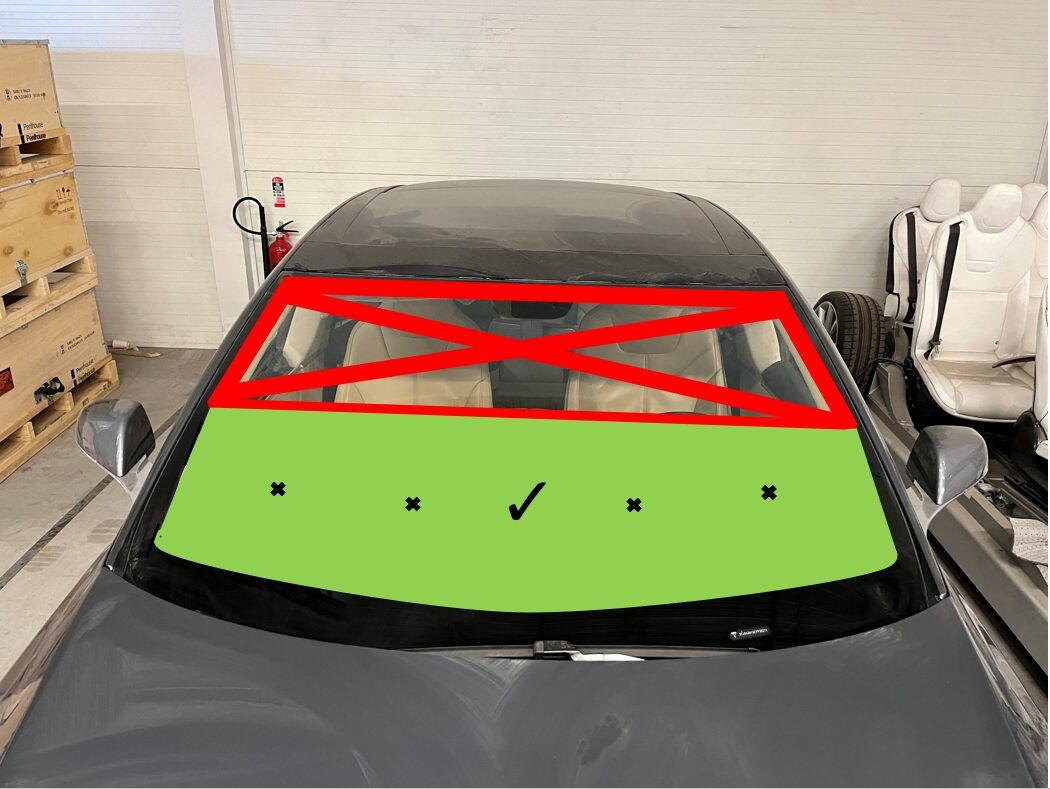

    G00624034Courtesy of TESLA, INC.
  5. Using a straight pick, adjust the washer nozzles.
    NOTE: Align the washer jet angle to between the middle of the windshield and 15 mm above the black border of dots (frit) along the bottom of the windshield (11 degrees +/- 1 degree).

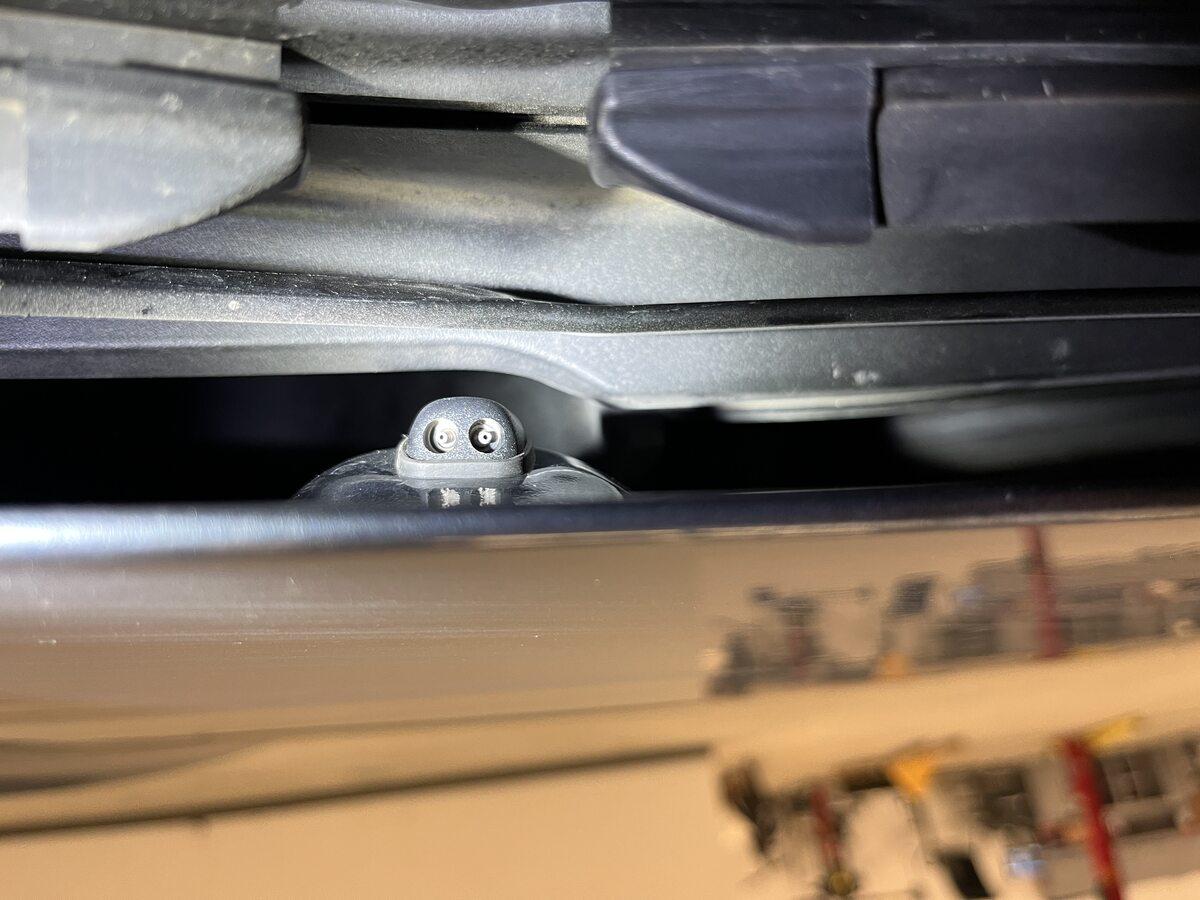

    G00624035Courtesy of TESLA, INC.

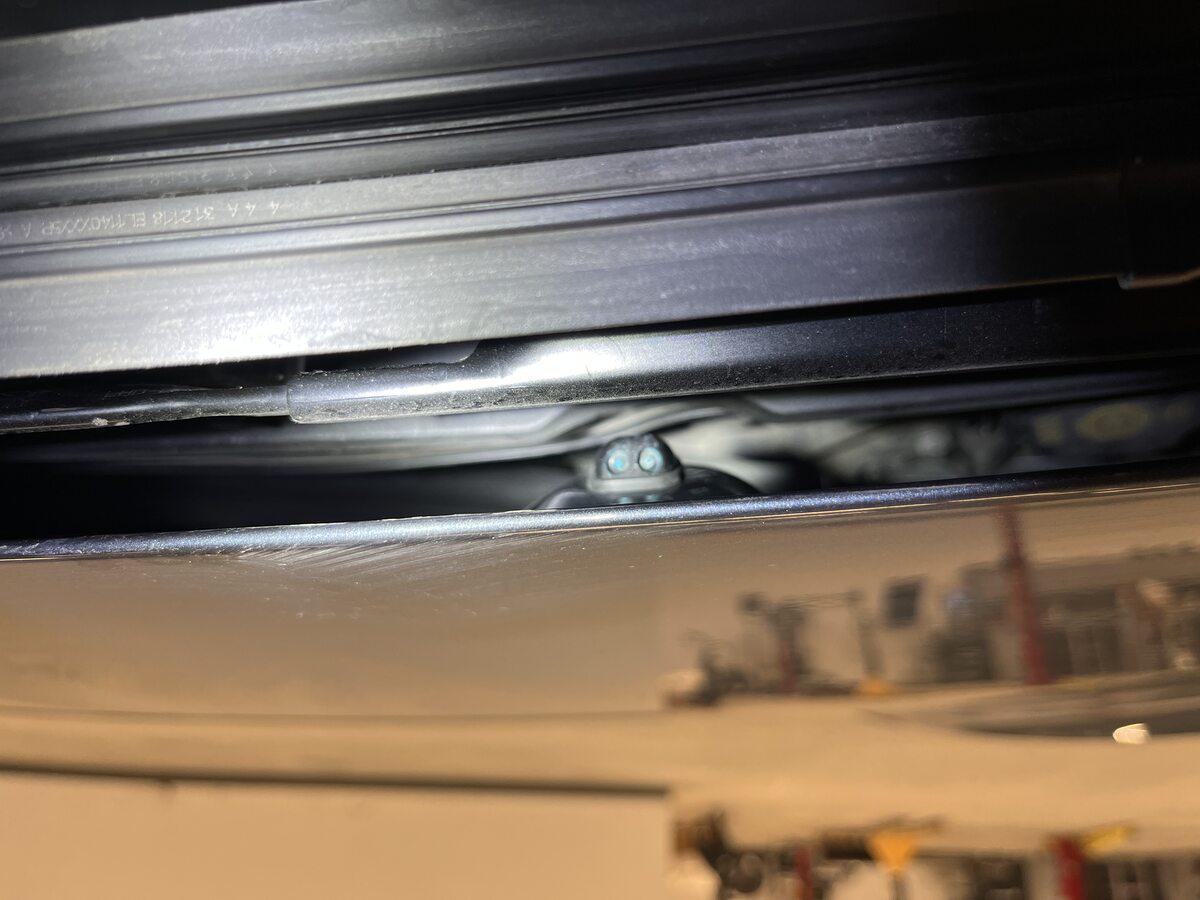

    G00624036Courtesy of TESLA, INC.

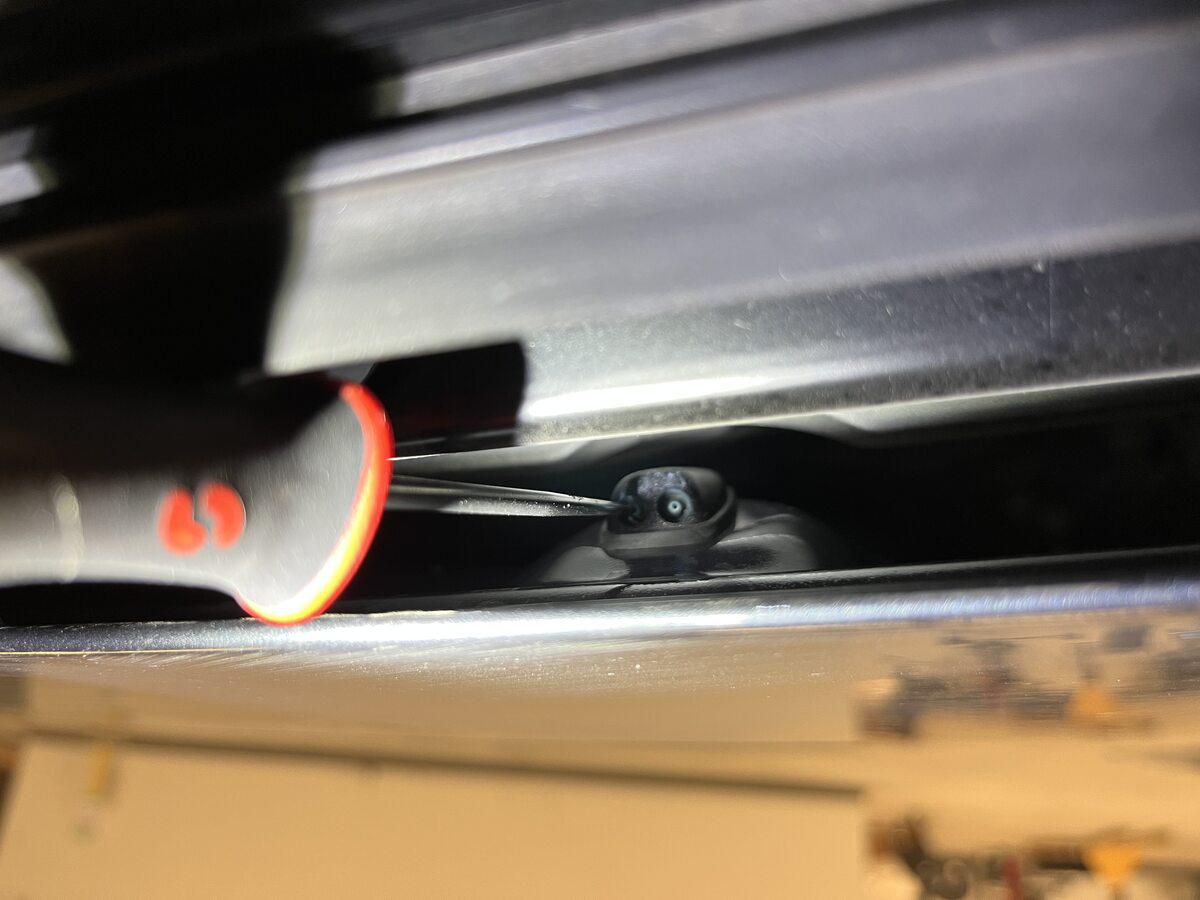

    G00624037Courtesy of TESLA, INC.
    G00624038Courtesy of TESLA, INC.
  6. Activate windshield washers and verify washer nozzle spray pattern
    G00624032Courtesy of TESLA, INC.
    G00624033Courtesy of TESLA, INC.
  7. Raise LH front window and close door
    G00624039Courtesy of TESLA, INC.
