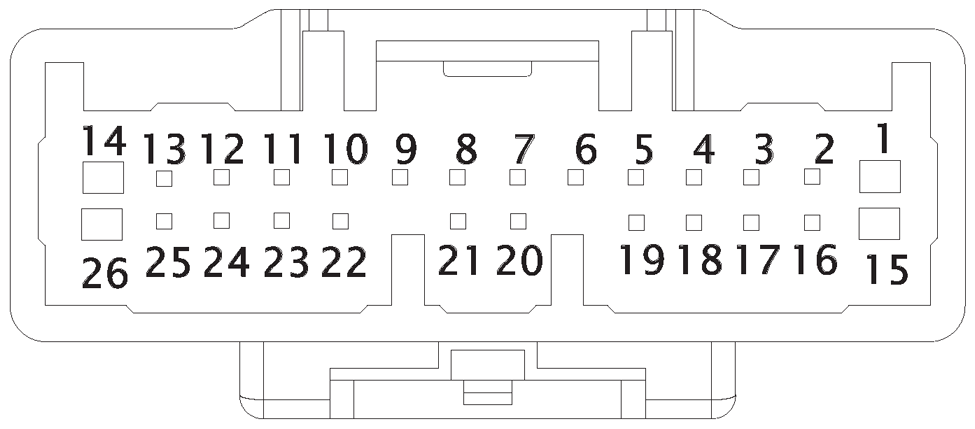

Connector End View - X954M [3/5/2018 - 2/24/2019]

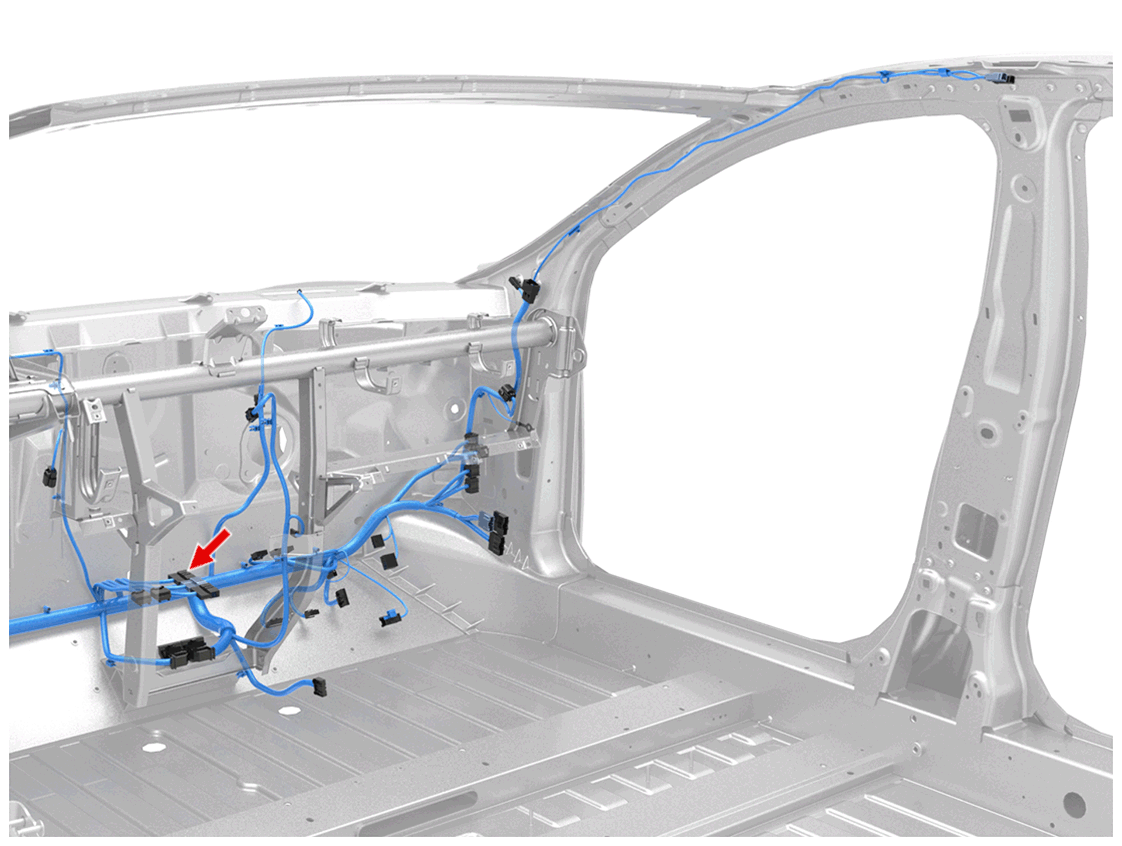

Location:

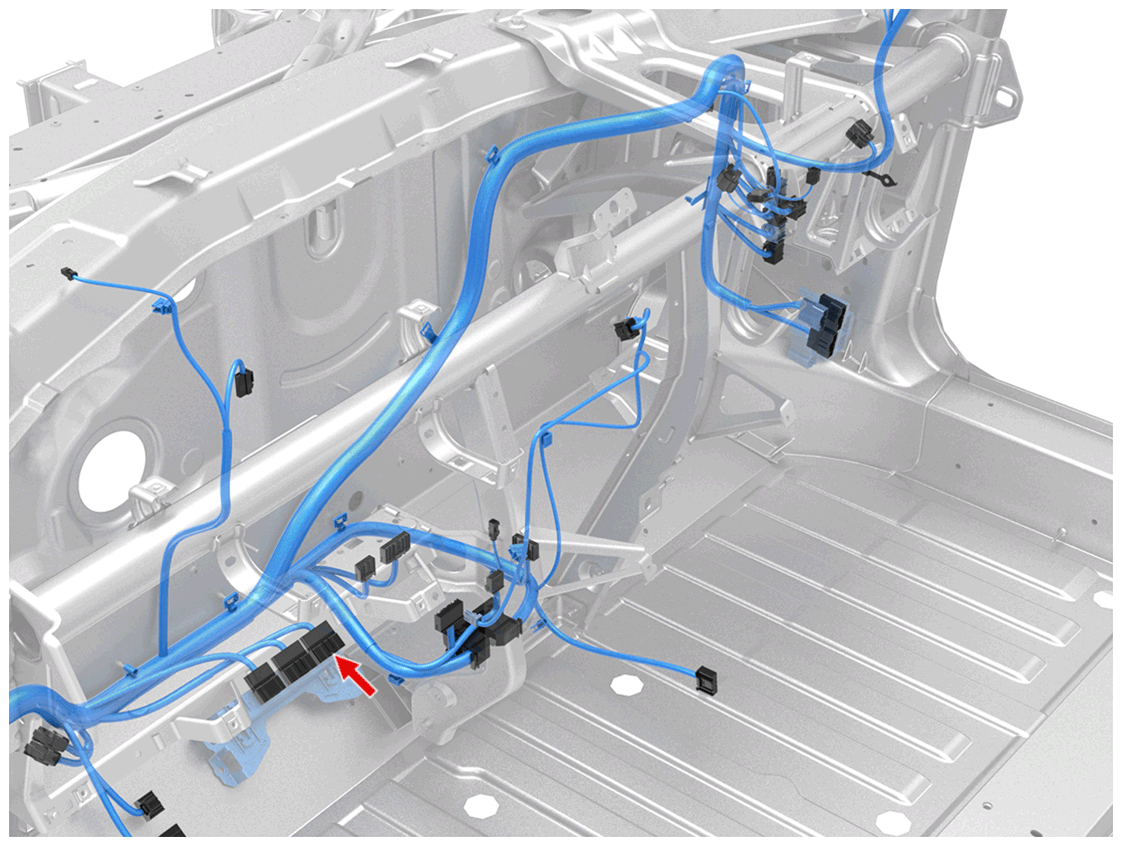

Location:
Connector Detail: YAZAKI 7286-1918-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD/YE | 0.5 | SN | X025-22 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 4 | RD | 0.5 | SN | X200-8 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 5 | RD/GN | 0.5 | SN | X200-26 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 6 | RD/BK | 0.5 | SN | X021-15 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 7 | SI | 0.35 | SN | X023-19 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 8 | RD/GY | 0.35 | SN | X259-3 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 10 | GN | 0.5 | SN | X201-7 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 11 | YE/WH | 0.5 | SN | X776-7 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 12 | RD/VT | 0.5 | SN | X024-7 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 13 | WH/BK | 0.5 | SN | X024-8 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 14 | RD/GN | 0.5 | SN | X024-15 | SUMITOMO 8230-4925 | 1099537-00-A | ||
| 15 | GY/WH | 0.5 | SN | X024-16 | SUMITOMO 8230-4925 | 1099537-00-A | ||
| 16 | WH | 0.35 | SN | X259-4 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 17 | BK/VT | 0.35 | SN | X948M-15 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 18 | VT/WH | 0.5 | SN | X200-17 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 19 | BN/WH | 0.5 | SN | X200-35 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 20 | RD | 0.35 | SN | X023-18 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 21 | BK | 0.35 | SN | X023-5 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 22 | VT | 0.5 | SN | X201-8 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 23 | YE | 0.5 | SN | X776-18 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 25 | VT | 0.35 | SN | X021-2 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 26 | RD/WH | 1.5 | SN | X259-1 | SUMITOMO 8230-4923 | 1099534-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 2 | RD/YE | 0.5 | SN | X025-22 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 4 | RD | 0.5 | SN | X200-8 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 5 | RD/GN | 0.5 | SN | X200-26 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 6 | RD/BK | 0.5 | SN | X021-15 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 7 | SI | 0.35 | SN | X023-19 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 8 | RD/GY | 0.35 | SN | X259-3 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 10 | GN | 0.5 | SN | X201-7 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 11 | YE/WH | 0.5 | SN | X776-7 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 12 | RD/VT | 0.5 | SN | X024-7 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 13 | WH/BK | 0.5 | SN | X024-8 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 14 | RD/GN | 0.5 | SN | X024-15 | SUMITOMO 8230-4925 | 1099537-00-A | ||
| 15 | GY/WH | 0.5 | SN | X024-16 | SUMITOMO 8230-4925 | 1099537-00-A | ||
| 16 | WH | 0.35 | SN | X259-4 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 17 | BK/VT | 0.35 | SN | X948M-15 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 18 | VT/WH | 0.5 | SN | X200-17 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 19 | BN/WH | 0.5 | SN | X200-35 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 20 | RD | 0.35 | SN | X023-18 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 21 | BK | 0.35 | SN | X023-5 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 22 | VT | 0.5 | SN | X201-8 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 23 | YE | 0.5 | SN | X776-18 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 25 | VT | 0.35 | SN | X021-2 | SUMITOMO 8100-3623 | 1099529-00-A | ||
| 26 | RD/WH | 1.5 | SN | X259-1 | SUMITOMO 8230-4923 | 1099534-00-A |
