Connector End View - X909F [2/24/2019 - 12/7/2019]

Location:

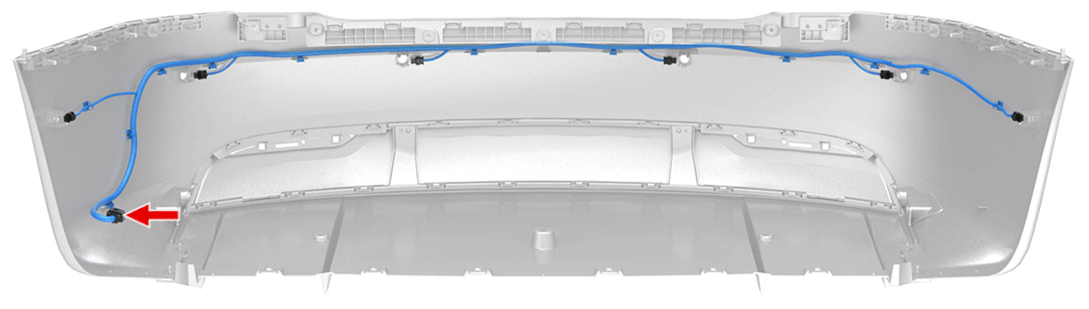

Fig 1: Connector Component Location - X909F [2/24/2019 - 12/7/2019]
G15015855Courtesy of TESLA, INC.

Connector Detail: MOLEX 33472-1201

Color: BK

Serviceability: Terminal Pigtail

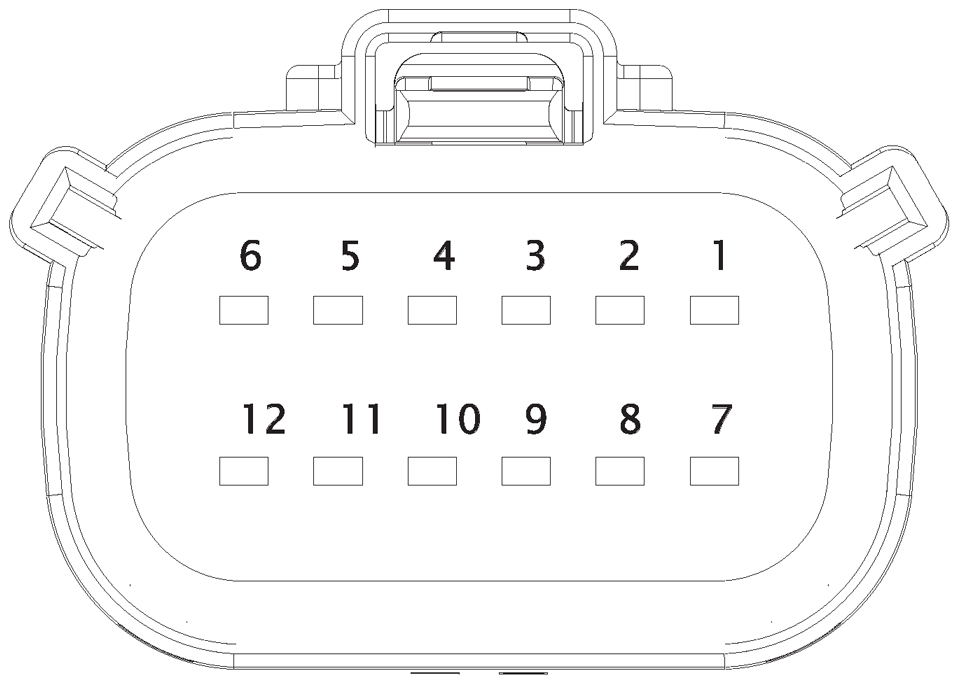

Fig 2: Connector End View - X909F [2/24/2019 - 12/7/2019]
G15015856Courtesy of TESLA, INC.
Cavity Color Size Plate Destination Terminal Seal Service Part Depinning Tool
1 RD/YE 0.5 SN Z37-PDR12_R-L MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
2 BK 0.5 SN Z28-GDG08-L MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
3 VT/WH 0.5 SN X763-6 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
4 VT 0.5 SN X763-3 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
5 GN/WH 0.35 SN Z50-WPA21-L MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
6 RD/WH 0.35 SN X121A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
7 OG 0.35 SN X122A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
8 WH 0.35 SN X123A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
9 YE/WH 0.35 SN X124A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
10 BK/WH 0.35 SN Z51-WPA22-L MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
11 BU/WH 0.35 SN X134A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
12 BN 0.35 SN X135A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
Cavity Color Size Plate Destination Terminal Seal Service Part Depinning Tool
1 RD/YE 0.5 SN Z37-PDR12_R-L MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
2 BK 0.5 SN Z28-GDG08-L MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
3 VT/WH 0.5 SN X763-6 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
4 VT 0.5 SN X763-3 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
5 GN/WH 0.35 SN Z50-WPA21-L MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
6 RD/WH 0.35 SN X121A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
7 OG 0.35 SN X122A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
8 WH 0.35 SN X123A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
9 YE/WH 0.35 SN X124A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
10 BK/WH 0.35 SN Z51-WPA22-L MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
11 BU/WH 0.35 SN X134A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
12 BN 0.35 SN X135A-2 MOLEX 33012-3003 TESLA MAT-120-240 1099515-00-A 1116485-00-A
