Connector End View - X809M [2/24/2019 - 12/7/2019]

Location:

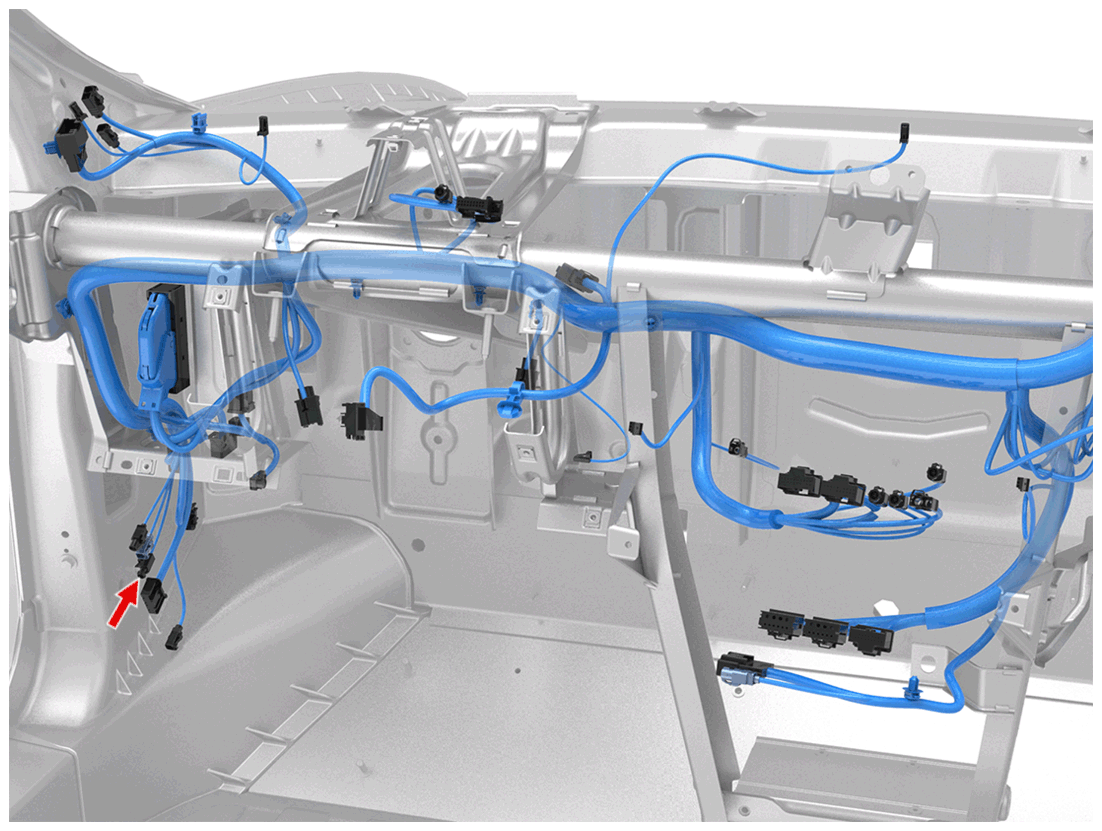

Fig 1: Connector Component Location - X809M [2/24/2019 - 12/7/2019]
G15015726Courtesy of TESLA, INC.

Connector Detail: ROSENBERGER 59Z118-C00-D

Color: BO

Serviceability: Cable Subassembly

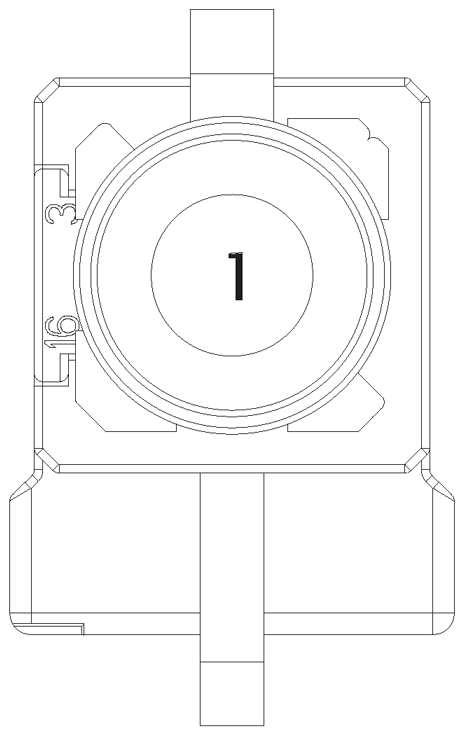

Fig 2: Connector End View - X809M [2/24/2019 - 12/7/2019]
G15015727Courtesy of TESLA, INC.
Cavity Color Size Plate Destination Terminal Seal Service Part Depinning Tool
1 BK D302 AU X802-1 - - -
Cavity Color Size Plate Destination Terminal Seal Service Part Depinning Tool
1 BK D302 AU X802-1 - - -
