Connector End View - X213M [2/24/2019 - 12/7/2019]

Location:

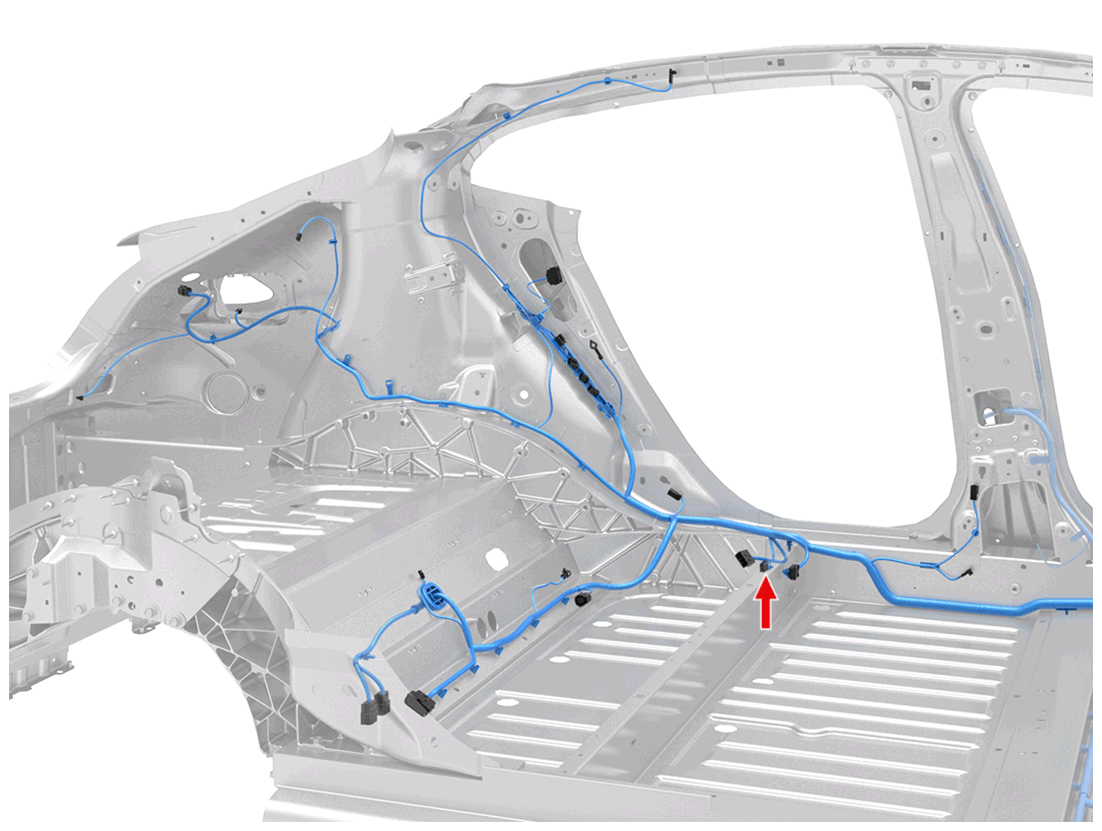

Fig 1: Connector Component Location - X213M [2/24/2019 - 12/7/2019]
G15015292Courtesy of TESLA, INC.

Connector Detail: AMP 174929-2

Color: BK

Serviceability: Terminal Pigtail

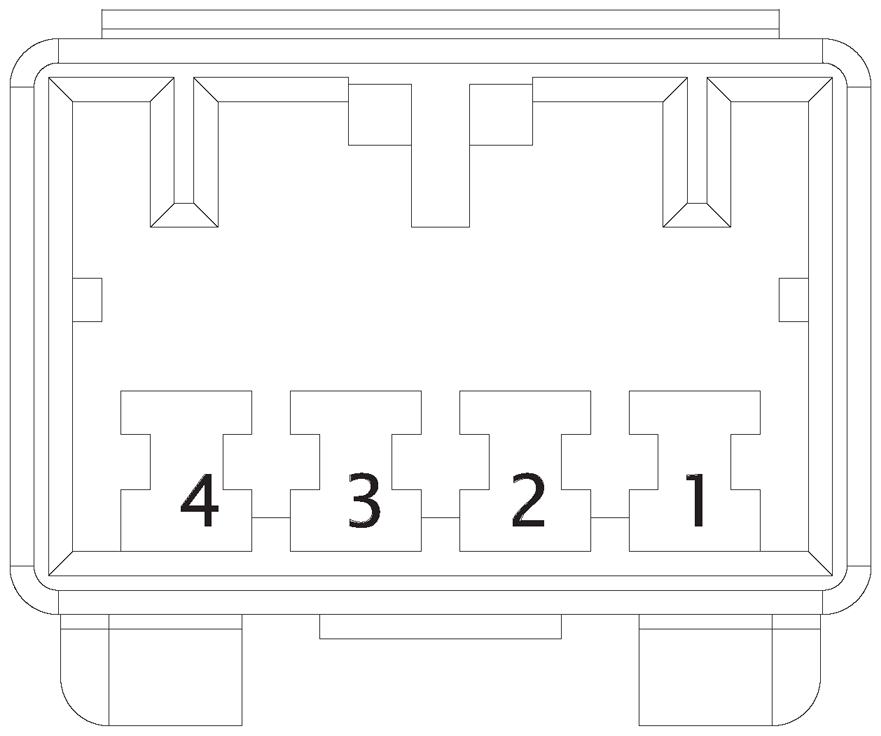

Fig 2: Connector End View - X213M [2/24/2019 - 12/7/2019]
G15015293Courtesy of TESLA, INC.
Cavity Color Size Plate Destination Terminal Seal Service Part Depinning Tool
1 WH/RD 0.35 SN X200-26 AMP 173633-2   1099445-00-A
2 WH/BU 0.35 SN X200-37 AMP 173633-2   1099445-00-A
Cavity Color Size Plate Destination Terminal Seal Service Part Depinning Tool
1 WH/RD 0.35 SN X200-26 AMP 173633-2   1099445-00-A
2 WH/BU 0.35 SN X200-37 AMP 173633-2   1099445-00-A
