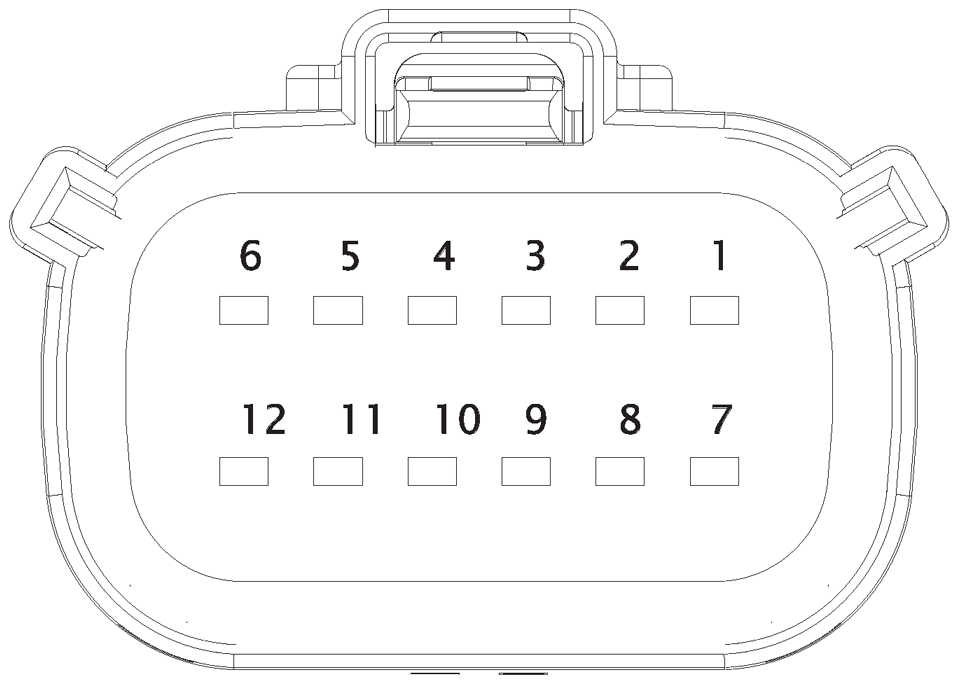

Connector End View - X040 [2/24/2019 - 12/7/2019]

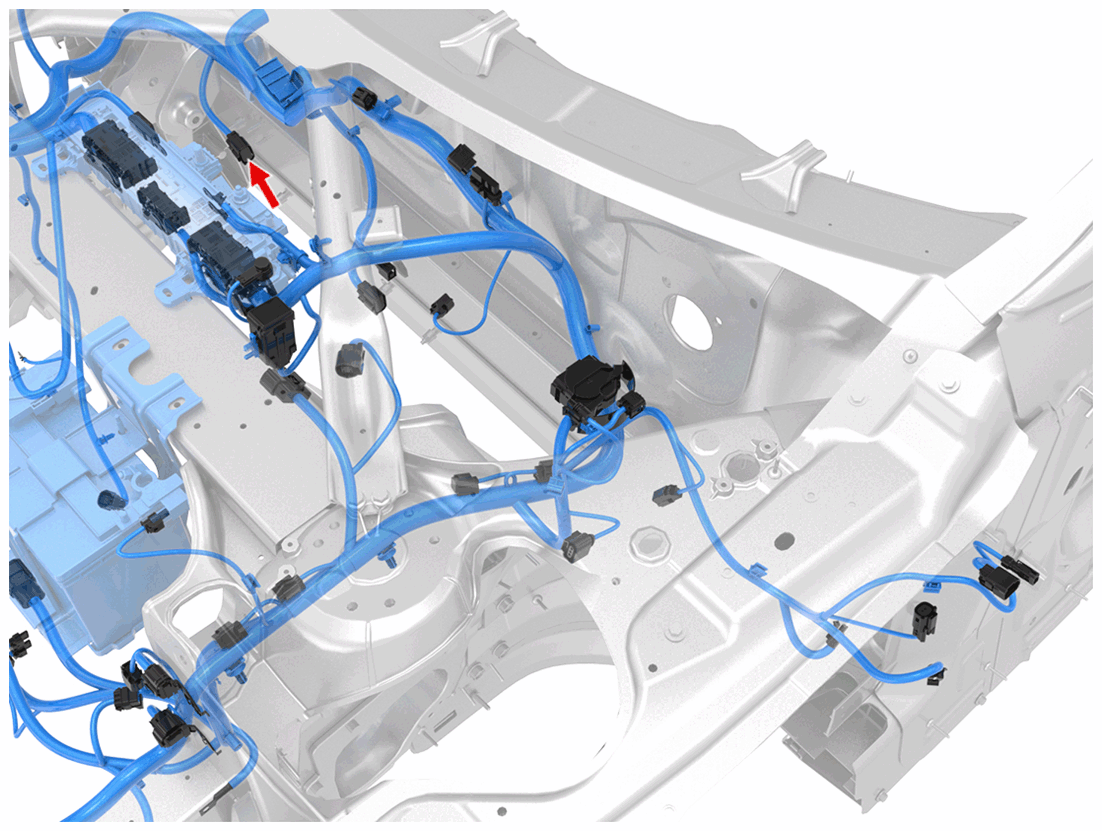

Location:
Connector Detail: MOLEX 33472-1201
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 4 | RD/BU | 0.5 | SN | X563-15 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | RD | 0.5 | SN | X052-12 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 6 | BU | 0.5 | SN | X052-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 10 | BK | 0.5 | SN | G520-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 11 | YE | 0.5 | X255-11 | |||||
| 11 | YE | 0.5 | X995F-19 | |||||
| 12 | RD/YE | 0.5 | SN | X041-8 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| Cavity | Color | Size | Plate | Destination | Terminal | Seal | Service Part | Depinning Tool |
|---|---|---|---|---|---|---|---|---|
| 4 | RD/BU | 0.5 | SN | X563-15 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 5 | RD | 0.5 | SN | X052-12 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 6 | BU | 0.5 | SN | X052-2 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 10 | BK | 0.5 | SN | G520-1 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
| 11 | YE | 0.5 | X255-11 | |||||
| 11 | YE | 0.5 | X995F-19 | |||||
| 12 | RD/YE | 0.5 | SN | X041-8 | MOLEX 33012-3003 | TESLA MAT-120-240 | 1099515-00-A | 1116485-00-A |
