Connector End View - X413 [2/24/2019 - 12/7/2019]

Location:

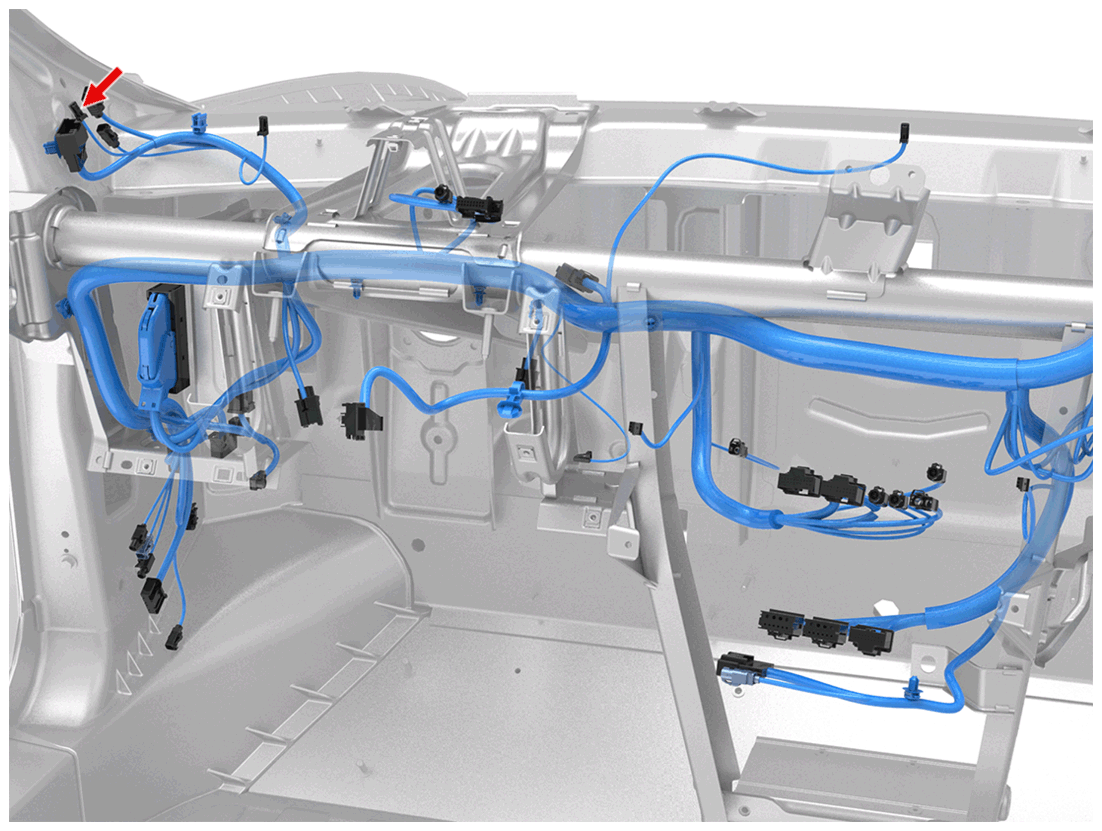

Fig 1: Connector Component Location - X413 [2/24/2019 - 12/7/2019]

Courtesy of TESLA, INC.

Connector Detail: AMP 1-1534113-1

Color: BK

Serviceability: Terminal Pigtail

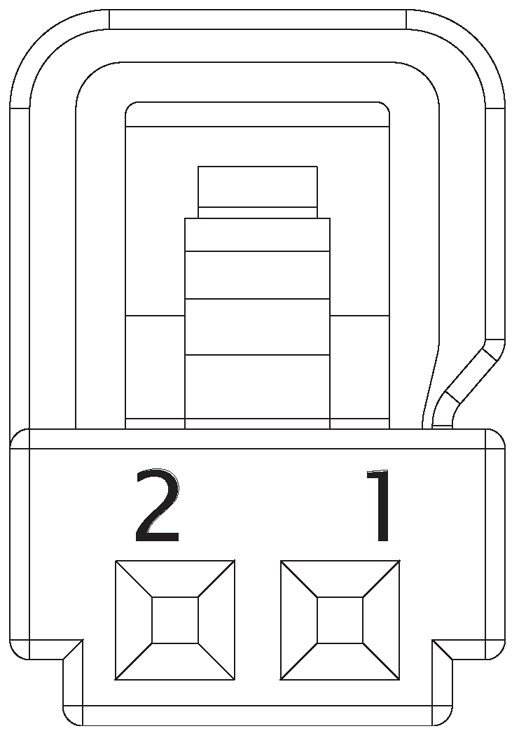

Fig 2: Connector End View - X413 [2/24/2019 - 12/7/2019]

Courtesy of TESLA, INC.

Cavity	Color	Size	Plate	Destination	Terminal	Service Part
1	BU/WH	0.75	SN	X426-3	AMP 5-963715-1	1099458-00-A
1	BU/WH	0.75	SN	Z66-AUD13-L	AMP 5-963715-1	1099458-00-A
2	BU	0.75	SN	X426-4	AMP 5-963715-1	1099458-00-A
2	BU	0.75	SN	Z67-AUD14-R	AMP 5-963715-1	1099458-00-A

Cavity	Color	Size	Plate	Destination	Terminal	Service Part
1	BU/WH	0.75	SN	X426-3	AMP 5-963715-1	1099458-00-A
1	BU/WH	0.75	SN	Z66-AUD13-R	AMP 5-963715-1	1099458-00-A
2	BU	0.75	SN	X426-4	AMP 5-963715-1	1099458-00-A
2	BU	0.75	SN	Z67-AUD14-L	AMP 5-963715-1	1099458-00-A
