Spoke Cover - Steering Wheel - Lower - Remove and Replace: Remove
- Remove the driver airbag. See AIRBAG - DRIVER (REMOVE AND REPLACE) .

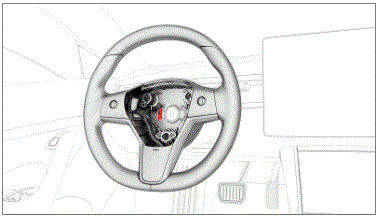

- Disconnect the steering wheel electrical wiring harness from the connector.

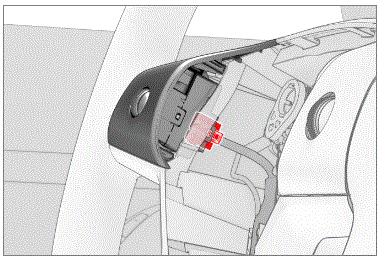

- Disconnect the electrical harness from the LH steering wheel switch connector.

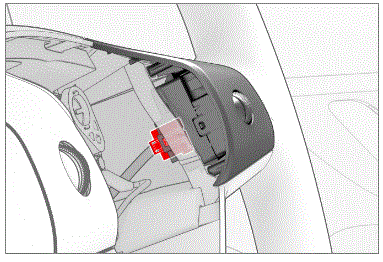

- Disconnect the electrical harness from the RH steering wheel switch connector.

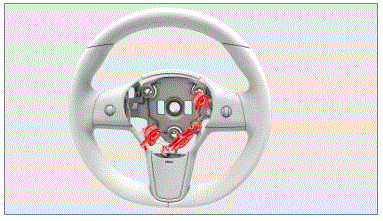

- Release the clips that attach the horn assembly, and then move the horn assembly to the side.

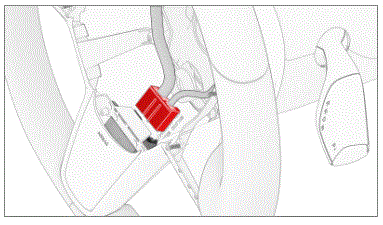

- Disconnect the electrical harness from the lower connector, and then remove the electrical harness from the steering wheel.

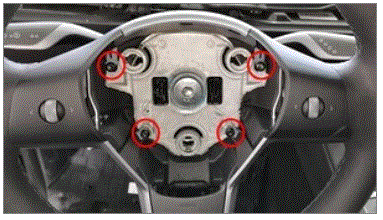

- Remove the bolts that attach the steering wheel surround to the steering wheel.
5.4 Nm (4.0 lbs-ft)
Tip: Pry the lower portion of the bright surround first.
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
- 4 in extension

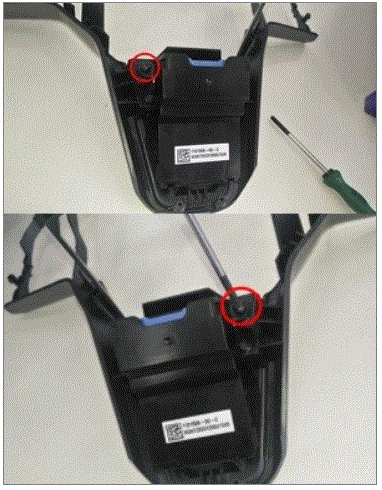

- Remove the bolts that attach the steering wheel controller to the steering wheel surround.
0.9 Nm (8 lbs-in)
Tip: Use of the following tool(s) is recommended:
- Torx T10 bit

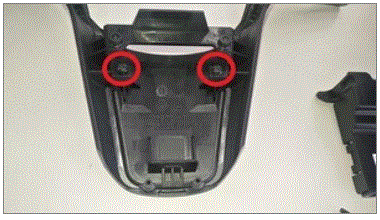

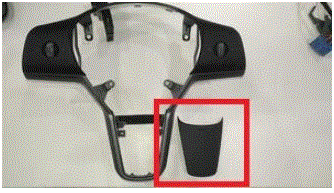

- Remove the bolts that attach the lower spoke cover to the steering wheel surround.
0.9 Nm (8 lbs-in)
Tip: Use of the following tool(s) is recommended:
- Torx T10 bit
