Sensor - Pressure Tube (Pedestrian Protection) - Remove and Replace: Install

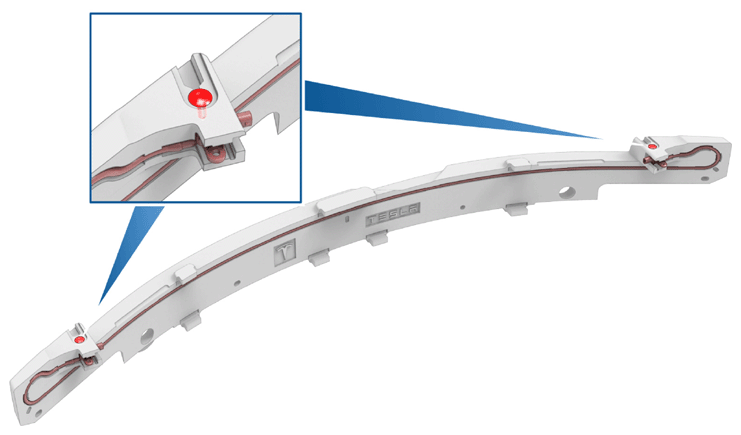

  1. Install the pedestrian protection pressure tube into the front bumper beam foam, and then fasten the clips (x2) that attach the LH and RH pedestrian protection pressure tube sensor to the foam.
    G14748061Courtesy of TESLA, INC.
  2. Install the front the bumper beam foam. See FOAM - BUMPER BEAM - FRONT (REMOVE AND REPLACE) .
  3. Install the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
