Connector End View - X952F (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number 1098098-00-A

Connector HIRSCHMANN 807-445-511

Color BK

Connector Location:

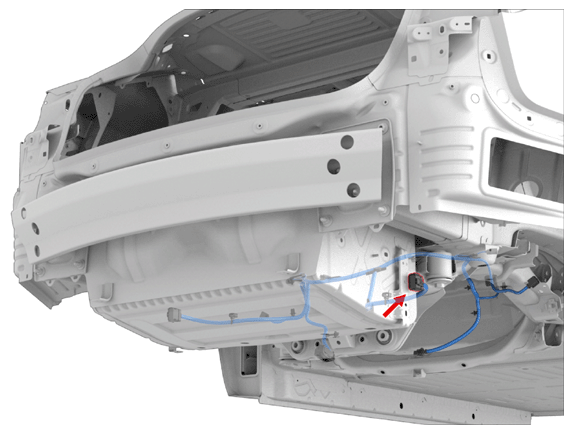

Fig 1: Connector Component Location - X952F (Fremont: 01/05/2019 - 06/04/2019)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X952F (Fremont: 01/05/2019 - 06/04/2019)

Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	AMP	7-1452665-1	1.2x0.6FS	OG	0.35	AMP	967067-2	X156	1
3	AMP	7-1452665-1	1.2x0.6FS	GN	0.35	AMP	967067-2	X156	2
4	AMP	7-1452665-1	1.2x0.6FS	WH	0.35	AMP	967067-2	X157	1
5	AMP	7-1452665-1	1.2x0.6FS	VT	0.35	AMP	967067-2	X157	2
6	AMP	2141970-1	1.2x0.6FS	YE	0.13	AMP	967067-2	X090	12
7	AMP	2141970-1	1.2x0.6FS	BU	0.13	AMP	967067-2	X090	2
8	AMP	7-1452665-1	1.2x0.6FS	RD	0.35	AMP	967067-2	X090	23
9	AMP	7-1452665-1	1.2x0.6FS	WH	0.35	AMP	967067-2	X090	4
10	AMP	7-1452671-1	1.2x0.6FS	RD	1.00	AMP	967067-1	X092	1
11	AMP	7-1452665-1	1.2x0.6FS	BN	0.35	AMP	967067-2	X086	3
12	AMP	7-1452665-1	1.2x0.6FS	YE	0.35	AMP	967067-2	X086	2
13	AMP	7-1452665-1	1.2x0.6FS	GN	0.35	AMP	967067-2	X086	1
14	AMP	7-1452665-1	1.2x0.6FS	BK	0.35	AMP	967067-2	X090	13
15	AMP	7-1452665-1	1.2x0.6FS	RD	0.35	AMP	967067-2	X090	11
16	AMP	7-1452665-1	1.2x0.6FS	BN	0.35	AMP	967067-2	X090	21
