Connector End View - X866F (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number  1043845-03-A

Connector  ROSENBERGER 59Z113-000-D

Color  BO

Connector Location:

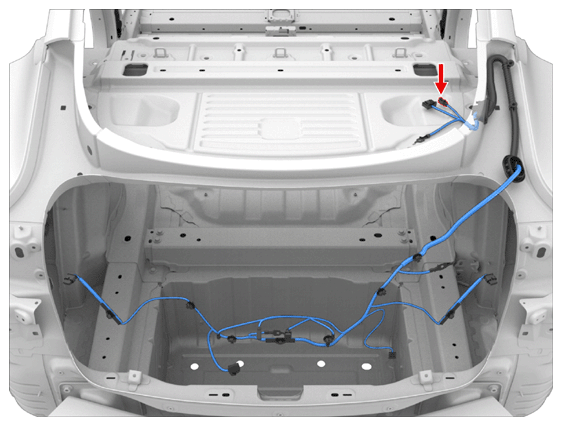

Fig 1: Connector Component Location - X866F (Fremont: 01/05/2019 - 06/04/2019)
G16618577Courtesy of TESLA, INC.

Connector Pinout:

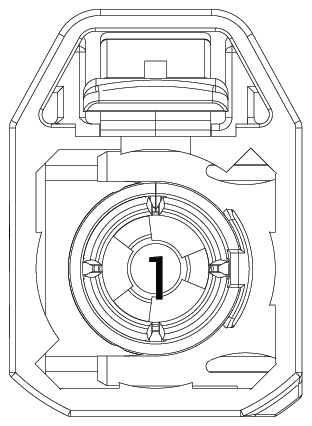

Fig 2: Connector End View - X866F (Fremont: 01/05/2019 - 06/04/2019)
G16618578Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 ROSENBERGER 59K16B-102T4 COAXF BK RG316     X867 1
