Connector End View - X457 (Fremont: 01/05/2019 - 06/04/2019)
Tesla Part Number 1095237-00-A
Connector HIRSCHMANN 805-031-581
Color BK

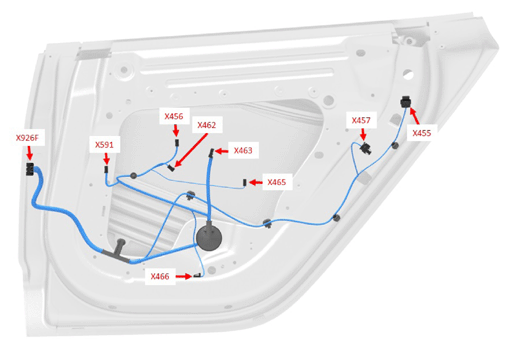

Connector Location:

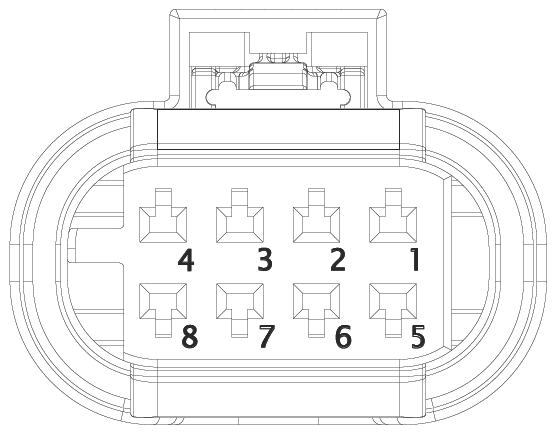

Connector Pinout:
Connector Details:
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | BN | 0.35 | X926F | 8 | ||
| 2 | unused | ||||||||
| 3 | AMP | 7-1452665-1 | 1.2x0.6FS | GY | 0.35 | X926F | 10 | ||
| 4 | AMP | 7-1452665-1 | 1.2x0.6FS | WH | 0.35 | X926F | 9 | ||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | AMP | 7-1452665-1 | 1.2x0.6FS | BU | 0.35 | ||||
| 8 | AMP | 7-1452665-1 | 1.2x0.6FS | GN | 0.35 | X466 | 2 | ||
