Connector End View - X404 (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number  1042476-00-A

Connector  SUMITOMO 6098-3802

Color  WH

Connector Location:

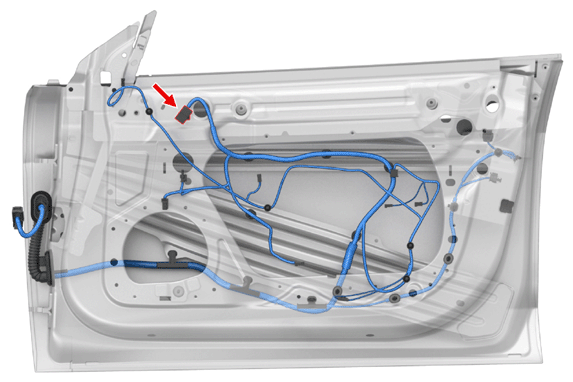

Fig 1: Connector Component Location - X404 (Fremont: 01/05/2019 - 06/04/2019)
G16618298Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X404 (Fremont: 01/05/2019 - 06/04/2019)
G16618299Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8230-4878 0.64x0.64M VT 0.13     X053 32
2 unused
3 SUMITOMO 8230-4878 0.64x0.64M WH 0.13     X053 16
4 unused
5 SUMITOMO 8230-4878 0.64x0.64M BU 0.13     X053 15
