Antenna - Bluetooth Passive Entry - Front - Remove and Replace: Remove

  1. Raise and support the vehicle. See RAISE VEHICLE - 2 POST LIFT .
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Remove the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
  4. Remove the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .
  5. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  6. Remove the front aero shield panel. See PANEL - AERO SHIELD - FRONT (REMOVE AND REPLACE) .
  7. Remove the front fascia valance. See VALANCE - FRONT FASCIA (REMOVE AND REPLACE) .
  8. Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .
  9. Disconnect the electrical connector from the front Bluetooth passive entry antenna connector.
    G14744344Courtesy of TESLA, INC.
  10. Remove the bolt that attaches the front Bluetooth passive entry antenna to the front end carrier, and then remove the antenna from the front end carrier.

    9 N.m (6.6 ft-lbs)

    G14744345Courtesy of TESLA, INC.

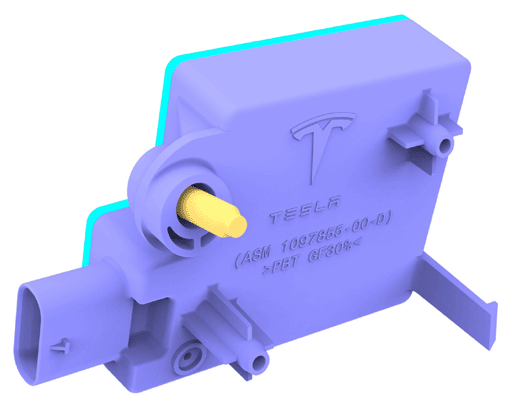

    G14744346Courtesy of TESLA, INC.
