Module - TPMS - Remove and Replace: Remove

  1. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
  2. Remove the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  3. Remove the LH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND INSTALL) .
  4. Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  5. Remove the RH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  6. Remove the RH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND INSTALL) .
  7. Remove the RH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  8. Remove the package tray trim. See TRIM - PACKAGE TRAY (REMOVE AND REPLACE) .
  9. Disconnect the TPMS module electrical connector.

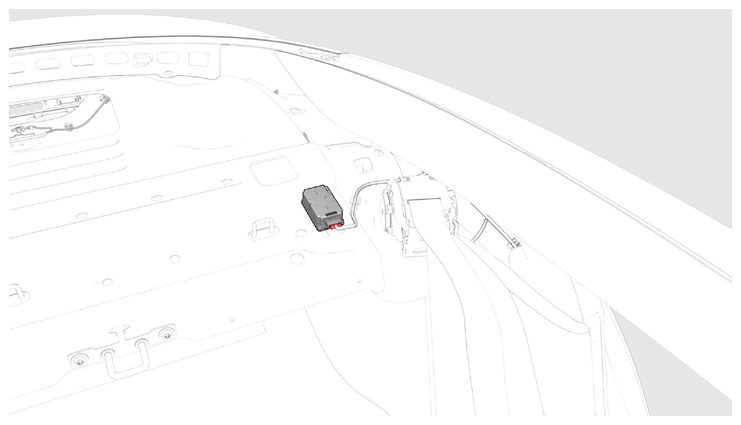

    G14749964Courtesy of TESLA, INC.
  10. Release the tab and slide the TPMS module towards the front of the vehicle, and then remove the module from the vehicle.

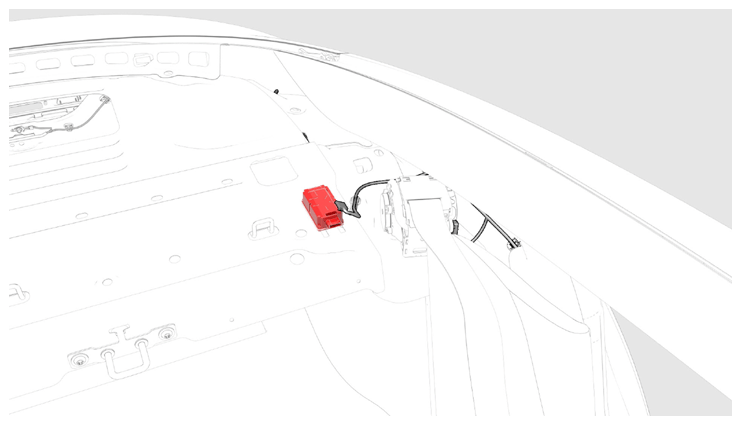

    G14749965Courtesy of TESLA, INC.

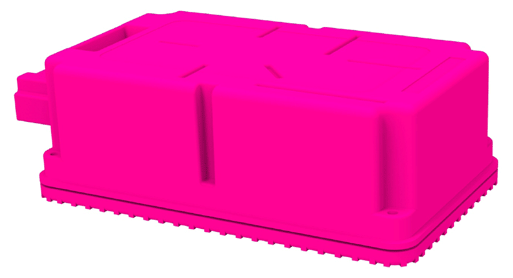

    G14749966Courtesy of TESLA, INC.
