Connector End View - X962F (Fremont: 01/05/2019 - 06/04/2019)

Tesla Part Number  1042578-00-A

Connector  SUMITOMO 6098-3909

Color  WH

Connector Location:

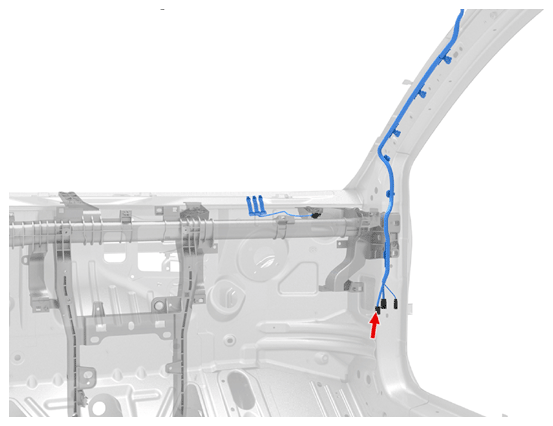

Fig 1: Connector Component Location - X962F (Fremont: 01/05/2019 - 06/04/2019)
G16618684Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X962F (Fremont: 01/05/2019 - 06/04/2019)
G16618685Courtesy of TESLA, INC.

Connector Details:

CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X129 1
2 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X129 2
3 unused
4 unused
5 unused
6 unused
7 SUMITOMO 8240-0182 0.64x0.64F VT 0.13     X303 1
8 SUMITOMO 8240-0182 0.64x0.64F GN 0.13     X303 3
9 SUMITOMO 8240-0182 0.64x0.64F BK 0.13     X303 2
10 unused
