Connector End View - X708 [10/21/2016 - 08/21/2017]

Location:

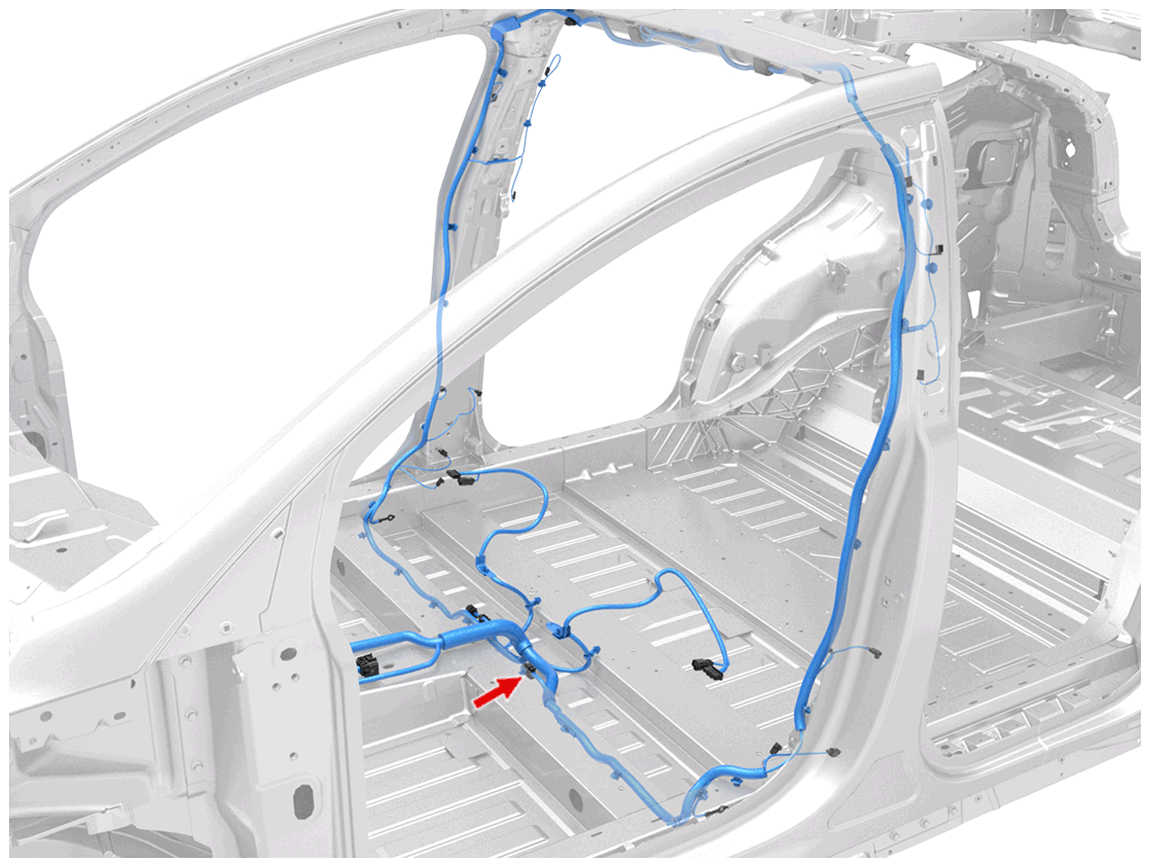

Fig 1: Connector Component Location - X708 [10/21/2016 - 08/21/2017]
G15293651Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3926

Gender:

Color: BK

Fig 2: Connector End View - X708 [10/21/2016 - 08/21/2017]
G15293652Courtesy of TESLA, INC.
Cav Col Gauge
1 WH 0.13
2 WH 0.13
3 BN/WH 0.5
4 BN/WH 0.5
5 BN/WH 0.5
6 WH 0.13
12 BN 0.13
13 BN 0.13
14 BN 0.5
15 BN 0.5
16 BN 0.5
17 BN 0.13
