Connector End View - X042 [10/21/2016 - 08/21/2017]

Location:

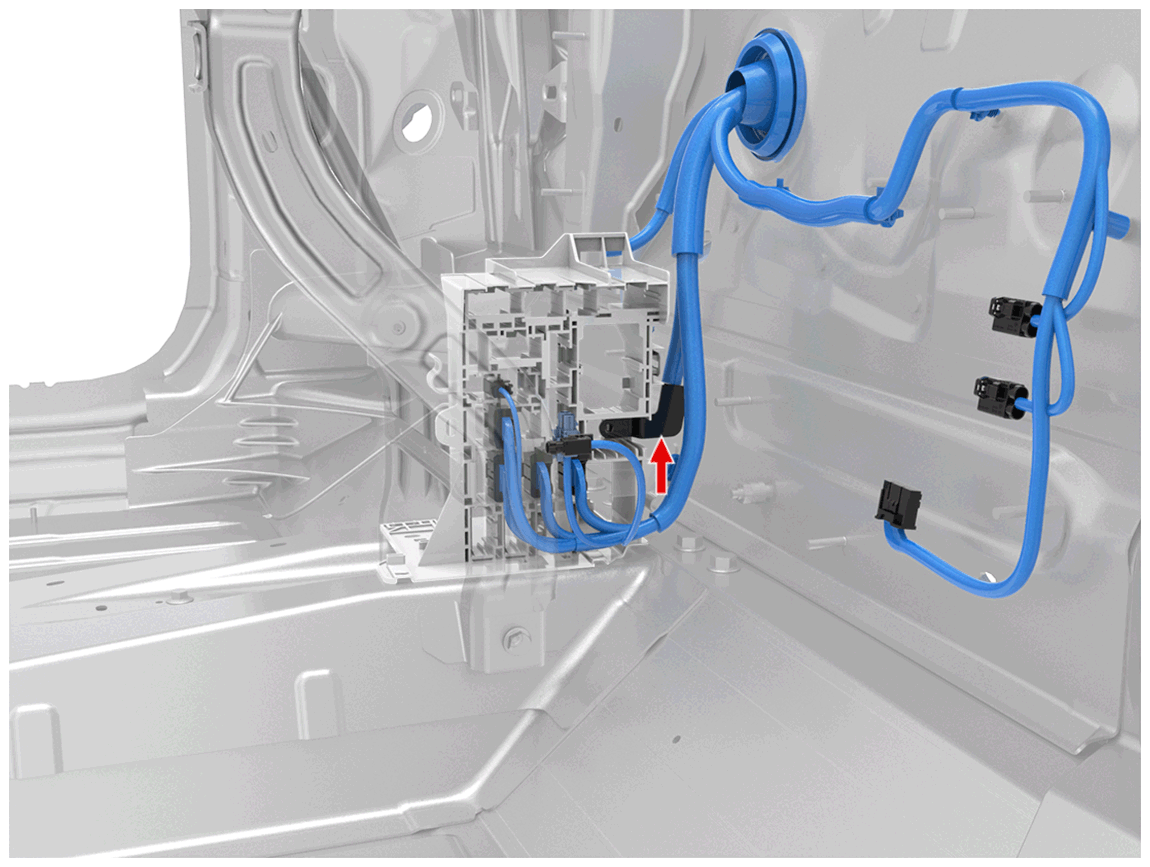

Fig 1: Connector Component Location - X042 [10/21/2016 - 08/21/2017]
G15292974Courtesy of TESLA, INC.

Connector Detail: _1063280-00-a

Gender:

Color:

Cav Col Gauge
1 BK 50
