Connector End View - X703 [10/21/2016 - 08/21/2017]

Location:

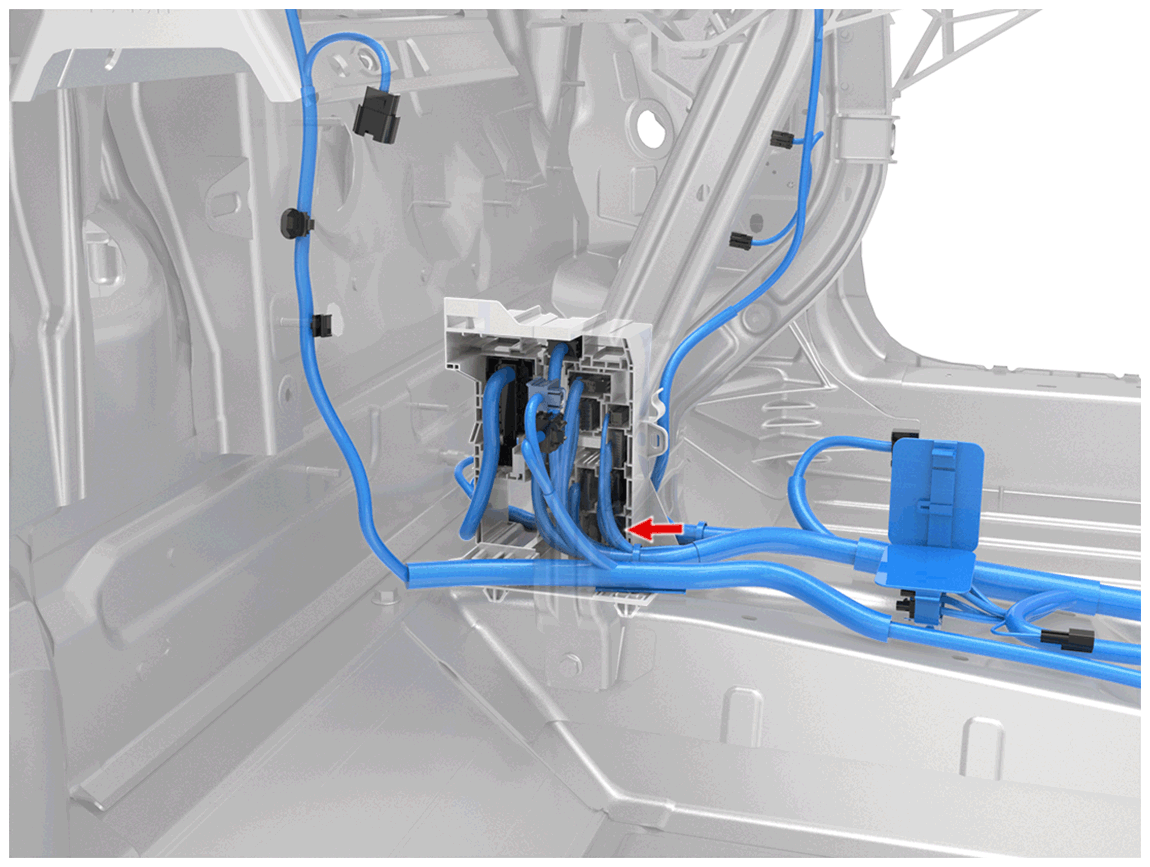

Fig 1: Connector Component Location - X703 [10/21/2016 - 08/21/2017]
G15293643Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3926

Gender:

Color: BK

Fig 2: Connector End View - X703 [10/21/2016 - 08/21/2017]
G15293644Courtesy of TESLA, INC.
Cav Col Gauge
1 GN 0.35
2 GN/WH 0.35
3 GN/WH 0.35
4 GN/WH 0.35
5 GN/WH 0.35
6 WH 0.13
7 VT/WH 0.35
7 VT/WH 0.35
8 VT/WH 0.35
8 VT/WH 0.35
9 VT/WH 0.35
10 VT/WH 0.35
11 VT/WH 0.35
12 GN/WH 0.35
13 GN 0.35
14 GN 0.35
15 GN 0.35
16 GN 0.35
17 GN 0.13
18 VT 0.35
18 VT 0.35
19 VT 0.35
19 VT 0.35
20 VT 0.35
21 VT 0.35
22 VT 0.35
