3rd Generation RWD: Removal

  1. Remove the HEPA filter outlet duct. See Duct - HEPA Filter - Outlet (Remove And Replace) .
  2. Recover refrigerant from the vehicle. See A/C Refrigerant Recovery And Recharge (Remove And Replace) .
  3. Perform the vehicle electrical isolation procedure. See Vehicle Electrical Isolation Procedure .

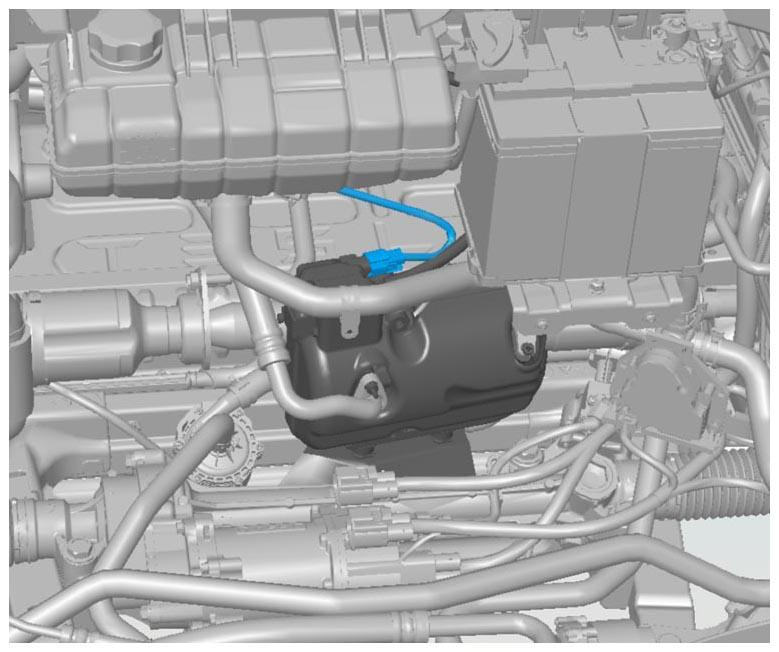

  4. Disconnect the low voltage harness from the compressor.
    G14978870Courtesy of TESLA, INC.

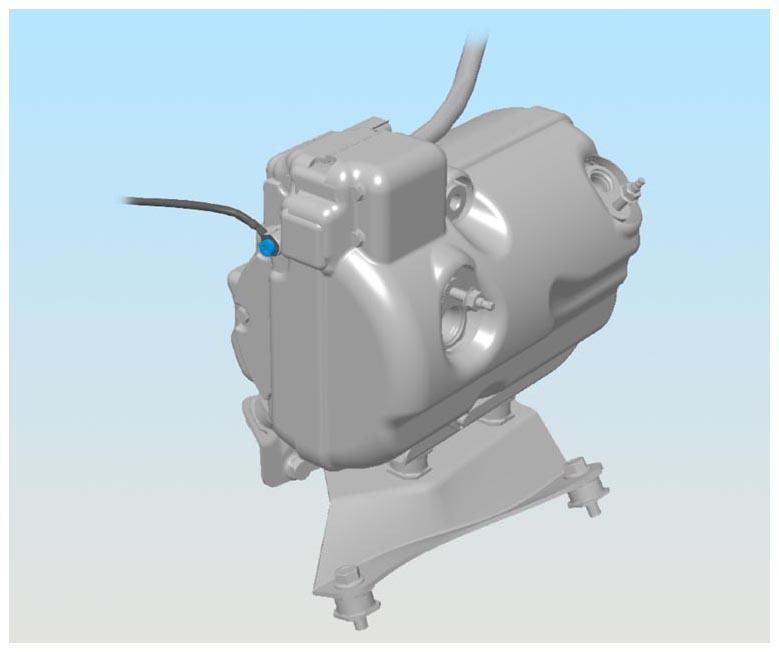

  5. Release the ground strap from the compressor.
    G14978871Courtesy of TESLA, INC.

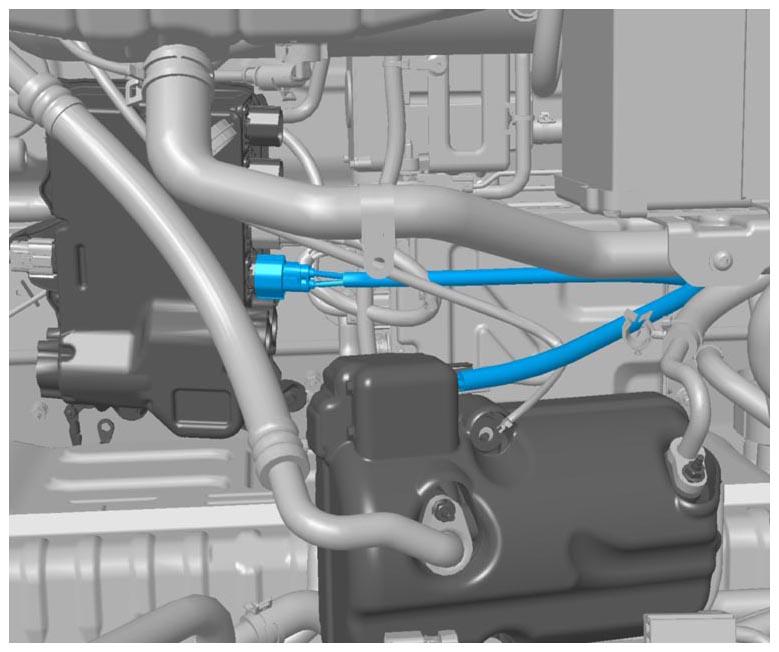

  6. Disconnect the compressor HV cables from the forward junction box.
    G14978872Courtesy of TESLA, INC.

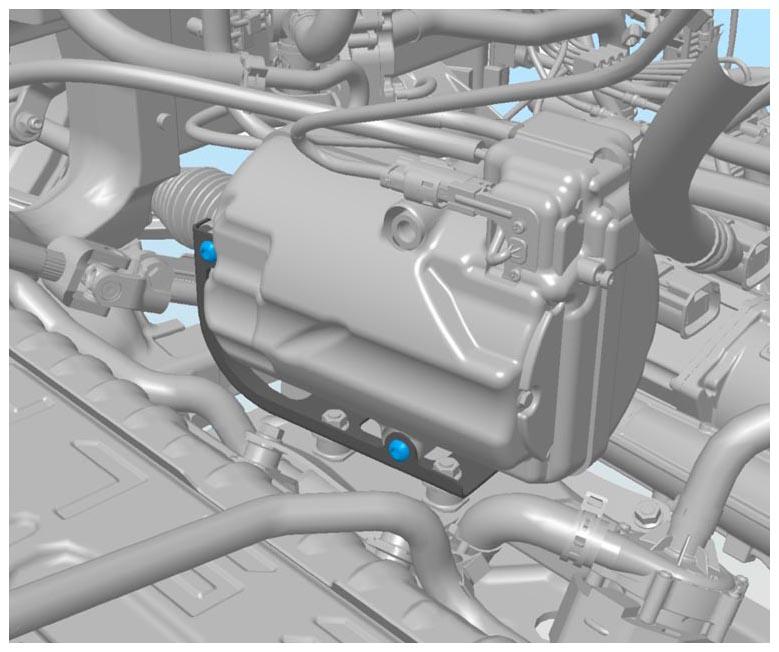

  7. Release the fasteners that secure the compressor to the bracket (torque 20 N.m).
    G14978873Courtesy of TESLA, INC.

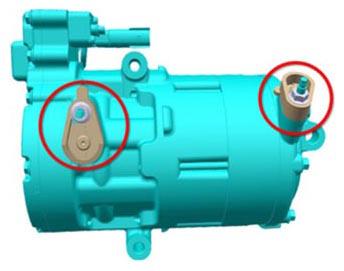

  8. Remove the nuts that secure the A/C suction and discharge lines to the compressor (torque 10 N.m). Release the lines and remove the seals. Plug the holes.
    CAUTION: The holes must be plugged to prevent contamination.
    CAUTION: Remove and discard O-rings.
    G14978874Courtesy of TESLA, INC.
  9. Remove the compressor from the vehicle.
    CAUTION: Do not spill oil from the compressor when removing it. The amount of oil remaining in the old compressor needs to be measured when the new compressor is installed.
  10. Remove the acoustic cover from the compressor.
