Sensor - TPMS - Remove and Replace: Install

  1. Use an IPA wipe to thoroughly clean the inside and outside of the TPMS sensor mounting hole.

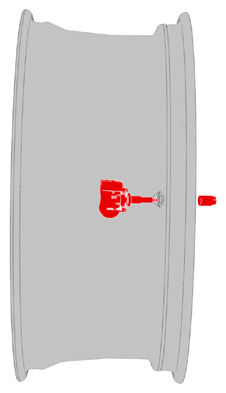

  2. Install the TPMS sensor so that it fits closely to the wheel.
    G14749974Courtesy of TESLA, INC.
  3. Install the nut that secures the TPMS sensor to the wheel.

    8 N.m (5.9 lbs-ft)

  4. Release the upper bead roller, and allow the bead to seat against the wheel.
  5. Inflate the tire to seat the bead.
  6. Install the valve stem core, and then remove the wheel from the tire changer.
  7. Rebalance the wheel. See TIRE - FRONT - LH (BALANCE) .
  8. Reinstall the wheel. See WHEEL (REMOVE AND INSTALL) .
  9. Program the TPMS sensor ID. See TPMS (SENSOR ID TOOL LEARN) .
