Steering Rack (RWD) (RHD) - Remove and Replace: Install

Position the new steering gear assembly onto the front subframe for installation.

Courtesy of TESLA, INC.

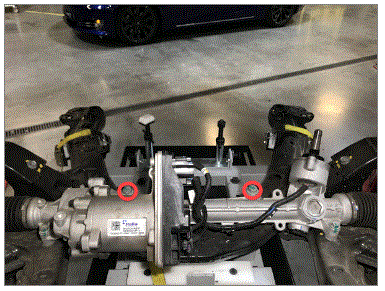

Loosely install the inner bolts that attach the steering gear assembly to front subframe.
NOTE: 2x bolts, 18mm, 75 Nm. Torque at a later step.

Courtesy of TESLA, INC.

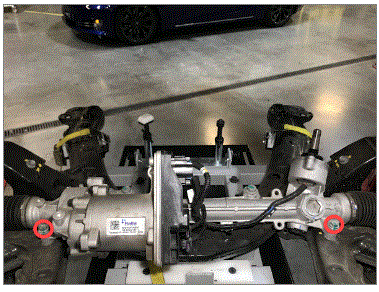

Install the outer bolts that attach the steering gear assembly to the front subframe. For older M3 vehicles with 13 mm bolts:
27 Nm (19.9 lbs-ft)

For newer M3 vehicles with 15 mm bolts:

47 Nm (34.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- Flex head ratchet/flex head torque wrench
- 11 in extension
or:
- 15 mm socket
- Flex head ratchet/flex head torque wrench
- 11 in extension
Courtesy of TESLA, INC.
Torque the inner bolts that attach the steering gear assembly to the front subframe.
75 Nm (55.3 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 18 mm socket
- 6 in extension
Courtesy of TESLA, INC.
Install the front subframe and other components removed during subframe removal. See the Install section in SUBFRAME ASSEMBLY - FRONT (RWD) - REMOVE AND INSTALL .
Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity. See Alignment Requirement - Suspension .
