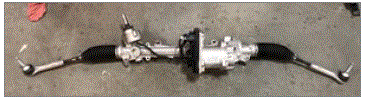

Steering Rack (Dual Motor RHD) - Remove and Replace: Remove

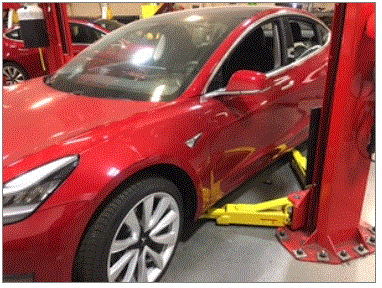

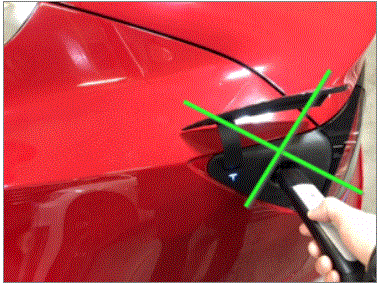

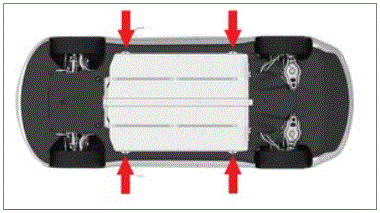

  1. Raise and support vehicle
    NOTE: Ensure vehicle is not charging before lifting it off the ground
    G00648997Courtesy of TESLA, INC.
    G00648998Courtesy of TESLA, INC.
    G00648999Courtesy of TESLA, INC.
  2. Open all four doors
    NOTE: If vehicle is being powered down, Latch rear doors to prevent accidental closure
  3. Lower all four windows

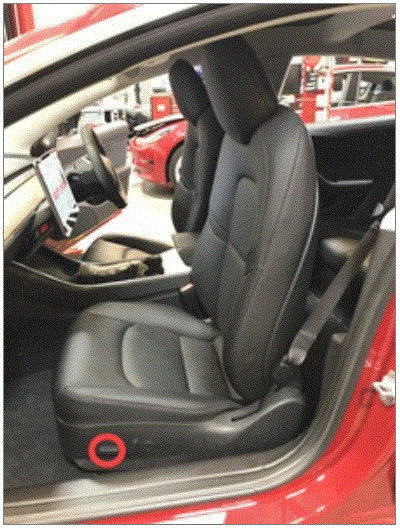

  4. Move LH front seat forward
    G00649000Courtesy of TESLA, INC.

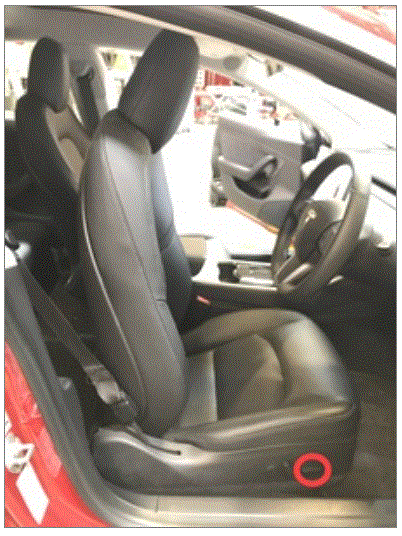

  5. Move RH front seat forward
    G00649001Courtesy of TESLA, INC.

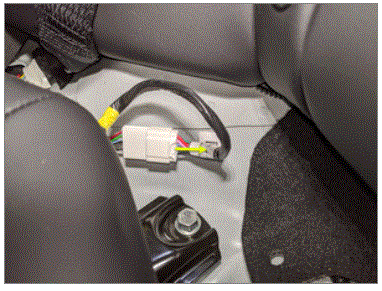

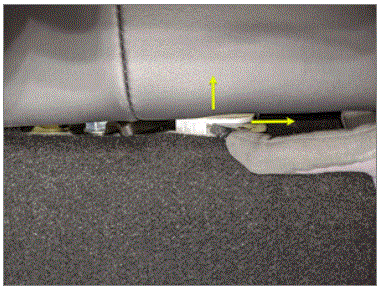

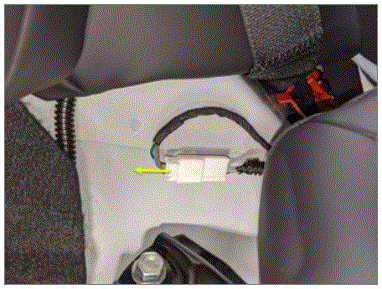

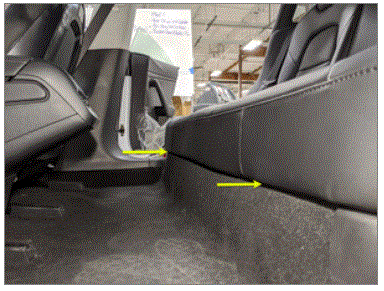

  6. Remove 2nd row seat cushion and disconnect harness
    NOTE: 2x tabs, 2x connectors, Press tab toward LH side of vehicle on each side to release front edge of seat cushion
    G00649002Courtesy of TESLA, INC.
    G00649003Courtesy of TESLA, INC.
    G00649004Courtesy of TESLA, INC.
    G00649005Courtesy of TESLA, INC.

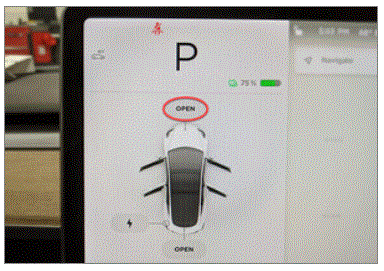

  7. Open hood
    G00649006Courtesy of TESLA, INC.

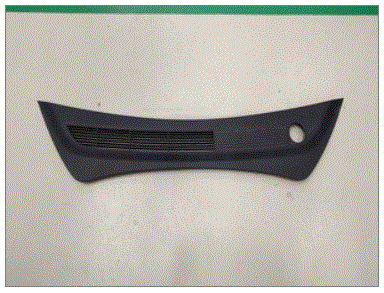

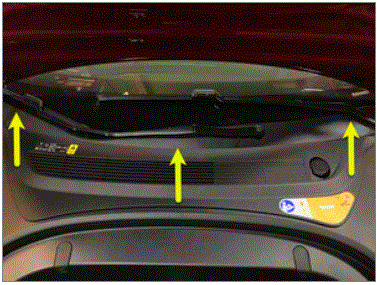

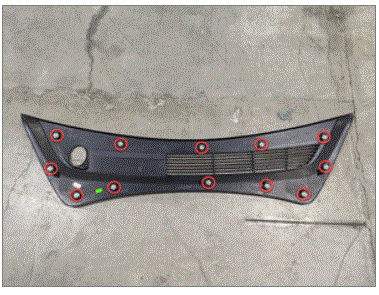

  8. Remove rear apron
    NOTE: 12x clips, only store the rear apron visible face upwards
    G00649007Courtesy of TESLA, INC.
    G00649008Courtesy of TESLA, INC.
    G00649009Courtesy of TESLA, INC.

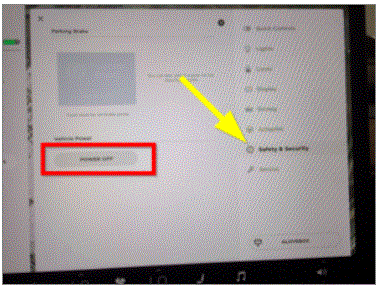

  9. Power off vehicle from center display
    NOTE: Via Controls > Safety & Security > Vehicle Power > Power Off
    G00649010Courtesy of TESLA, INC.

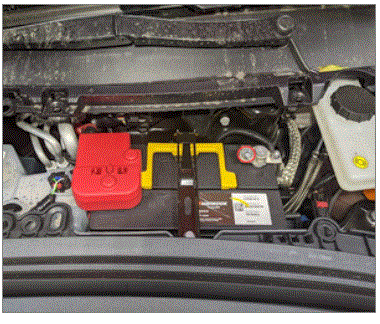

  10. Disconnect 12V negative terminal
    NOTE: 1x nut, 10mm, 6 Nm, Ensure the vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V
    G00649011Courtesy of TESLA, INC.

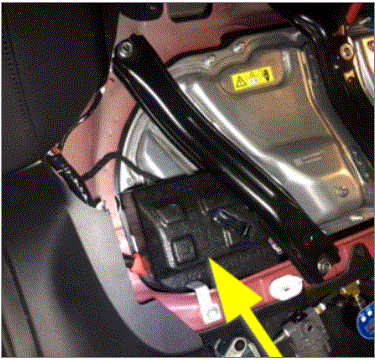

  11. Remove 12V cap from penthouse
    NOTE: 1x cap
    G00649012Courtesy of TESLA, INC.

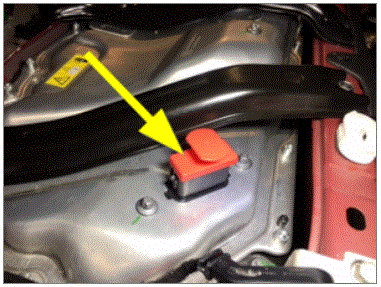

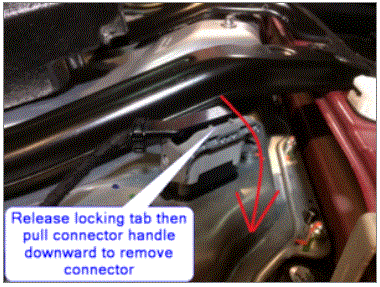

  12. Disconnect HVC logic connector and install logic cap
    NOTE: 1x connector, 1x cap, Release locking tab then push the handle downward to release connector
    G00649013Courtesy of TESLA, INC.
    G00649014Courtesy of TESLA, INC.
  13. Remove all items from pockets and ensure not wearing metal items

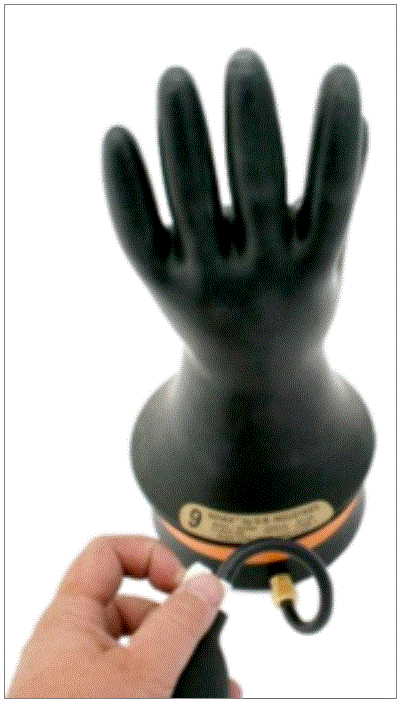

  14. Inspect HV insulating gloves
    NOTE: Check gloves for damage prior to each use
    G00649015Courtesy of TESLA, INC.

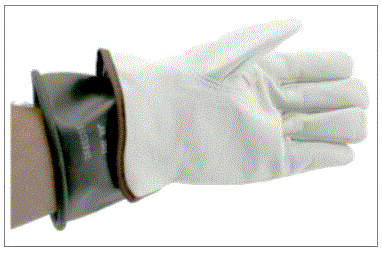

  15. Put on HV insulating gloves and leather over gloves
    NOTE: Make sure to wear Electrical Protective Gloves any time Hioki tester is used
    G00649016Courtesy of TESLA, INC.

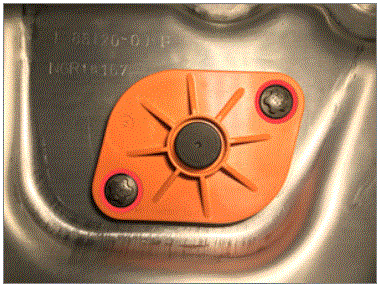

  16. Remove bolts securing penthouse probe lid cover to penthouse cover
    NOTE: 2x bolts, E10 5-Lobe, 6 Nm, Discard after removal
    G00649017Courtesy of TESLA, INC.

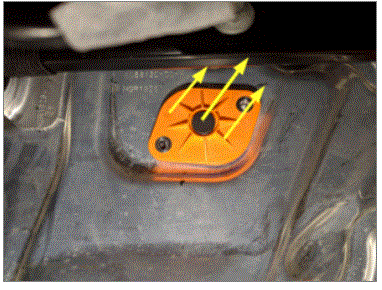

  17. Remove penthouse probe lid cover from the penthouse cover
    G00649018Courtesy of TESLA, INC.

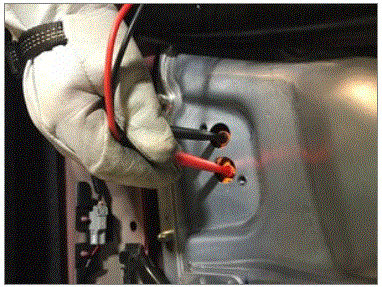

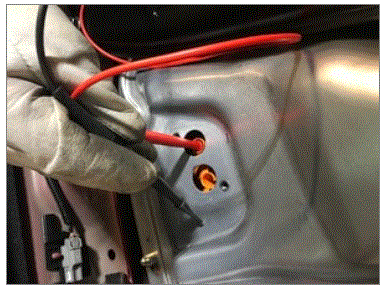

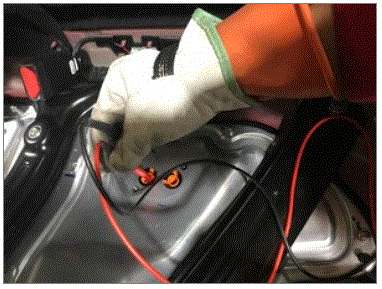

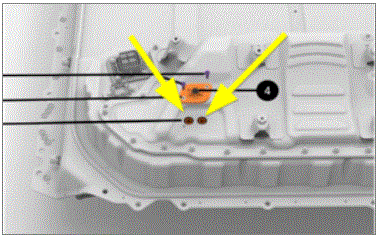

  18. Verify no high voltage
    NOTE: Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering
    G00649019Courtesy of TESLA, INC.
    G00649020Courtesy of TESLA, INC.
    G00649021Courtesy of TESLA, INC.
    G00649022Courtesy of TESLA, INC.
  19. Inspect penthouse probe lid cover gasket then position onto the penthouse cover
    NOTE: Confirm no visual damage present, Good to reuse seal
    G00649023Courtesy of TESLA, INC.
  20. Inspect penthouse probe lid cover gasket then position onto the penthouse cover
    NOTE: Confirm no visual damage present, Good to reuse seal
    G00649023Courtesy of TESLA, INC.
  21. Install bolts securing penthouse probe lid cover to penthouse cover
    NOTE: 2x bolts, E10 5-Lobe, 6 Nm, Install new rubber washer bolts
    G00649017Courtesy of TESLA, INC.

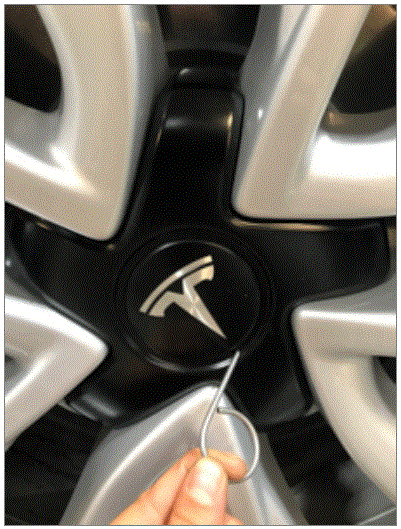

  22. Remove LH front wheel center cap
    NOTE: 1x cap
    G00649024Courtesy of TESLA, INC.
  23. Remove RH front wheel center cap
    NOTE: 1x cap
    G00649024Courtesy of TESLA, INC.

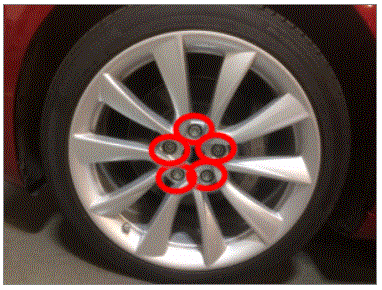

  24. Loosen LH front wheel
    NOTE: 5x nuts, 21mm, 175 Nm
    G00649025Courtesy of TESLA, INC.

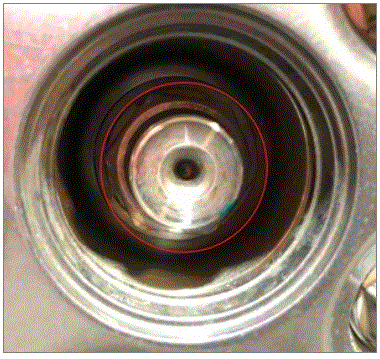

  25. Loosen nut securing LH front halfshaft to LH front hub assembly
    NOTE: 1x nut, 32mm, 245 Nm, Discard after removal
    G00649026Courtesy of TESLA, INC.
  26. Loosen RH front wheel
    NOTE: 5x nuts, 21mm, 175 Nm
    G00649025Courtesy of TESLA, INC.
  27. Loosen nut securing RH front halfshaft to RH front hub assembly
    NOTE: 1x nut, 32mm, 245 Nm, Discard after removal
    G00649026Courtesy of TESLA, INC.

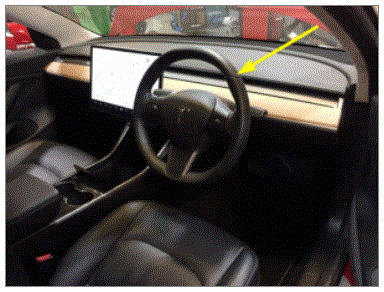

  28. Set steering wheel straight ahead
    G00649027Courtesy of TESLA, INC.

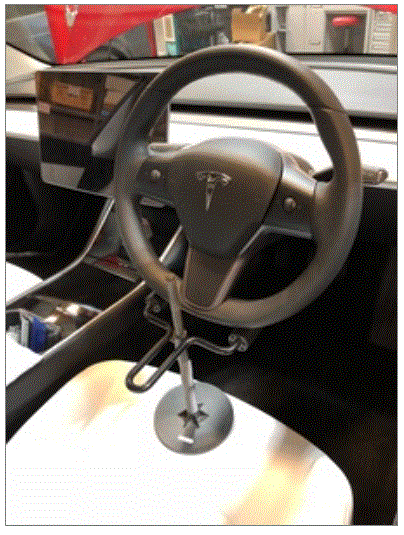

  29. Lock steering wheel into position
    G00649028Courtesy of TESLA, INC.

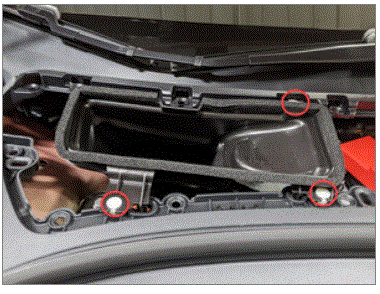

  30. Remove cabin intake upper duct assembly
    NOTE: 3x clips, Older vehicles may be equipped with 4x clips
    G00649029Courtesy of TESLA, INC.

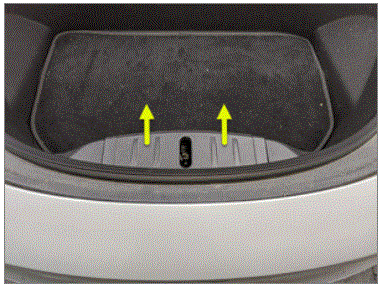

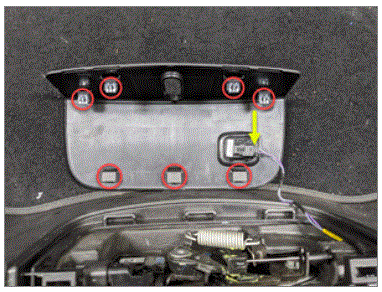

  31. Remove the close out panel from frunk assembly
    NOTE: 4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab the closeout panel from the bottom then pull it upward to release clips
    G00649030Courtesy of TESLA, INC.
    G00649031Courtesy of TESLA, INC.

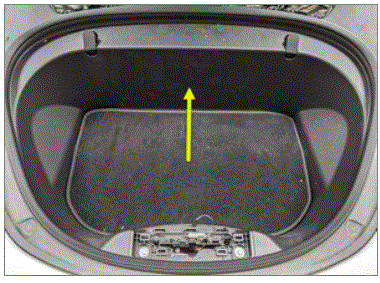

  32. Remove frunk assembly carpet
    G00649032Courtesy of TESLA, INC.

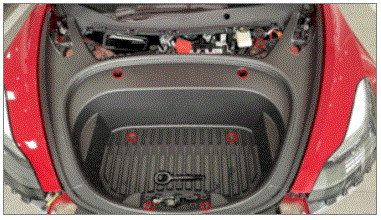

  33. Remove fasteners securing the frunk assembly
    NOTE: 7x bolts, 10mm, 5 Nm, Lift up the RBN covers to access the upper fasteners, Newer vehicles may not be equipped with covers
    G00649033Courtesy of TESLA, INC.

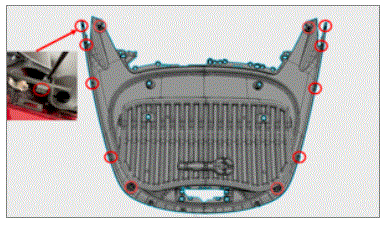

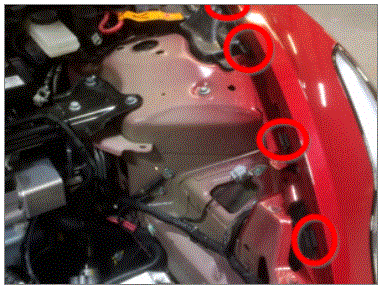

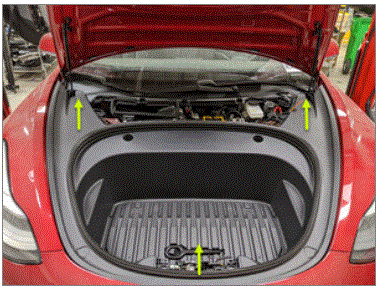

  34. Remove frunk assembly from vehicle
    NOTE: 12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles
    G00649034Courtesy of TESLA, INC.
    G00649035Courtesy of TESLA, INC.
    G00649036Courtesy of TESLA, INC.

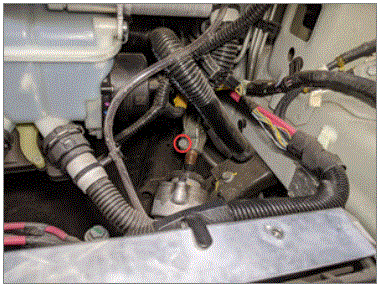

  35. Remove bolt securing the steering gear assembly to electric steering column
    NOTE: 1x bolt, 13mm, 18 Nm
    G00649037Courtesy of TESLA, INC.

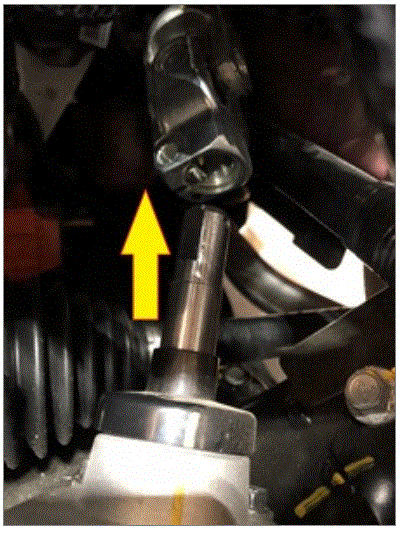

  36. Slide the electric steering column upward to remove it from the steering gear assembly
    NOTE: May need to wiggle or use dead blow to help separate
    G00649038Courtesy of TESLA, INC.

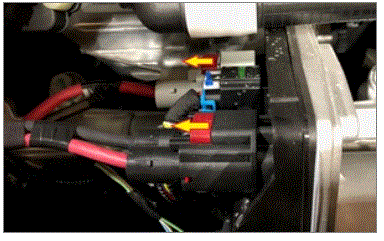

  37. Disconnect the steering gear assembly connectors
    NOTE: 2x connectors, Two stage connectors, Move the red locking tab to the left then depress the connector release to disconnect the connector
    G00649039Courtesy of TESLA, INC.

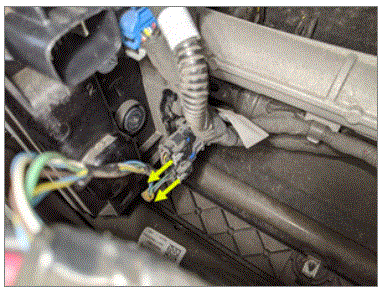

  38. Disconnect the logic connectors at the steering gear area
    NOTE: 2x connectors, Two stage connectors, Slide the grey locking tab away from the connector and depress the grey tab to disconnect the connector
    G00649040Courtesy of TESLA, INC.

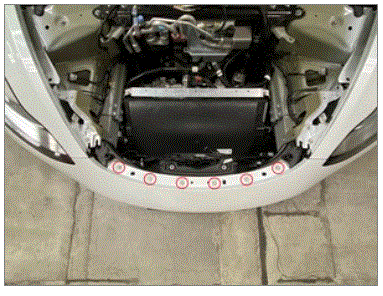

  39. Remove fasteners holding upper portion of front fascia to vehicle
    NOTE: 6x bolts, 10mm, 4 Nm
    G00649041Courtesy of TESLA, INC.

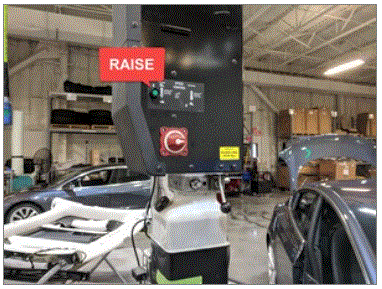

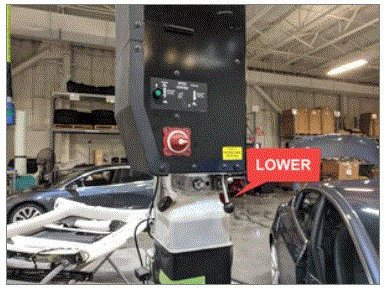

  40. Raise vehicle partially and lower lift onto locks
    NOTE: Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
    G00649042Courtesy of TESLA, INC.
    G00649043Courtesy of TESLA, INC.

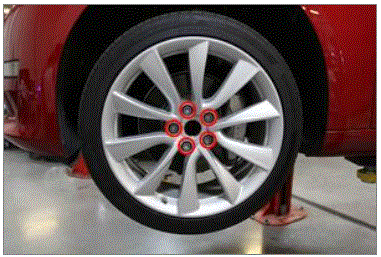

  41. Remove LH front wheel
    NOTE: 5x nuts, 21mm, 175 Nm
    G00649044Courtesy of TESLA, INC.

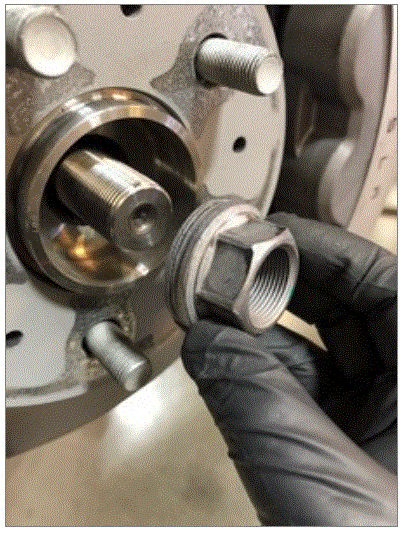

  42. Remove LH front halfshaft nut and washers
    NOTE: 1x nut, 32mm, 245 Nm, The washers are attached to the nut, Discard after removal
    G00649045Courtesy of TESLA, INC.

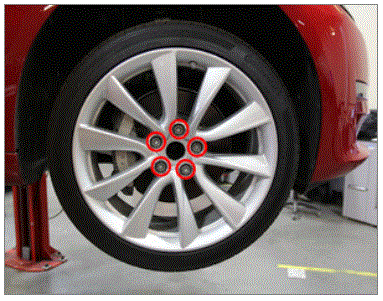

  43. Remove RH front wheel
    NOTE: 5x nuts, 21mm, 175 Nm
    G00649046Courtesy of TESLA, INC.

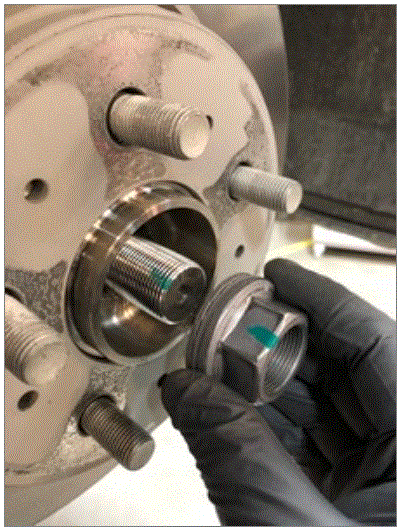

  44. Remove RH front halfshaft nut and washers
    NOTE: 1x nut, 32mm, 245 Nm, The washers are attached to the nut, Discard after removal
    G00649047Courtesy of TESLA, INC.
  45. Raise vehicle fully and lower lift onto locks
    NOTE: Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side, Verify doors are clear of surrounding objects
    G00649042Courtesy of TESLA, INC.
    G00649043Courtesy of TESLA, INC.

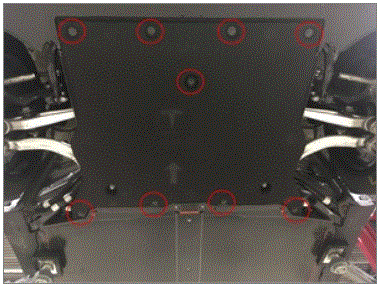

  46. Remove outer fasteners securing front aero shield
    NOTE: 9x bolts, 10mm, 5 Nm
    G00649048Courtesy of TESLA, INC.

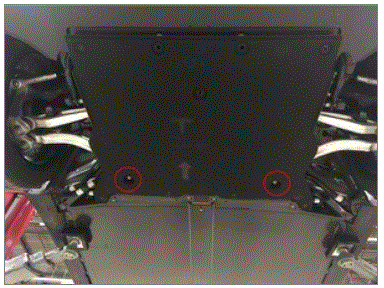

  47. Remove remaining nuts and remove front aero shield from vehicle
    NOTE: 2x nuts, 15mm, 5 Nm
    G00649049Courtesy of TESLA, INC.

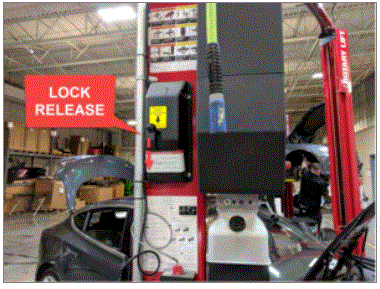

  48. Lower vehicle partially and set lift onto locks
    NOTE: Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
    G00649050Courtesy of TESLA, INC.
    G00649043Courtesy of TESLA, INC.

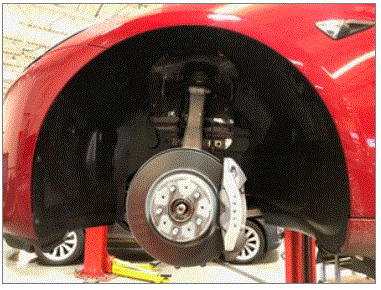

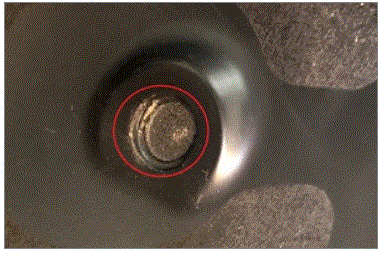

  49. Remove push clips securing LH front wheel liner
    NOTE: 16x push clips, The number of clips on newer vehicles may vary
    G00649051Courtesy of TESLA, INC.
    G00649052Courtesy of TESLA, INC.

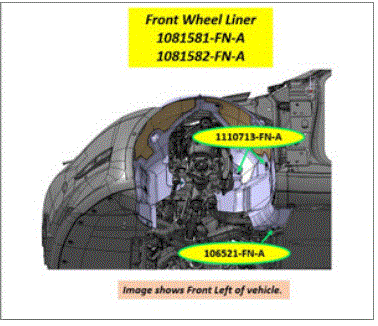

    G00649053Courtesy of TESLA, INC.

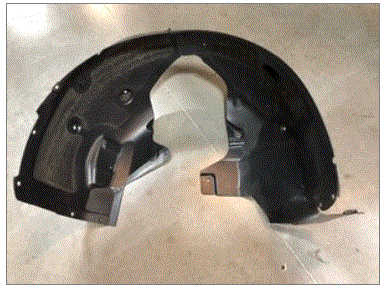

  50. Remove LH front wheel liner from vehicle
    G00649054Courtesy of TESLA, INC.

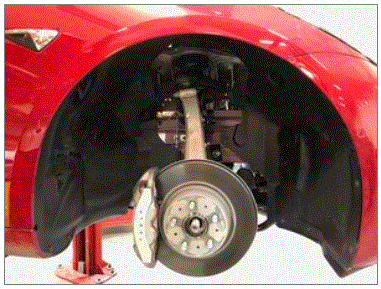

  51. Remove push clips securing RH front wheel liner
    NOTE: 16x push clips, The number of clips on newer vehicles may vary
    G00649055Courtesy of TESLA, INC.
    G00649052Courtesy of TESLA, INC.
    G00649053Courtesy of TESLA, INC.

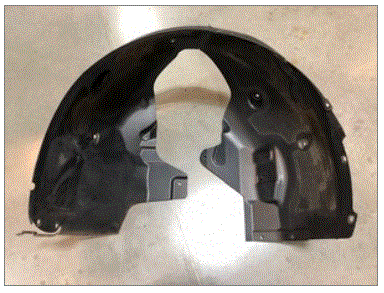

  52. Remove RH front wheel liner from vehicle
    G00649056Courtesy of TESLA, INC.

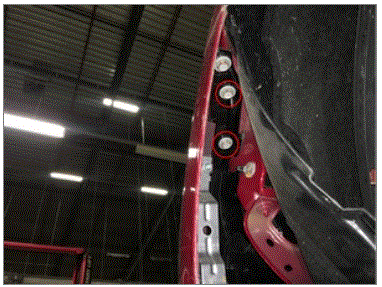

  53. Loosen forward bolts securing LH corner of front fascia to fender
    NOTE: 2x bolts, 10mm, 4 Nm
    G00649057Courtesy of TESLA, INC.

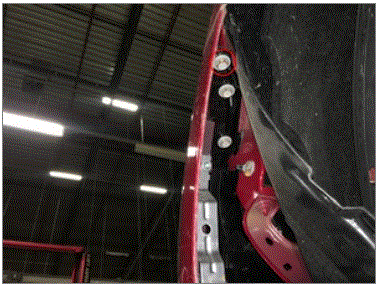

  54. Remove bolt securing LH corner of fascia to fender
    NOTE: 1x bolt, 10mm, 3 Nm
    G00649058Courtesy of TESLA, INC.

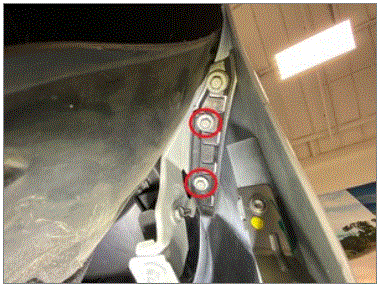

  55. Loosen forward bolts securing RH front corner of front _x000A_fascia to fender
    NOTE: 2x bolts, 10mm, 4 Nm
    G00649059Courtesy of TESLA, INC.

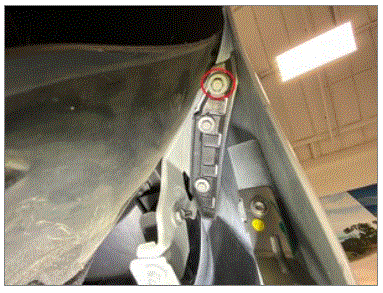

  56. Remove bolt securing RH front corner of front fascia to fender
    NOTE: 1x bolt, 10mm, 3 Nm
    G00649060Courtesy of TESLA, INC.

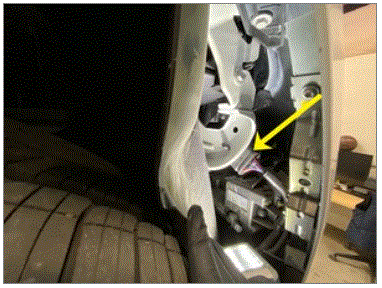

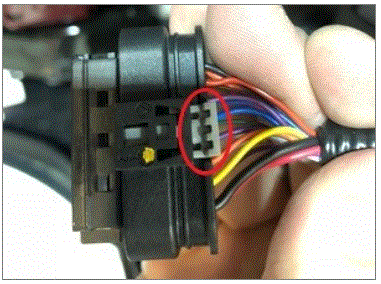

  57. Disconnect 12V harness for front fascia
    NOTE: 1x locking connector, Release the locking tab by sliding it away from the connector, Then depress the grey lock to release the connector
    G00649061Courtesy of TESLA, INC.
    G00649062Courtesy of TESLA, INC.

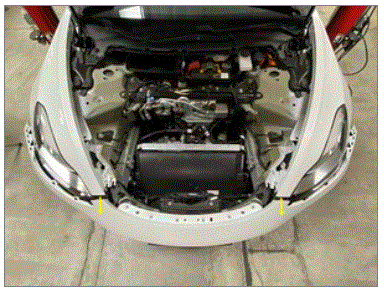

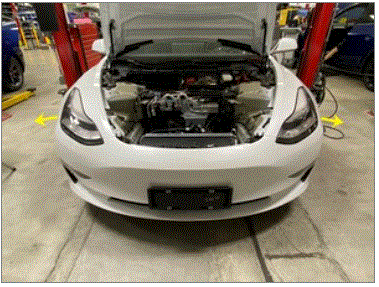

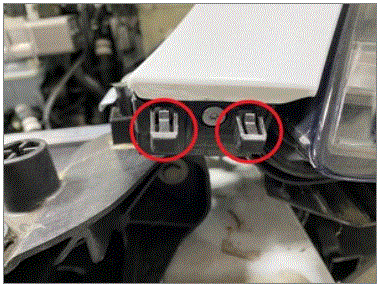

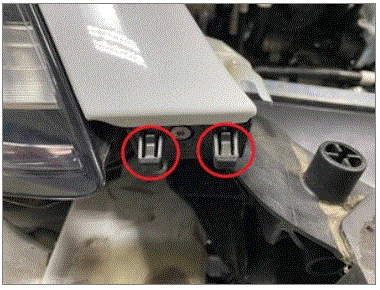

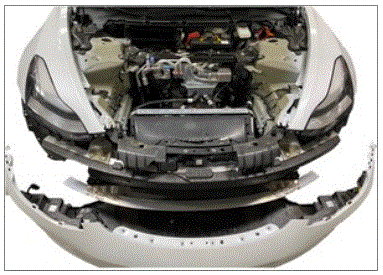

  58. Release both front corners then release front of front fascia by pulling upward and away from vehicle and place onto padded surface
    NOTE: 8x clips, Recommend assistance, Use caution not to damage headlamp or fender during removal
    G00649063Courtesy of TESLA, INC.
    G00649064Courtesy of TESLA, INC.
    G00649065Courtesy of TESLA, INC.
    G00649066Courtesy of TESLA, INC.

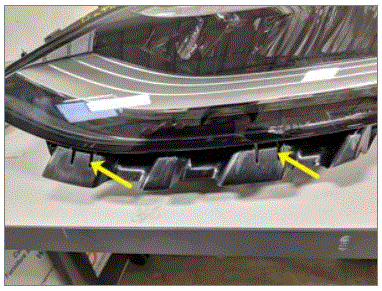

    G00649067Courtesy of TESLA, INC.
    G00649068Courtesy of TESLA, INC.
  59. Remove nut securing the LH tie rod end to the knuckle
    NOTE: 1x nyloc nut, 22mm, 180 Nm, Discard after removal
    G00649069Courtesy of TESLA, INC.

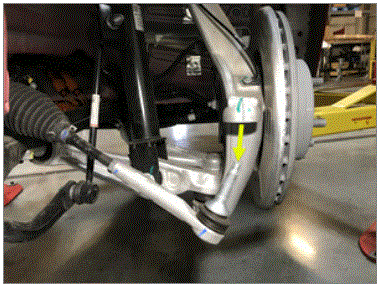

  60. Remove LH front tie rod end from LH front knuckle
    NOTE: Move rotor back and forth to help ease removal
    G00649070Courtesy of TESLA, INC.

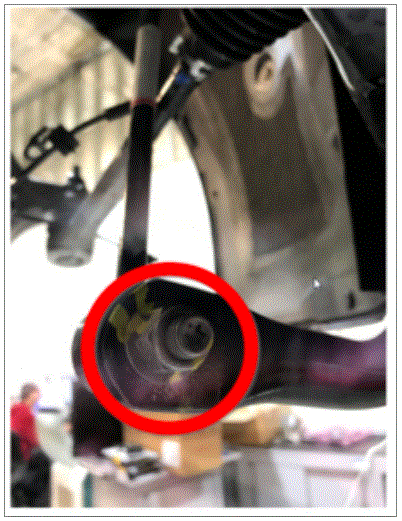

  61. Remove nut securing front stabar link to LH front stabar
    NOTE: 1x nyloc nut, 18mm, 98 Nm, Counter hold ball joint with T40, Discard after removal

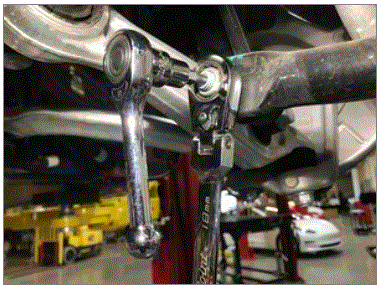

    G00649071Courtesy of TESLA, INC.
    G00649072Courtesy of TESLA, INC.

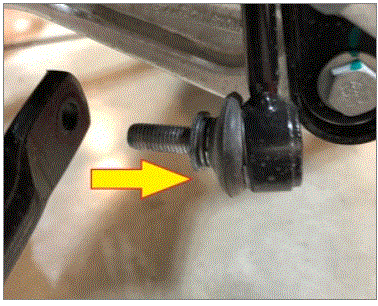

  62. Move LH front stabar link assembly aside
    NOTE: May need to move the stabilizer bar up/down to get the correct angle needed to remove end link
    G00649073Courtesy of TESLA, INC.

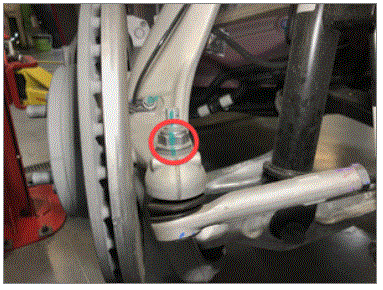

  63. Remove nut securing the RH front tie rod end to RH front knuckle
    NOTE: 1x nyloc nut, 22mm, 180 Nm, Discard after removal
    G00649074Courtesy of TESLA, INC.

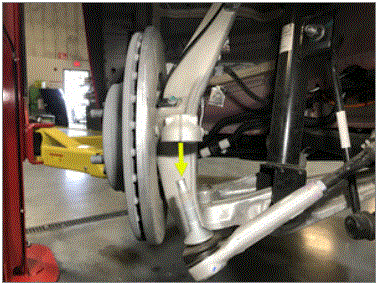

  64. Remove RH front tie rod end from RH front knuckle
    NOTE: Move rotor back and forth to help ease removal
    G00649075Courtesy of TESLA, INC.

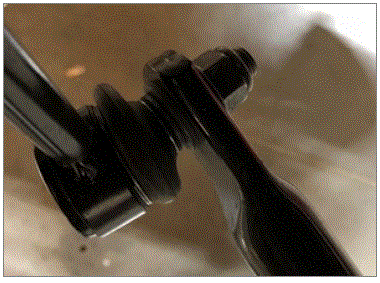

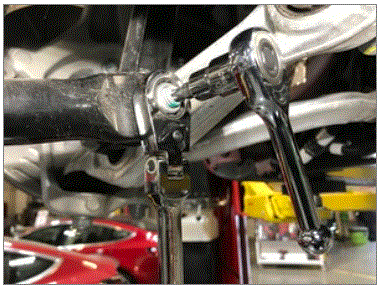

  65. Remove nut securing front stabar to RH front stabar link assembly
    NOTE: 1x nyloc nut, 18mm, 98 Nm, Counter hold ball joint with T40, Discard after removal
    G00649076Courtesy of TESLA, INC.
    G00649077Courtesy of TESLA, INC.

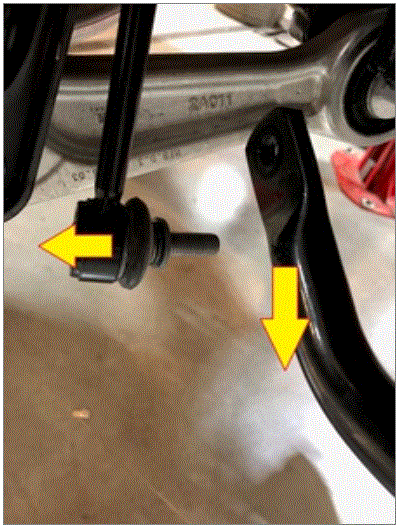

  66. Move RH front stabar link assembly aside
    NOTE: May be necessary to pull down on the sway bar to allow the end link to disengage
    G00649078Courtesy of TESLA, INC.
  67. Raise vehicle fully and lower lift onto locks
    NOTE: Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side, Verify doors are clear of surrounding objects
    G00649042Courtesy of TESLA, INC.
    G00649043Courtesy of TESLA, INC.

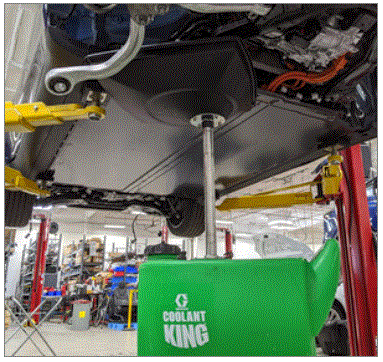

  68. Position coolant drain container underneath RH front of HV battery
    G00649079Courtesy of TESLA, INC.

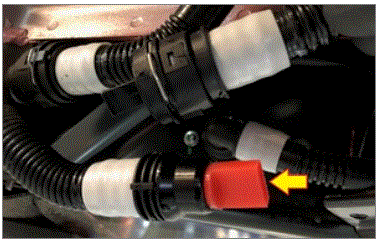

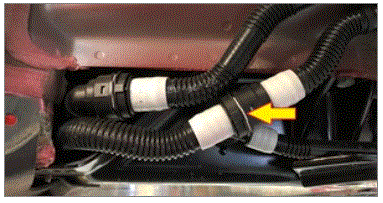

  69. Disconnect FDU coolant inlet hose at the RH side of vehicle and plug female side of hose
    NOTE: 1x spring clip
    G00649080Courtesy of TESLA, INC.
    G00649081Courtesy of TESLA, INC.

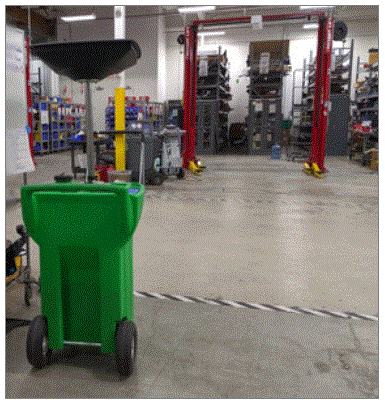

  70. Remove coolant drain container from underneath vehicle
    G00649082Courtesy of TESLA, INC.

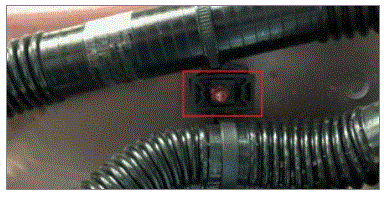

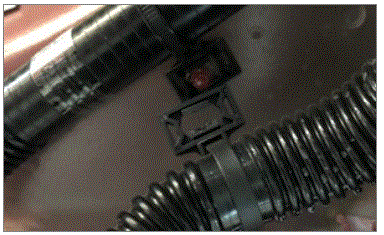

  71. Remove the hose retaining clip for the FDU inlet coolant hose
    NOTE: 1x barrel clip
    G00649083Courtesy of TESLA, INC.
    G00649084Courtesy of TESLA, INC.

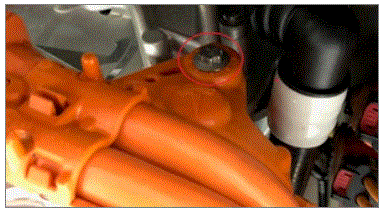

  72. Remove bolt securing FDU HV harness to the FDU
    NOTE: 1x bolt, EP10, 10 Nm
    G00649085Courtesy of TESLA, INC.

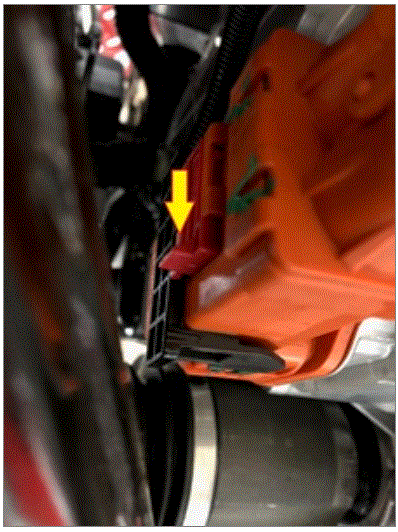

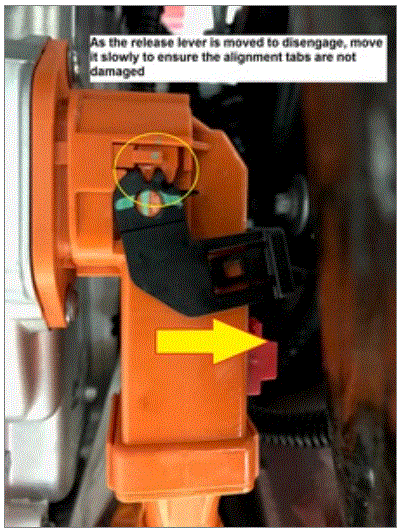

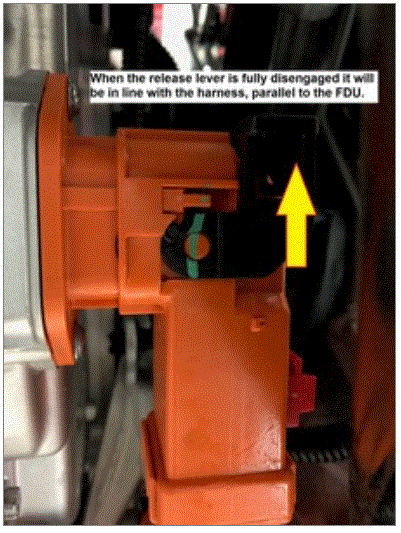

  73. Disconnect the FDU HV harness connector
    NOTE: 1x clip, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the FDU header are not damaged
    G00649086Courtesy of TESLA, INC.
    G00649087Courtesy of TESLA, INC.
    G00649088Courtesy of TESLA, INC.

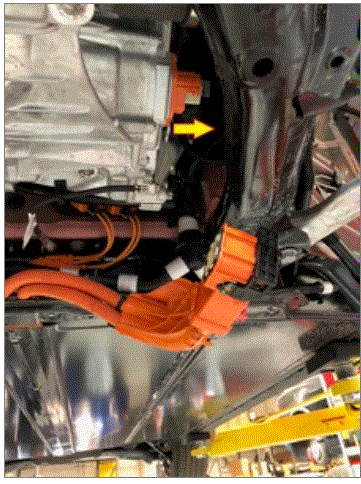

  74. Remove the FDU HV harness connector from the FDU and move aside
    NOTE: 1x connector
    G00649089Courtesy of TESLA, INC.

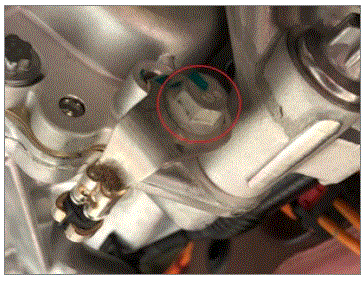

  75. Remove bolt securing FDU ground strap to FDU
    NOTE: 1x bolt, 10mm, 6 Nm
    G00649090Courtesy of TESLA, INC.

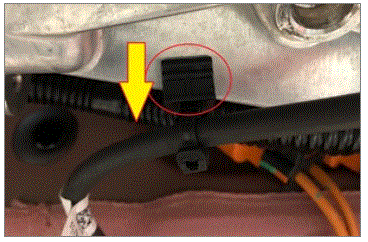

  76. Remove FDU ground strap harness clip from FDU
    NOTE: 1x clip
    G00649091Courtesy of TESLA, INC.

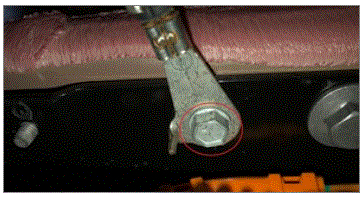

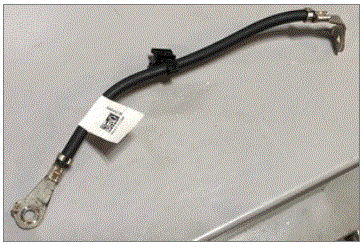

  77. Remove FDU ground strap bolt from HV battery and remove ground strap from vehicle
    NOTE: 1x bolt, 10mm, 10 Nm
    G00649092Courtesy of TESLA, INC.
    G00649093Courtesy of TESLA, INC.

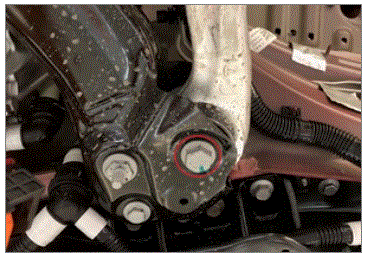

  78. Remove bolt and nut securing LH front lower comp link to front subframe
    NOTE: 1x bolt, 21mm, 1x nut, 21mm, 115 Nm
    G00649094Courtesy of TESLA, INC.

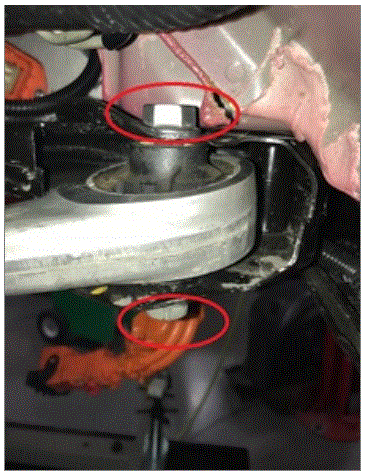

    G00649095Courtesy of TESLA, INC.

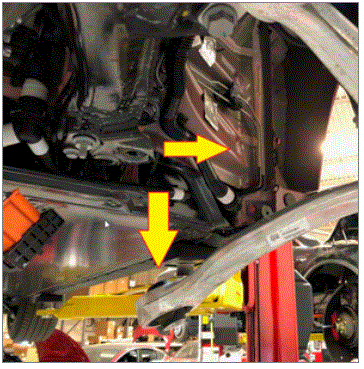

  79. Move the LH front lower comp link aside
    G00649096Courtesy of TESLA, INC.

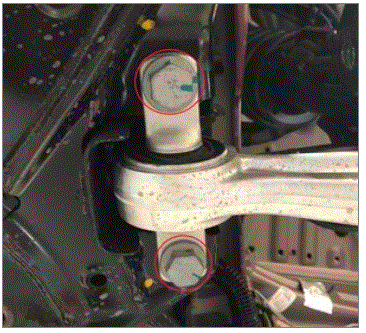

  80. Remove bolts securing LH front lower lateral link to front subframe
    NOTE: 2x bolts, 21mm, 115 Nm
    G00649097Courtesy of TESLA, INC.

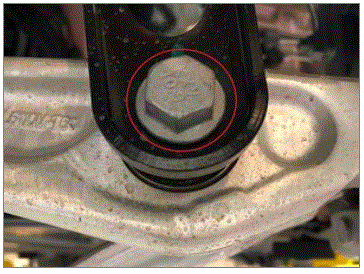

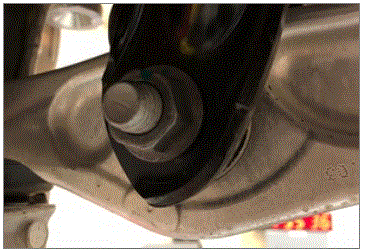

  81. Remove bolt and nut securing LH strut to LH front lower lateral link
    NOTE: 1x bolt, 21mm, 1x nut, 21mm, 106 Nm
    G00649098Courtesy of TESLA, INC.
    G00649099Courtesy of TESLA, INC.

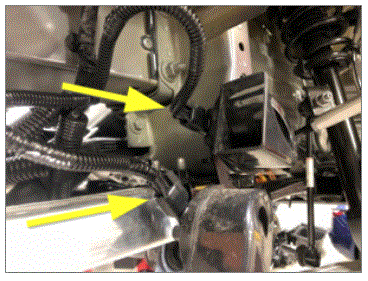

  82. Disconnect horns
    NOTE: 2x connectors
    G00649100Courtesy of TESLA, INC.

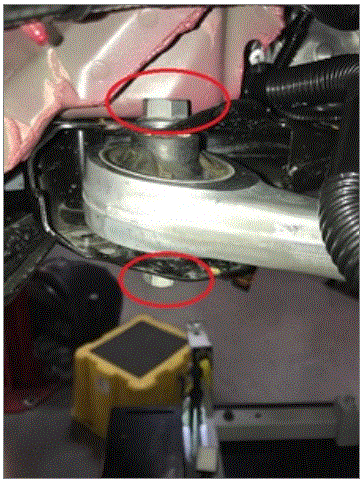

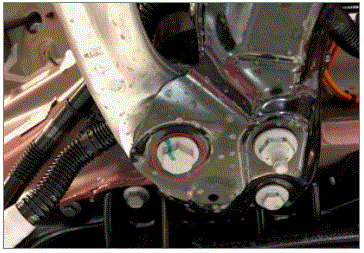

  83. Remove bolt and nut securing RH front lower comp link to front subframe
    NOTE: 1x bolt, 21mm, 1x nut, 21mm, 115 Nm
    G00649101Courtesy of TESLA, INC.
    G00649102Courtesy of TESLA, INC.

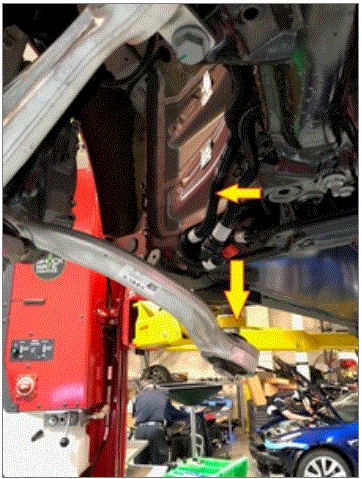

  84. Move the RH front lower comp link aside
    G00649103Courtesy of TESLA, INC.

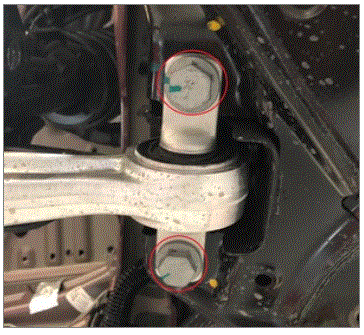

  85. Remove bolts securing RH front lower lateral link to front subframe
    NOTE: 2x bolts, 21mm, 115 Nm
    G00649104Courtesy of TESLA, INC.

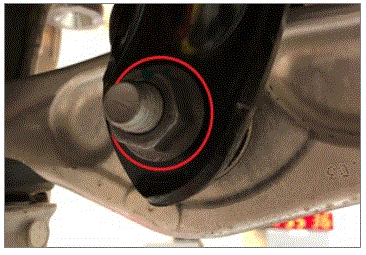

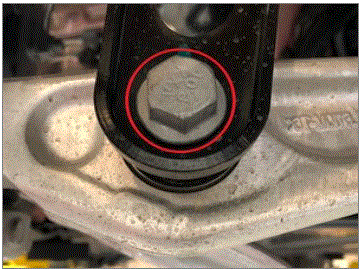

  86. Remove bolt and nut securing RH strut to lower control arm and move the RH front lower lateral link aside
    NOTE: 1x bolt, 21mm, 1x nut, 21mm, 106 Nm
    G00649105Courtesy of TESLA, INC.
    G00649106Courtesy of TESLA, INC.

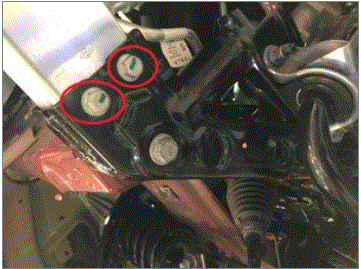

  87. Loosen the bolts securing front subframe to LH front subframe crash can assembly
    NOTE: 2x bolts, 15mm, 53 Nm, This will help when installing the subframe
    G00649107Courtesy of TESLA, INC.

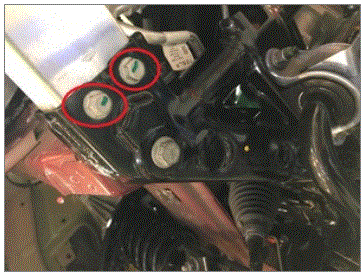

  88. Loosen the bolts securing front subframe to RH front subframe crash can assembly
    NOTE: 2x bolts, 15mm, 53 Nm, This will help when installing the subframe
    G00649108Courtesy of TESLA, INC.
  89. Lower vehicle partially and set lift onto locks
    NOTE: Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
    G00649050Courtesy of TESLA, INC.
    G00649043Courtesy of TESLA, INC.

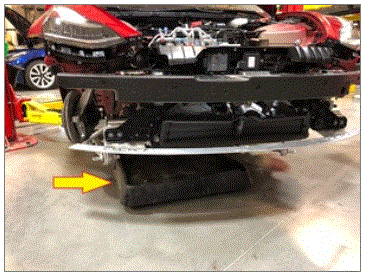

  90. Place coolant catcher under the front of the vehicle
    G00649109Courtesy of TESLA, INC.

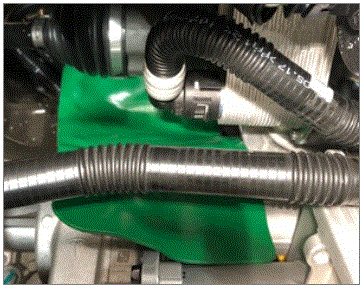

  91. Install foldable funnel under the coolant connection for the FDU heat exchanger to the superbottle
    NOTE: Ensure the foldable funnel covers the 12V connection to the FDU oil pump and the steering rack
    G00649110Courtesy of TESLA, INC.

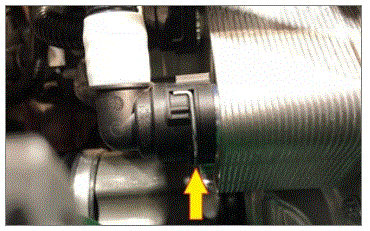

  92. Disconnect the coolant connection for the FDU heat exchanger from the superbottle and allow coolant to drain
    NOTE: 1x spring clip
    G00649111Courtesy of TESLA, INC.

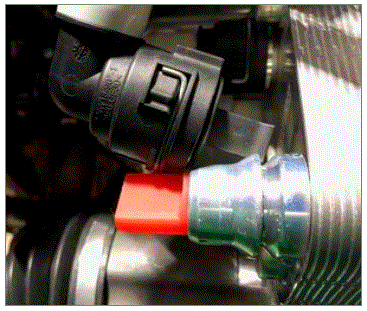

  93. Install plugs to both open coolant hose connections
    G00649112Courtesy of TESLA, INC.

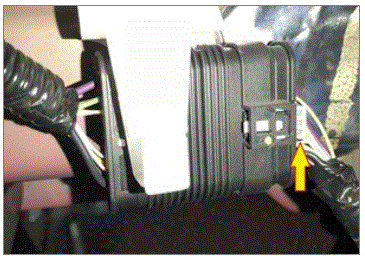

  94. Disconnect the FDU logic connector at the LH frame rail
    NOTE: 1x connector, 2 stage connector, Release the grey locking tab then press on the tab to release the connector
    G00649113Courtesy of TESLA, INC.

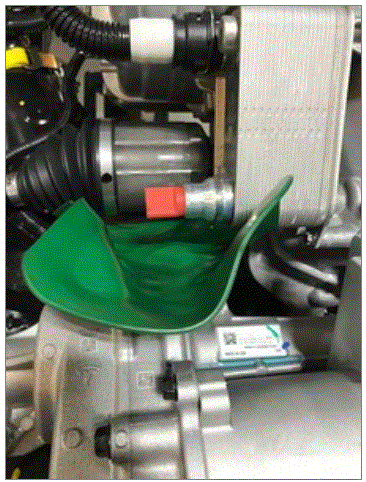

  95. Remove foldable funnel from vehicle
    G00649114Courtesy of TESLA, INC.
  96. Raise vehicle partially and lower lift onto locks
    NOTE: Set vehicle to a comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
    G00649042Courtesy of TESLA, INC.
    G00649043Courtesy of TESLA, INC.

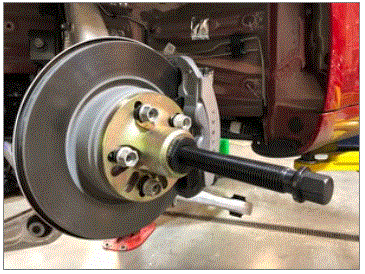

  97. Install hydraulic hub puller onto LH front wheel studs
    NOTE: 5x nuts, 21mm, Hand tight
    G00649115Courtesy of TESLA, INC.

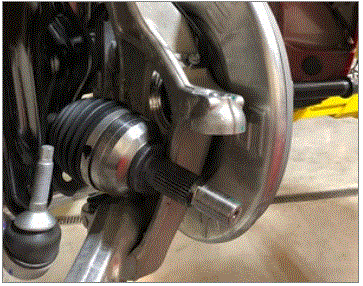

  98. Separate the LH front halfshaft from LH front hub assembly and move halfshaft aside
    NOTE: Turn the screw clockwise to separate the halfshaft from the hub, Counter hold so the tool and hub does not free spin
    G00649116Courtesy of TESLA, INC.

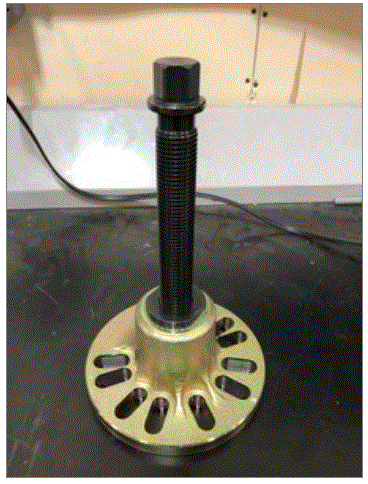

  99. Remove hydraulic hub puller from LH front wheel studs
    G00649117Courtesy of TESLA, INC.

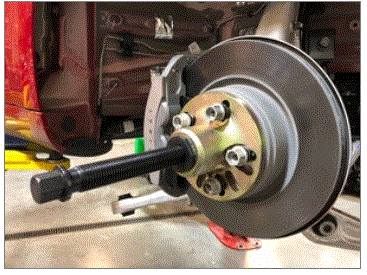

  100. Install hydraulic hub puller onto RH front wheel studs
    NOTE: 5x nuts, 21mm, Hand tight
    G00649118Courtesy of TESLA, INC.

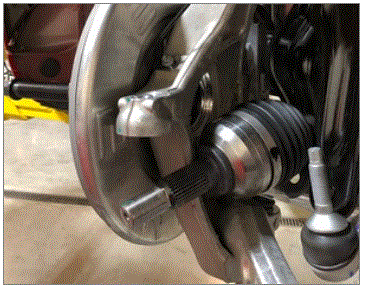

  101. Separate the RH front halfshaft from RH front hub assembly and move halfshaft aside
    NOTE: Turn the screw clockwise to separate the halfshaft from the hub, Counter hold so the tool and hub does not free spin
    G00649119Courtesy of TESLA, INC.

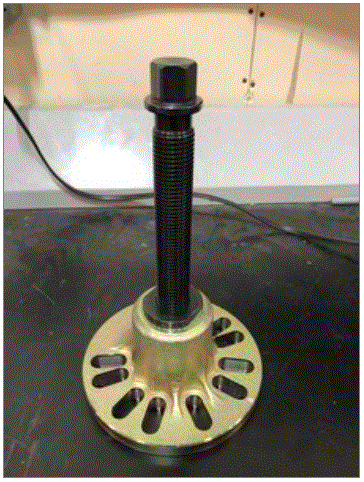

  102. Remove the hydraulic hub puller from the RH front wheel studs
    NOTE: 5x nuts, 21mm, Hand tight
    G00649120Courtesy of TESLA, INC.
  103. Raise vehicle fully and lower lift onto locks
    NOTE: Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
    G00649042Courtesy of TESLA, INC.
    G00649043Courtesy of TESLA, INC.

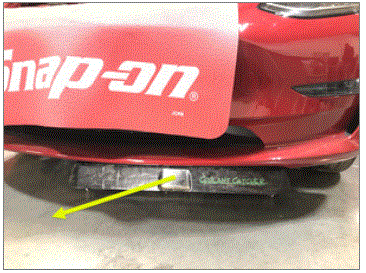

  104. Remove fluid catcher from underneath vehicle
    G00649121Courtesy of TESLA, INC.

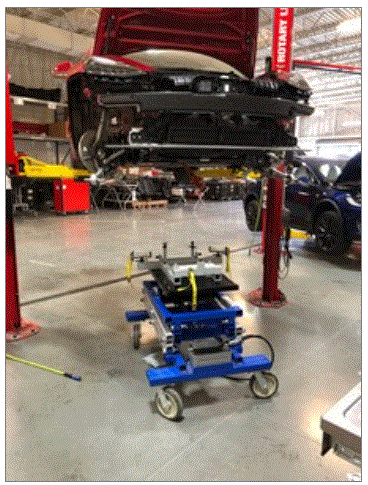

  105. Move the subframe lifting tool underneath the front subframe area
    G00649122Courtesy of TESLA, INC.

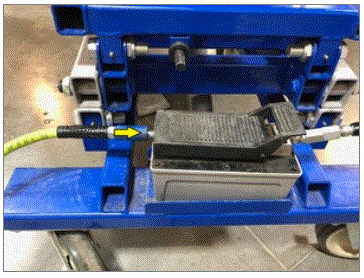

  106. Connect air supply to subframe lifting tool
    G00649123Courtesy of TESLA, INC.

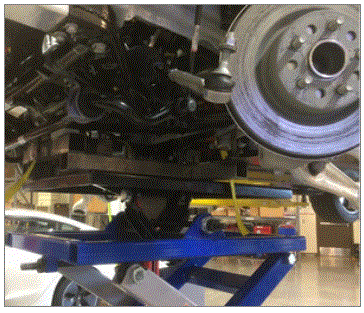

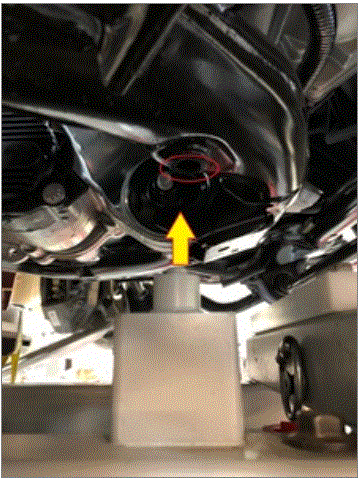

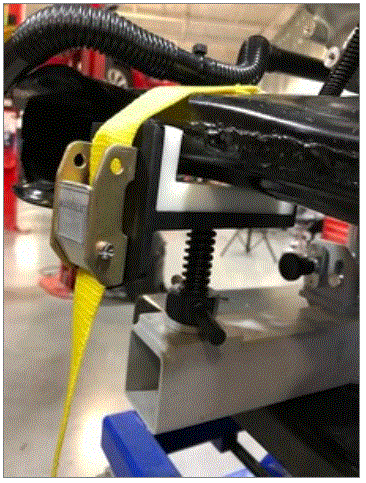

  107. Position and support the front subframe with subframe lifting tool
    NOTE: Recommend assistance, Latch the subframe to subframe lifting tool, Make sure to align the two guides
    G00649124Courtesy of TESLA, INC.
    G00649125Courtesy of TESLA, INC.
    G00649126Courtesy of TESLA, INC.

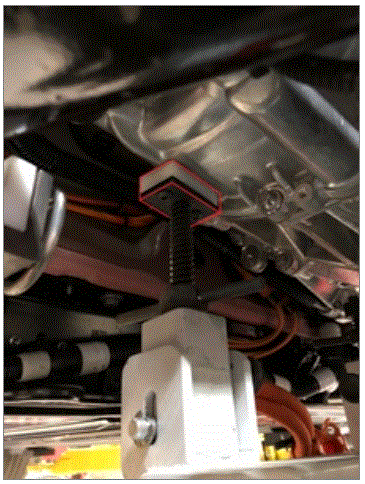

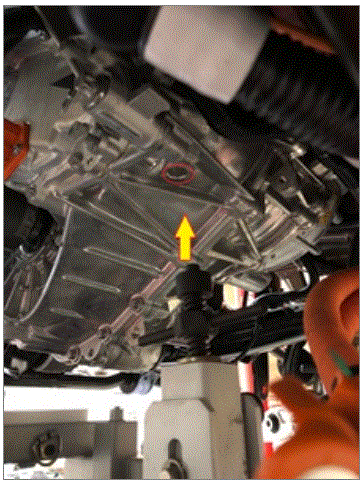

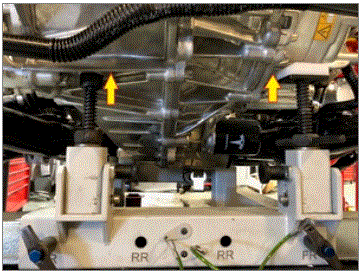

  108. Position the rear FDU support posts to the FDU
    NOTE: Both FDU supports need to engage the FDU, The left side post is dimpled and fits into a recess on the FDU and the right side post has a teflon block that sits against the FDU, Both posts are threaded and the handle should be turned until the posts are tight
    G00649127Courtesy of TESLA, INC.
    G00649128Courtesy of TESLA, INC.
    G00649129Courtesy of TESLA, INC.

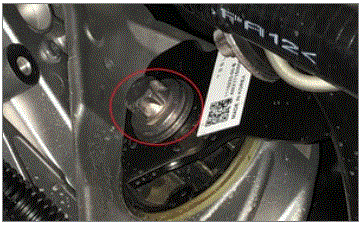

  109. Remove bolt securing the LH motor mount to the LH motor mount bracket
    NOTE: 1x bolt, E18, 105 Nm
    G00649130Courtesy of TESLA, INC.

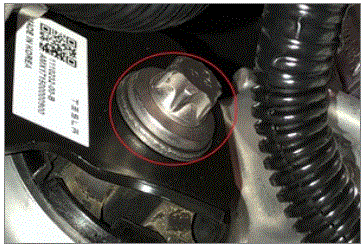

  110. Remove bolt securing the RH motor mount to the RH motor mount bracket
    NOTE: 1x bolt, E18, 105 Nm
    G00649131Courtesy of TESLA, INC.

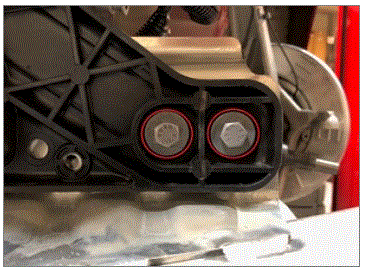

  111. Remove bolts securing front end carrier to LH front subframe crash can assembly
    NOTE: 2x bolts, 13mm, 16 Nm
    G00649132Courtesy of TESLA, INC.

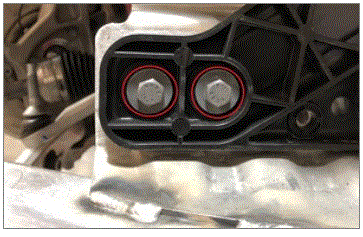

  112. Remove bolts securing front end carrier to RH front subframe crash can assembly
    NOTE: 2x bolts, 13mm, 16 Nm
    G00649133Courtesy of TESLA, INC.

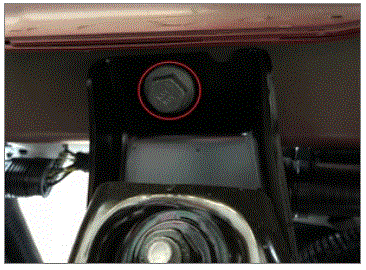

  113. Remove bolt securing LH mid mount to body
    NOTE: x bolt, 15mm, 50 Nm, Discard after removal
    G00649134Courtesy of TESLA, INC.

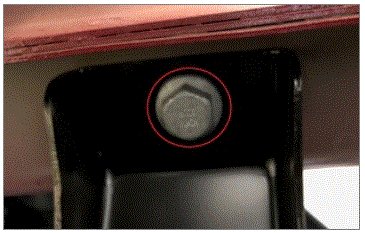

  114. Remove bolt securing RH mid mount to body
    NOTE: 1x bolt, 15mm, 50 Nm, Discard after removal
    G00649135Courtesy of TESLA, INC.

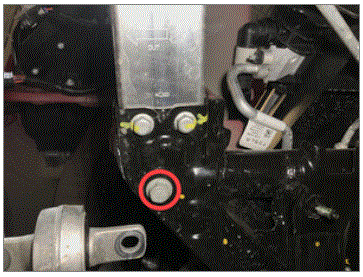

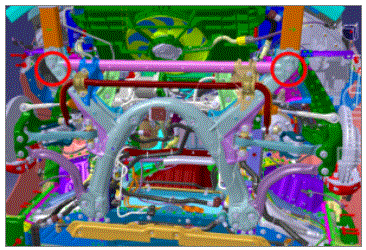

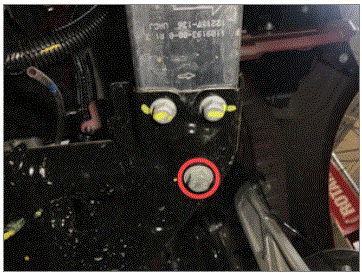

  115. Remove bolts securing the front portion of the front subframe to body
    NOTE: 2x bolts, 18mm, 72 Nm, Discard after removal
    G00649136Courtesy of TESLA, INC.
    G00649137Courtesy of TESLA, INC.
    G00649138Courtesy of TESLA, INC.

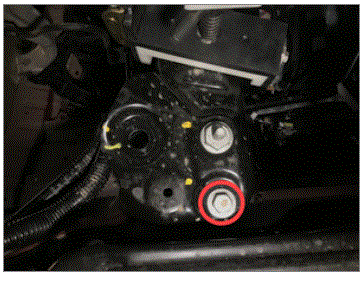

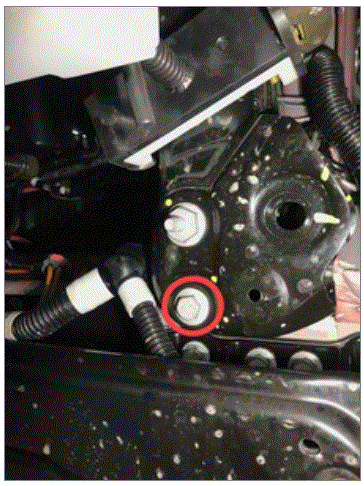

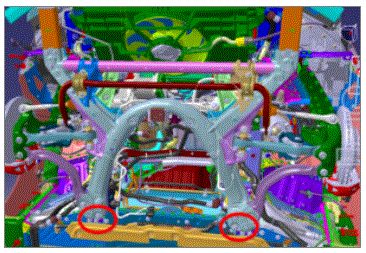

  116. Remove smaller bolts securing the rear portion of the front subframe to body
    NOTE: 2x bolts, 15mm, 50 Nm, Discard after removal
    G00649139Courtesy of TESLA, INC.
    G00649140Courtesy of TESLA, INC.
    G00649141Courtesy of TESLA, INC.

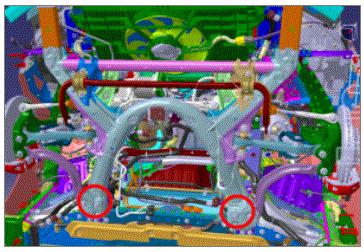

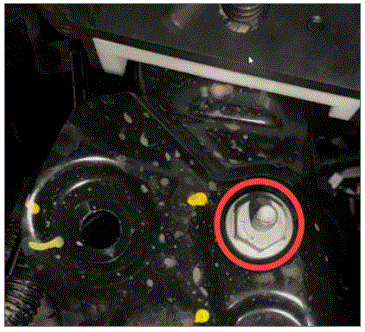

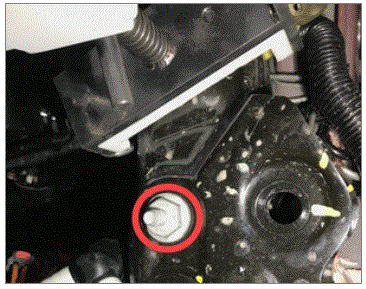

  117. Remove larger bolts securing the rear portion of the front subframe to body
    NOTE: 2x bolts, 21mm, 125 Nm, Discard after removal
    G00649142Courtesy of TESLA, INC.
    G00649143Courtesy of TESLA, INC.
    G00649144Courtesy of TESLA, INC.

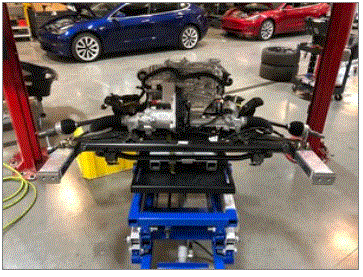

  118. Lower front subframe from vehicle
    NOTE: Recommend assistance
    G00649145Courtesy of TESLA, INC.

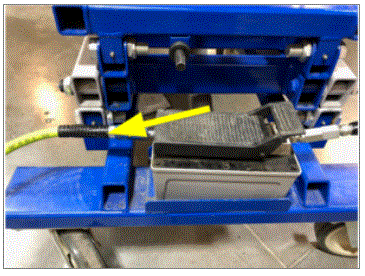

  119. Disconnect air supply from subframe lifting tool
    G00649146Courtesy of TESLA, INC.

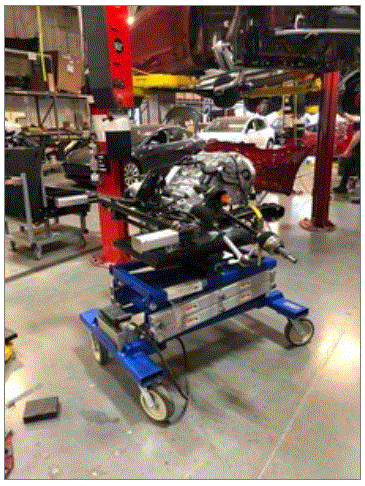

  120. Remove subframe lifting tool from under vehicle
    G00649147Courtesy of TESLA, INC.

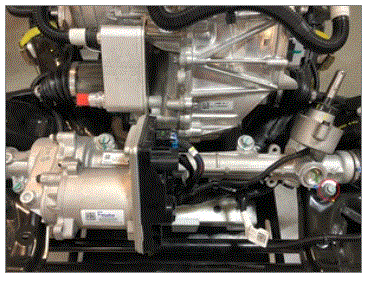

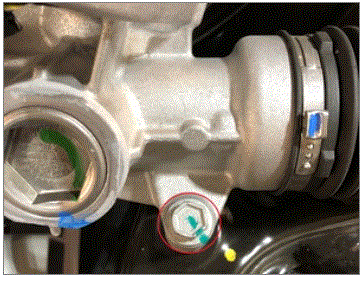

  121. Remove the front left bolt securing the steering gear assembly to front subframe
    NOTE: 1x bolt, 15mm, 47 Nm (older version: 13mm, 27 Nm)
    G00649148Courtesy of TESLA, INC.
    G00649149Courtesy of TESLA, INC.

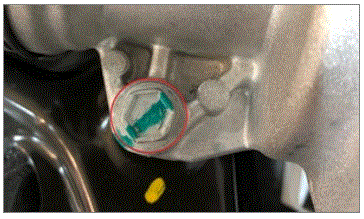

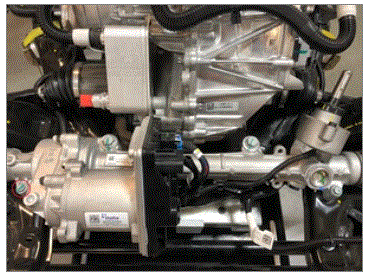

  122. Remove the front right bolt securing the steering gear assembly to front subframe
    NOTE: 1x bolt, 15mm, 47 Nm (older version: 13mm, 27 Nm)
    G00649150Courtesy of TESLA, INC.
    G00649151Courtesy of TESLA, INC.

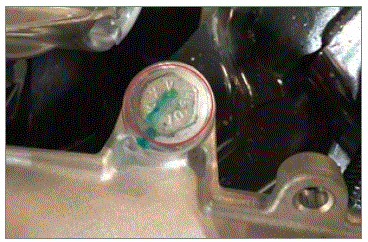

  123. Remove the rear left bolt securing the steering gear assembly to front subframe
    NOTE: 1x bolt, 18mm, 75 Nm
    G00649150Courtesy of TESLA, INC.
    G00649152Courtesy of TESLA, INC.

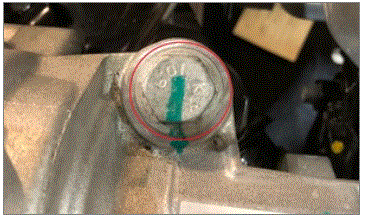

  124. Remove the rear right bolt securing the steering gear assembly to front subframe
    NOTE: 1x bolt, 18mm, 75 Nm
    G00649150Courtesy of TESLA, INC.
    G00649153Courtesy of TESLA, INC.
  125. Remove the steering gear assembly from front subframe
    G00649154Courtesy of TESLA, INC.
scientia non olet · About LEMON Manuals
