Steering Rack (Dual Motor RHD) - Remove and Replace: Install

  1. Position the new steering gear assembly onto front subframe for installation
    G00649154Courtesy of TESLA, INC.
  2. Loosely install the rear right bolt securing the steering gear assembly to front subframe
    NOTE: 1x bolt, 18mm, 75 Nm
    G00649150Courtesy of TESLA, INC.
  3. Loosely install the rear left bolt securing the steering gear assembly to front subframe
    NOTE: 1x bolt, 18mm, 75 Nm
    G00649150Courtesy of TESLA, INC.
  4. Install and torque the front right bolt securing the steering gear assembly to front subframe
    NOTE: 1x bolt, 15mm, 47 Nm (older version: 13mm, 27 Nm)
    G00649150Courtesy of TESLA, INC.
  5. Install and torque the front left bolt securing the steering gear assembly to front subframe
    NOTE: 1x bolt, 15mm, 47 Nm (older version: 13mm, 27 Nm)
    G00649150Courtesy of TESLA, INC.

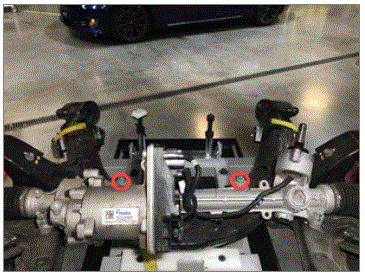

  6. Torque inner bolts securing the steering gear assembly to front subframe
    NOTE: 2x bolts, 18mm, 75 Nm
    G00649155Courtesy of TESLA, INC.

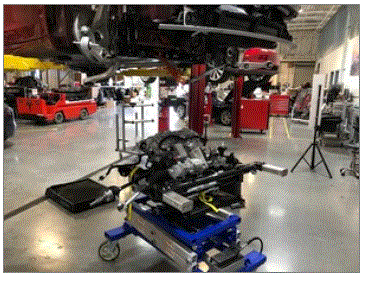

  7. Position lifting tool and subframe under vehicle for installation
    G00649156Courtesy of TESLA, INC.
  8. Connect air supply to subframe lifting tool
    G00649123Courtesy of TESLA, INC.

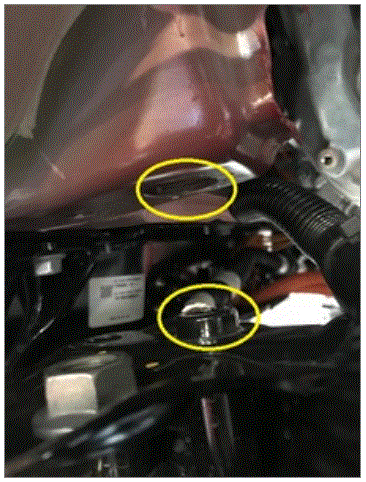

  9. Raise support tool until the front subframe and body meet
    NOTE: Recommend assistance, Guide the motor mount bushings into the motor mount isolators as the lift is being raised into position, Make sure to line up the rear locating pins on the subframe
    G00649157Courtesy of TESLA, INC.
    G00649158Courtesy of TESLA, INC.

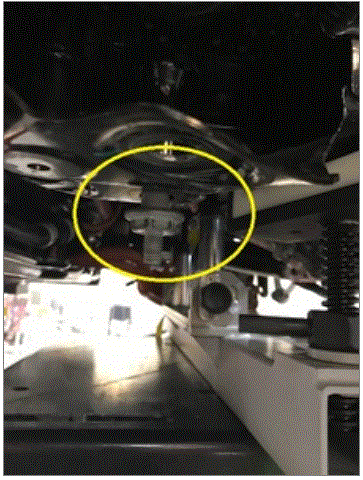

  10. Loosely install the RH larger bolt securing rear portion of the front subframe to body
    NOTE: 1x bolt, 21mm, 125 Nm, Install new bolt
    G00649159Courtesy of TESLA, INC.

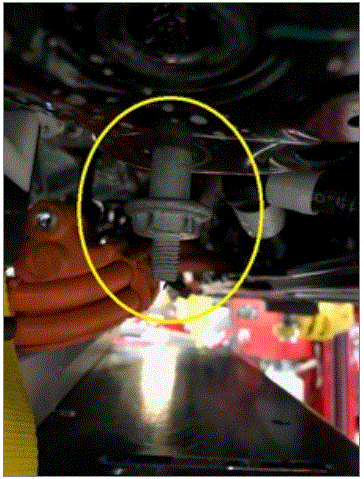

  11. Loosely install the LH larger bolt securing rear portion of the front subframe to body
    NOTE: 1x bolt, 21mm, 125 Nm, Install new bolt
    G00649160Courtesy of TESLA, INC.

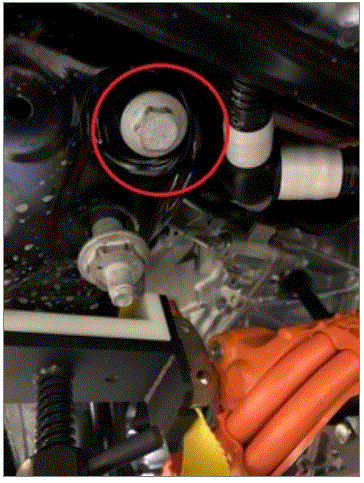

  12. Loosely install the LH smaller bolt securing rear portion of the front subframe to body
    NOTE: 1x bolt, 15mm, 50 Nm, Install new bolt
    G00649161Courtesy of TESLA, INC.

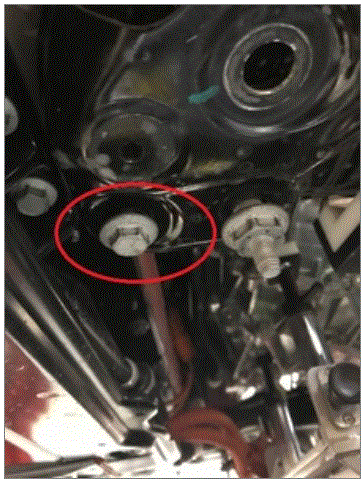

  13. Loosely install the RH smaller bolt securing rear portion of the front subframe to body
    NOTE: 1x bolt, 15mm, 50 Nm, Install new bolt
    G00649162Courtesy of TESLA, INC.

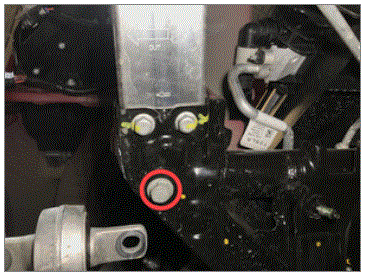

  14. Loosely install RH bolt securing the front portion of the front subframe to body
    NOTE: 1x bolt, 18mm, 72 Nm, Install new bolt, Adjust subframe lifting tool if necessary
    G00649163Courtesy of TESLA, INC.

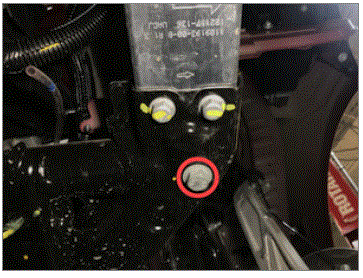

  15. Loosely install LH bolt securing the front portion of the front subframe to body
    NOTE: 1x bolt, 18mm, 72 Nm, Install new bolt, Adjust subframe lifting tool if necessary
    G00649164Courtesy of TESLA, INC.

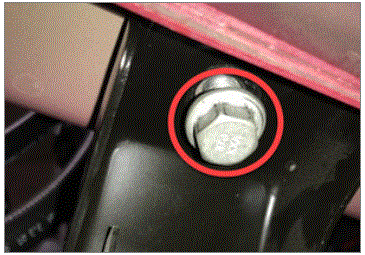

  16. Loosely install bolt securing the LH mid mount to body
    NOTE: 1x bolt, 15mm, 50 Nm, Install new bolt
    G00649165Courtesy of TESLA, INC.

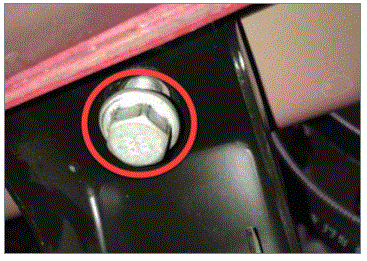

  17. Loosely install bolt securing the RH mid mount to body
    NOTE: 1x bolt, 15mm, 50 Nm, Install new bolt
    G00649166Courtesy of TESLA, INC.

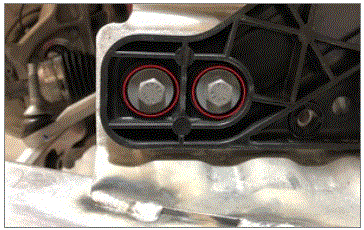

  18. Loosely install the bolts securing front end carrier to RH front subframe crash can assembly
    NOTE: 2x bolts, 13mm, 16 Nm
    G00649167Courtesy of TESLA, INC.
  19. Loosely install the bolts securing front end carrier to LH front subframe crash can assembly
    NOTE: 2x bolts, 13mm, 16 Nm
    G00649168Courtesy of TESLA, INC.

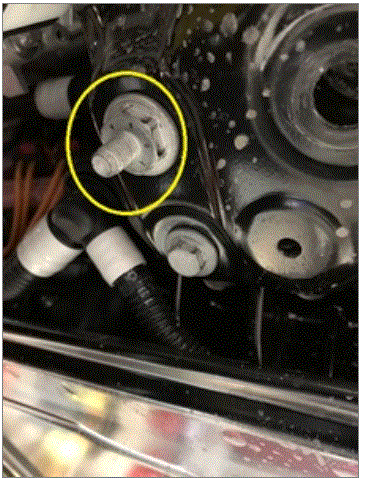

  20. Torque the LH larger bolt securing the rear portion of the front subframe to body
    NOTE: 1x bolt, 21mm, 125 Nm
    G00649169Courtesy of TESLA, INC.

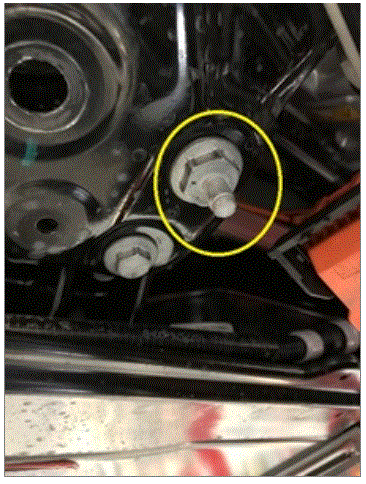

  21. Torque the RH larger bolt securing the rear portion of the front subframe to body
    NOTE: 1x bolt, 21mm, 125 Nm
    G00649170Courtesy of TESLA, INC.

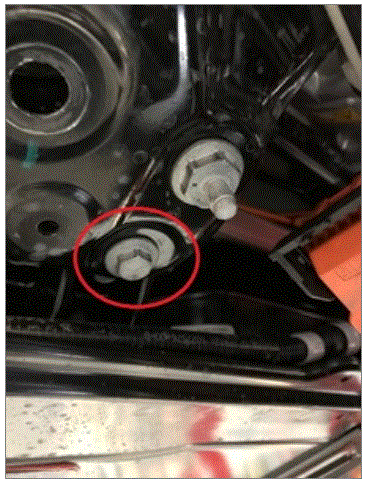

  22. Torque the RH smaller bolt securing the rear portion of the front subframe to body
    NOTE: 1x bolt, 15mm, 50 Nm
    G00649171Courtesy of TESLA, INC.

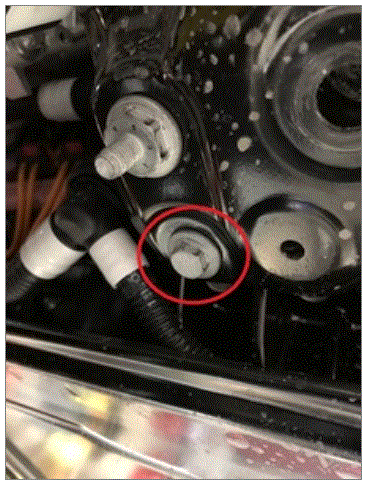

  23. Torque the LH smaller bolt securing the rear portion of the front subframe to body
    NOTE: 1x bolt, 15mm, 50 Nm
    G00649172Courtesy of TESLA, INC.
  24. Torque the LH bolt securing the front portion of the front subframe to body
    NOTE: 1x bolt, 18mm, 72 Nm
    G00649164Courtesy of TESLA, INC.
  25. Torque the RH bolt securing the front portion of the front subframe to body
    NOTE: 1x bolt, 18mm, 72 Nm
    G00649163Courtesy of TESLA, INC.
  26. Torque the bolt securing the LH mid mount to body
    NOTE: 1x bolt, 15mm, 50 Nm
    G00649165Courtesy of TESLA, INC.
  27. Torque the bolt securing the RH mid mount to body
    NOTE: 1x bolt, 15mm, 50 Nm
    G00649166Courtesy of TESLA, INC.
  28. Torque the bolts securing front end carrier to RH front subframe crash can assembly
    NOTE: 2x bolts, 13mm, 16 Nm
    G00649167Courtesy of TESLA, INC.

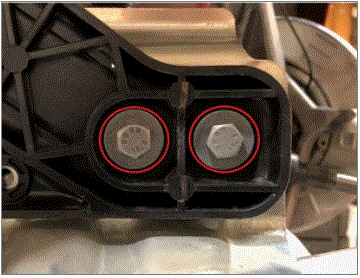

  29. Torque the bolts securing front end carrier to LH front subframe crash can assembly
    NOTE: 2x bolts, 13mm, 16 Nm
    G00649168Courtesy of TESLA, INC.

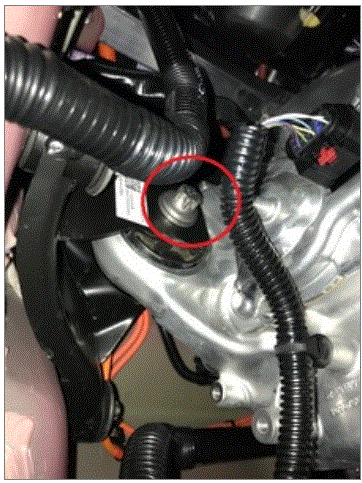

  30. Install bolt securing the RH motor mount to the RH motor mount bracket
    NOTE: 1x bolt, E18, 105 Nm, May need to lift rear of the motor to line up the bolt holes
    G00649173Courtesy of TESLA, INC.

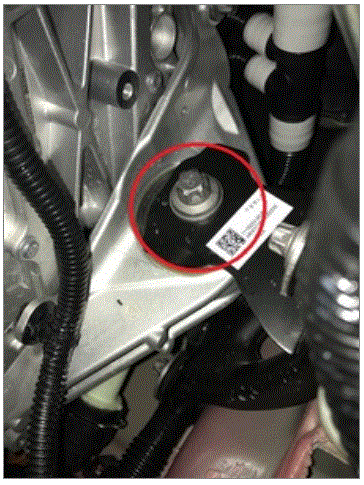

  31. Install bolt securing the LH motor mount to the LH motor mount bracket
    NOTE: 1x bolt, E18, 105 Nm, May need to lift rear of the motor to line up the bolt holes
    G00649174Courtesy of TESLA, INC.

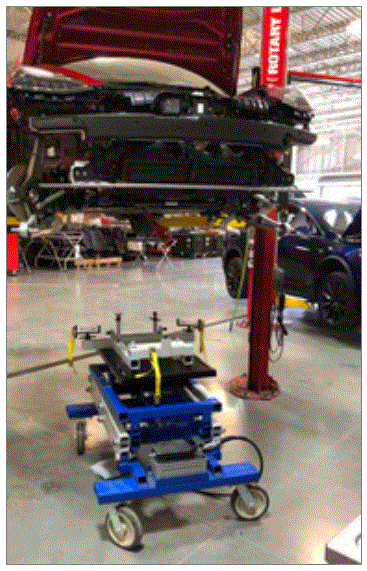

  32. Lower the subframe lifting tool from the vehicle
    NOTE: Unlatch the subframe lifting tool from front subframe
    G00649175Courtesy of TESLA, INC.
  33. Disconnect air supply from subframe lifting tool
    G00649146Courtesy of TESLA, INC.
  34. Remove the subframe lifting tool from under vehicle
    G00649175Courtesy of TESLA, INC.
  35. Apply Molykote M-77 to outboard side of halfshaft
    NOTE: Clean if necessary, Apply no more than 1 gram to halfshaft
    G00649176Courtesy of TESLA, INC.

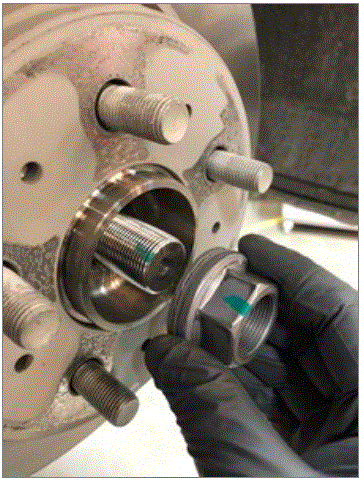

  36. Loosely install nut securing RH front halfshaft into RH front hub assembly
    NOTE: 1x nut, 1x nut, 32mm, 245 Nm, Torque at later step, Install new halfshaft nut and washer
    G00649177Courtesy of TESLA, INC.
  37. Apply Molykote M-77 to outboard side of halfshaft
    NOTE: Clean if necessary, Apply no more than 1 gram to halfshaft
    G00649176Courtesy of TESLA, INC.

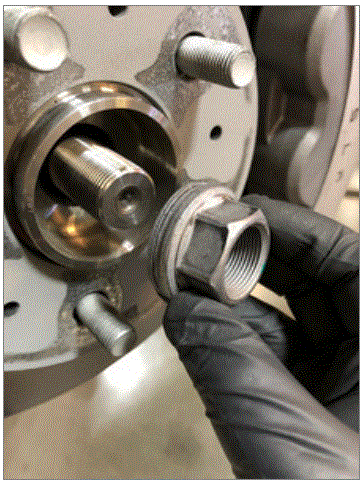

  38. Loosely install nut securing LH front halfshaft to LH front hub assembly
    NOTE: 1x nut, 1x nut, 32mm, 245 Nm, Torque at later step, Install new halfshaft nut and washer
    G00649178Courtesy of TESLA, INC.
  39. Loosely install bolts securing RH front lower lateral link to front subframe
    NOTE: 2x bolts, 21mm, 115 Nm, Recommend assistance if necessary, Use punch tool to align the fasteners
    G00649104Courtesy of TESLA, INC.

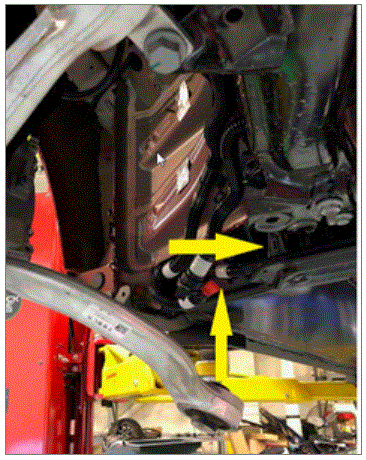

  40. Install the RH front lower comp link to front subframe
    G00649179Courtesy of TESLA, INC.
  41. Install bolt and nut securing RH front lower comp link to front subframe
    NOTE: 1x bolt, 21mm, 1x nut, 21mm, 115 Nm, Recommend assistance if necessary
    G00649101Courtesy of TESLA, INC.
  42. Install the RH front lower lateral link and loosely install bolt and nut securing RH strut to lower control arm
    NOTE: 1x bolt, 21mm, 1x nut, 21mm, 106 Nm
    G00649105Courtesy of TESLA, INC.

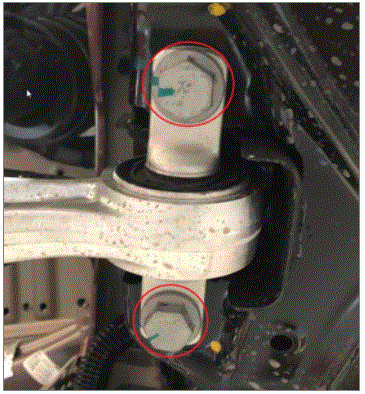

  43. Torque bolts securing RH front lower lateral link to front subframe
    NOTE: 2x bolts, 21mm, 115 Nm
    G00649180Courtesy of TESLA, INC.
  44. Loosely install bolts securing LH front lower lateral link to front subframe
    NOTE: 2x bolts, 21mm, 115 Nm, Recommend assistance if necessary, Use punch tool to align the fasteners
    G00649097Courtesy of TESLA, INC.

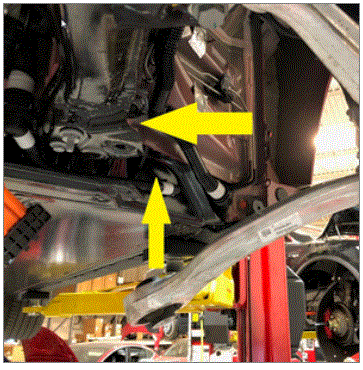

  45. Install LH front lower comp link to front subframe
    G00649181Courtesy of TESLA, INC.
  46. Install bolt and nut securing LH front lower comp link to front subframe
    NOTE: 1x bolt, 21mm, 1x nut, 21mm, 115 Nm, Recommend assistance if necessary
    G00649094Courtesy of TESLA, INC.

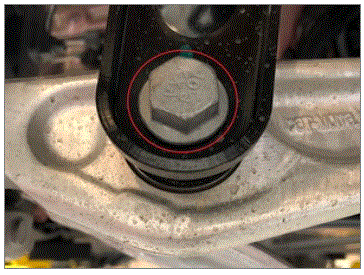

  47. Install LH front lower lateral link and loosely install bolt and nut securing LH strut to lower lateral link
    NOTE: 1x bolt, 21mm, 1x nut, 21mm, 106 Nm
    G00649182Courtesy of TESLA, INC.

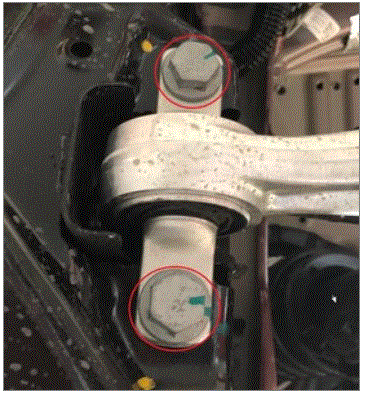

  48. Torque bolts securing LH front lower lateral link to front subframe
    NOTE: 2x bolts, 21mm, 115 Nm
    G00649183Courtesy of TESLA, INC.

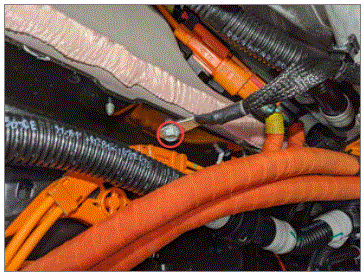

  49. Install FDU ground strap and bolt to HV battery
    NOTE: 1x bolt, 10mm, 10 Nm
    G00649184Courtesy of TESLA, INC.

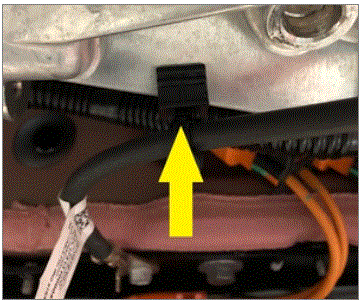

  50. Install FDU ground strap harness clip to FDU
    NOTE: 1x clip
    G00649185Courtesy of TESLA, INC.
  51. Install bolt securing FDU ground strap to FDU
    NOTE: 1x bolt, 10mm, 6 Nm
    G00649090Courtesy of TESLA, INC.

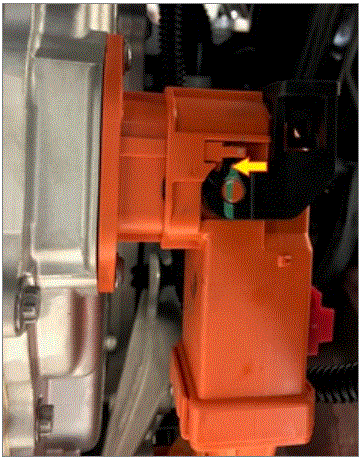

  52. Install FDU HV harness connector to FDU
    NOTE: 1x connector, Ensure the connector is installed far enough on the FDU manifold so the manifold alignment tooth is making contact with the connector lever
    G00649186Courtesy of TESLA, INC.

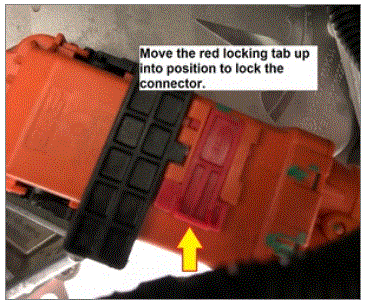

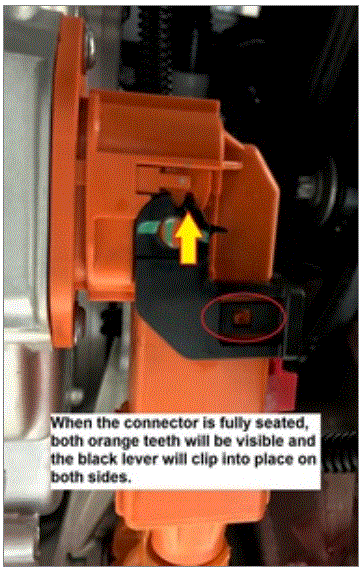

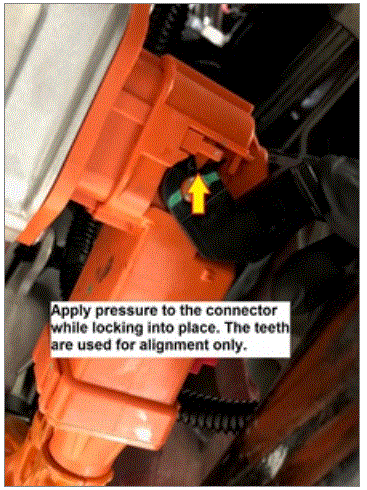

  53. Connect the FDU HV harness connector and lock the release lever
    NOTE: 1x clip, Apply slight pressure to the connector as the lever is rotated into position, Move the lever to the closed position slowly and ensure the lever teeth and manifold teeth are properly meshed, There should be a very small gap between the manifold and the connector when fully seated
    G00649187Courtesy of TESLA, INC.
    G00649188Courtesy of TESLA, INC.
    G00649189Courtesy of TESLA, INC.

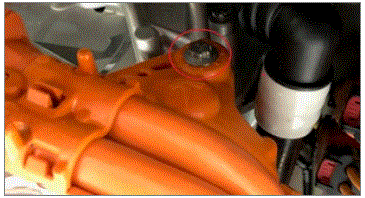

  54. Install bolt securing FDU HV harness to FDU
    NOTE: 1x bolt, EP10, 10 Nm
    G00649190Courtesy of TESLA, INC.
  55. Position coolant drain container underneath RH front of HV battery
    G00649079Courtesy of TESLA, INC.
  56. Remove plugs and connect FDU coolant inlet hose at the RH side of vehicle
    NOTE: 1x spring clip
    G00649081Courtesy of TESLA, INC.

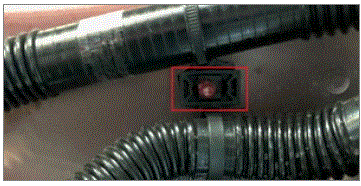

  57. Install the hose retaining clip for the RH side coolant hose
    NOTE: 1x clip
    G00649191Courtesy of TESLA, INC.
  58. Remove coolant drain container from underneath vehicle
    G00649082Courtesy of TESLA, INC.
  59. Lower vehicle partially and set onto locks
    NOTE: Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height
    G00649050Courtesy of TESLA, INC.
    G00649043Courtesy of TESLA, INC.

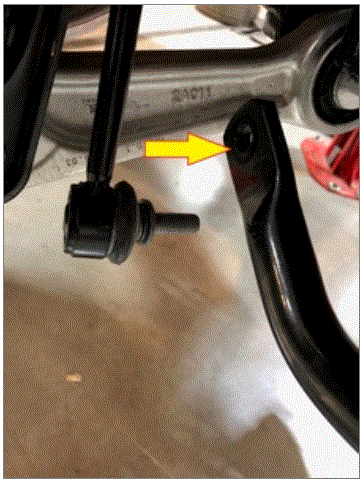

  60. Position the RH front stabar link assembly to front stabar
    NOTE: May be necessary to pull down on the sway bar to allow the end link to engage
    G00649192Courtesy of TESLA, INC.

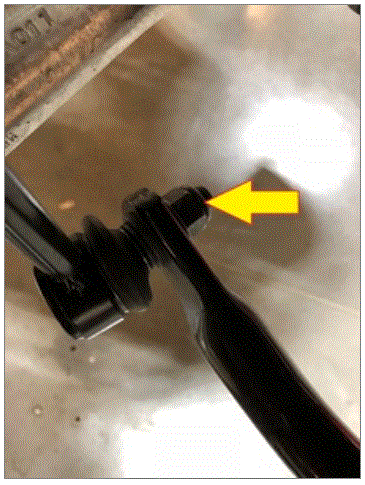

  61. Install nut securing front stabar to RH front stabar link assembly
    NOTE: 1x nyloc nut, 18mm, 98 Nm, Install new nyloc nut, Counter hold ball joint with T40, Mark with paint pen
    G00649193Courtesy of TESLA, INC.

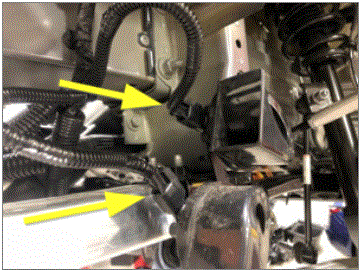

  62. Connector horn connectors
    NOTE: 2x connectors
    G00649194Courtesy of TESLA, INC.

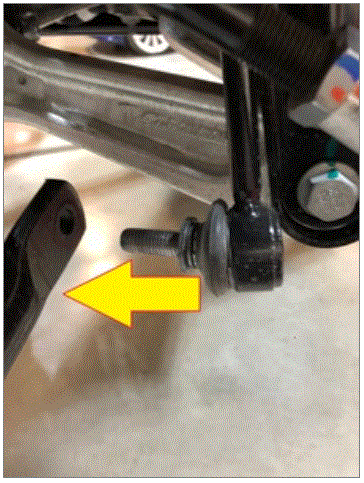

  63. Position LH front stabar link assembly to front stabar
    NOTE: May be necessary to pull down on the sway bar to allow the end link to engage
    G00649195Courtesy of TESLA, INC.

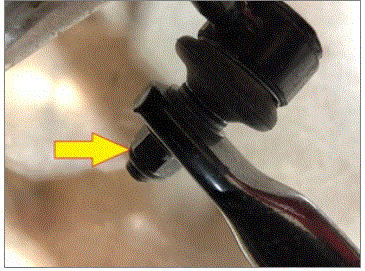

  64. Install nut securing front stabar link to LH front stabar
    NOTE: 1x nyloc nut, 18mm, 98 Nm, Install new nyloc nut, Counter hold ball joint with T40, Mark with paint pen
    G00649196Courtesy of TESLA, INC.

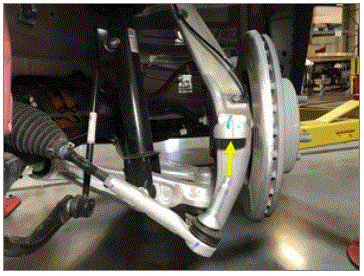

  65. Position LH front tie rod end to LH front knuckle
    NOTE: Disperse pressure of steering gear to LH side
    G00649197Courtesy of TESLA, INC.
  66. Install nut securing the LH tie rod end to LH front knuckle
    NOTE: 1x nyloc nut, 22mm, 180 Nm, Install new nyloc nut
    G00649069Courtesy of TESLA, INC.

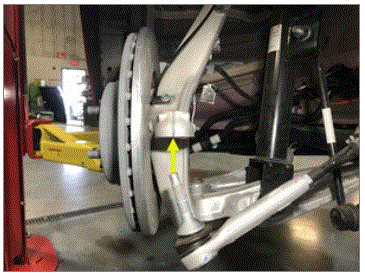

  67. Position RH front tie rod end to RH front knuckle
    G00649198Courtesy of TESLA, INC.
  68. Install nut securing RH front tie rod end to RH front knuckle
    NOTE: 1x nyloc nut, 22mm, 180 Nm, Install new nyloc nut
    G00649074Courtesy of TESLA, INC.

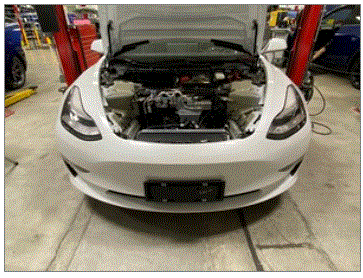

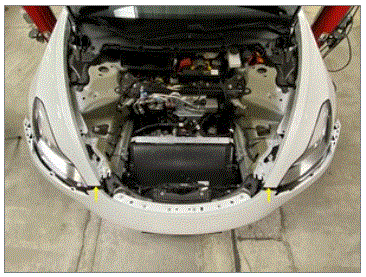

  69. Install front fascia onto vehicle and secure front clips and both front corners
    NOTE: 8x clips, Recommend assistance, Use caution not to damage headlamp or fender during installation
    G00649199Courtesy of TESLA, INC.
    G00649065Courtesy of TESLA, INC.
    G00649066Courtesy of TESLA, INC.
    G00649067Courtesy of TESLA, INC.
    G00649200Courtesy of TESLA, INC.
  70. Connect 12V harness for front fascia
    NOTE: 1x connector, Engage the locking tab
    G00649061Courtesy of TESLA, INC.
    G00649062Courtesy of TESLA, INC.

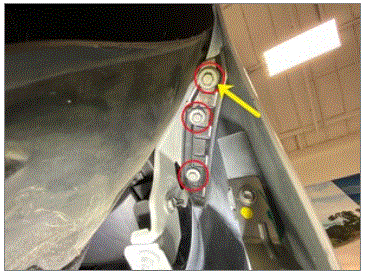

  71. Install rear bolt and tighten all three bolts securing RH front corner of front fascia to fender
    NOTE: 1x bolt, 10mm, 3 Nm, 2x bolts, 10mm, 4 Nm, Most forward bolts, Align fascia to fender before tightening
    G00649201Courtesy of TESLA, INC.

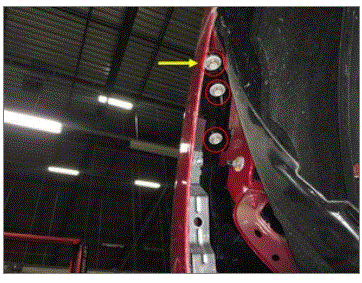

  72. Install rear bolt and tighten all three bolts securing LH front corner of front fascia to fender
    NOTE: 1x bolts, 10mm, 3 Nm, 2x bolts, 10mm, 4 Nm, Most forward bolts, Align fascia to fender before tightening
    G00649202Courtesy of TESLA, INC.
  73. Position the RH front wheel liner to body for installation
    G00649055Courtesy of TESLA, INC.
  74. Install the push clips for the RH front wheel liner
    NOTE: 16x push clips, The number of clips on newer vehicles may vary
    G00649052Courtesy of TESLA, INC.
  75. Install RH front wheel
    NOTE: 5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool, Torque at later step
    G00649046Courtesy of TESLA, INC.
  76. Position LH front wheel liner to vehicle for installation
    G00649051Courtesy of TESLA, INC.
  77. Install the push clips for the LH front wheel liner
    NOTE: 16x push clips, The number of clips on newer vehicles may vary
    G00649052Courtesy of TESLA, INC.
    G00649053Courtesy of TESLA, INC.
  78. Install LH front wheel
    NOTE: 5x nuts, 21mm, 175 Nm, Start lug nuts by hand before using power tool
    G00649044Courtesy of TESLA, INC.
  79. Raise vehicle fully and lower lift onto locks
    NOTE: Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
    G00649042Courtesy of TESLA, INC.
    G00649043Courtesy of TESLA, INC.
  80. Position the front aero shield to vehicle and install nuts
    NOTE: 2x nuts, 15mm, 5 Nm
    G00649049Courtesy of TESLA, INC.

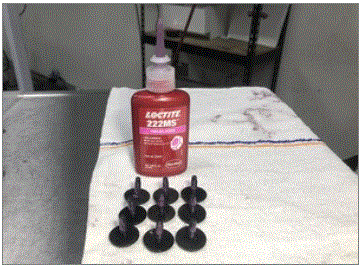

  81. Apply Loctite 222 onto front aero shield bolts and install outer fasteners to front aero shield
    NOTE: 9x bolts, 10mm, 5 Nm
    G00649048Courtesy of TESLA, INC.
    G00649203Courtesy of TESLA, INC.
  82. Lower vehicle until tires are touching the ground
    NOTE: Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
    G00649042Courtesy of TESLA, INC.
    G00649050Courtesy of TESLA, INC.
    G00649043Courtesy of TESLA, INC.
  83. Install fasteners holding upper portion of front fascia to vehicle
    NOTE: 6x bolts, 10mm, 4 Nm
    G00649041Courtesy of TESLA, INC.

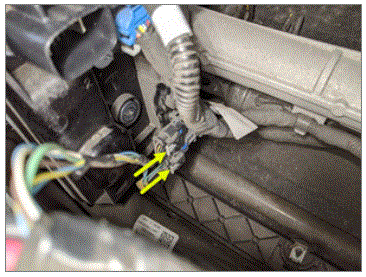

  84. Connect the logic connectors at the steering gear area
    NOTE: 2x connectors, Engage locking tabs
    G00649204Courtesy of TESLA, INC.

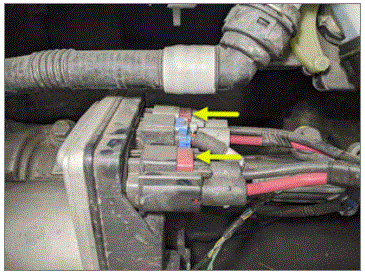

  85. Connect the steering gear assembly connectors
    NOTE: 2x connectors, Engage locking tabs
    G00649205Courtesy of TESLA, INC.
  86. Connect the FDU logic connector at the LH frame rail
    NOTE: 1x connector, Engage locking tab
    G00649113Courtesy of TESLA, INC.

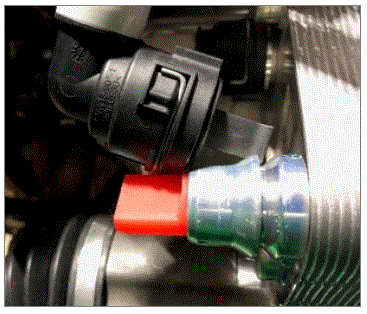

  87. Remove plugs and connect coolant hose to heat exchanger
    NOTE: 1x spring clip
    G00649206Courtesy of TESLA, INC.
  88. Connect the coolant hose for the FDU heat exchanger to the superbottle
    NOTE: 1x spring clip
    G00649111Courtesy of TESLA, INC.

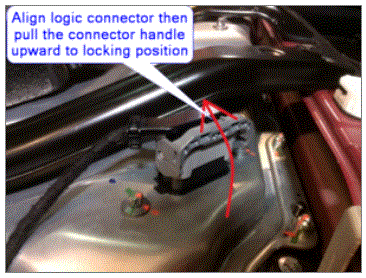

  89. Remove logic cap and connect the HVC logic connector
    NOTE: 1x connector, 1x cap, Align connector then pull the handle to locking position get connector fully seated
    G00649014Courtesy of TESLA, INC.
    G00649207Courtesy of TESLA, INC.

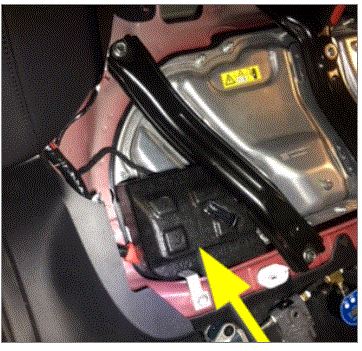

  90. Install 12V cap to penthouse
    NOTE: 1x cap
    G00649208Courtesy of TESLA, INC.
  91. Connect 12V negative terminal
    NOTE: 1x nut, 10mm, 6 Nm
    G00649011Courtesy of TESLA, INC.

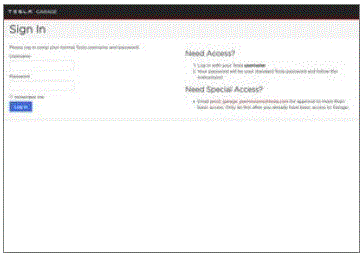

  92. Type "https://garage.vn.teslamotors.com/_x000A_vehicles" in search field and enter your credentials
    G00649210Courtesy of TESLA, INC.

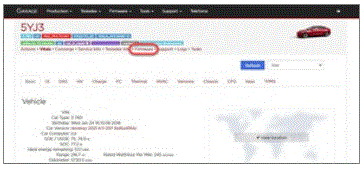

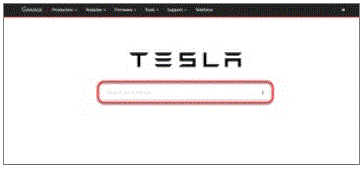

  93. Enter the VIN and select the "Firmware" tab
    G00649211Courtesy of TESLA, INC.
    G00649212Courtesy of TESLA, INC.

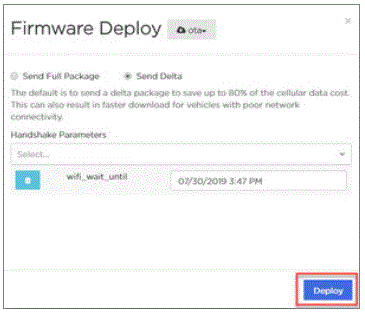

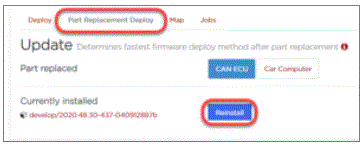

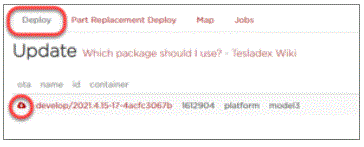

  94. Select Part Replacement Deploy tab and select Reinstall
    NOTE: If new FW package is required, select Deploy tab and click on OTA icon, If there are no firmware packages available there may already be a package staged on the vehicle, If this is the case, skip to step for selecting the clock on the center display
    G00649213Courtesy of TESLA, INC.
    G00649214Courtesy of TESLA, INC.
    G00649215Courtesy of TESLA, INC.
  95. Select "Jobs" tab and confirm firmware is downloading
    G00649216Courtesy of TESLA, INC.

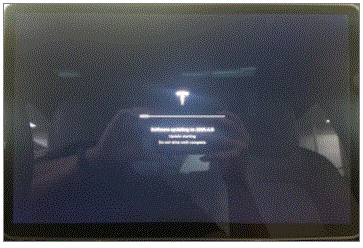

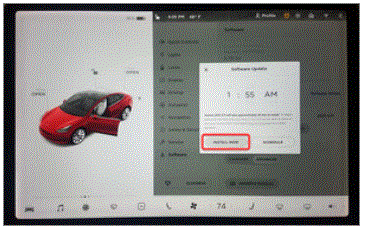

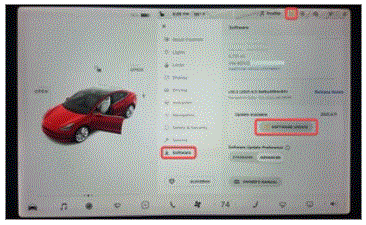

  96. Select the clock on the center display, or go to the Software tab, then select install now to start firmware update
    NOTE: Tap center display next to software update window until clock runs down to 0, After displayed installation time check the center display and ensure the firmware package was successfully installed
    G00649217Courtesy of TESLA, INC.
    G00649218Courtesy of TESLA, INC.
    G00649219Courtesy of TESLA, INC.

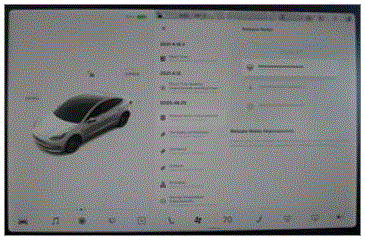

  97. Once firmware redeploy is complete, Verify release notes are present on center display
    NOTE: If the redeploy fails you may receive an error message on UI
    G00649220Courtesy of TESLA, INC.

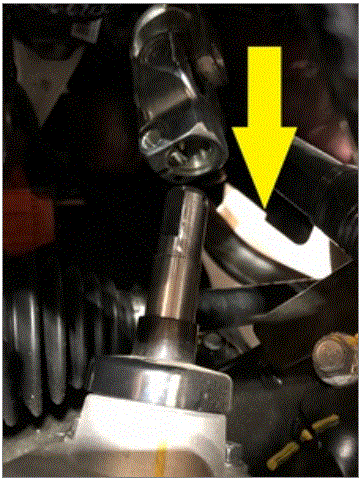

  98. Slide the intermediate shaft assembly downward to install it to the steering gear assembly
    NOTE: Ensure the intermediate shaft is aligned and fully seated, Recommend assistance if necessary to align the shaft to steering gear
    G00649221Courtesy of TESLA, INC.
  99. Install bolt securing the intermediate shaft assembly to the steering gear assembly
    NOTE: 1x bolt, 13mm, 18 Nm
    G00649037Courtesy of TESLA, INC.
  100. Torque RH front wheel
    NOTE: 5x nuts, 21mm, 175 Nm
    G00649025Courtesy of TESLA, INC.
  101. Torque LH front wheel
    NOTE: 5x nuts, 21mm, 175 Nm
    G00649025Courtesy of TESLA, INC.

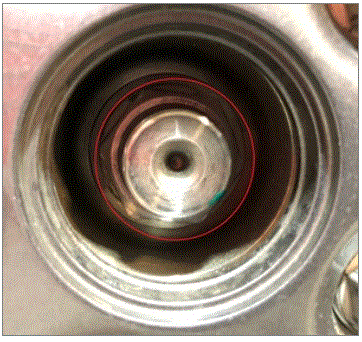

  102. Torque RH front halfshaft nut
    NOTE: 1x nut, 32mm, 245 Nm
    G00649222Courtesy of TESLA, INC.
  103. Torque LH front halfshaft nut
    NOTE: 1x nut, 32mm, 245 Nm
    G00649222Courtesy of TESLA, INC.

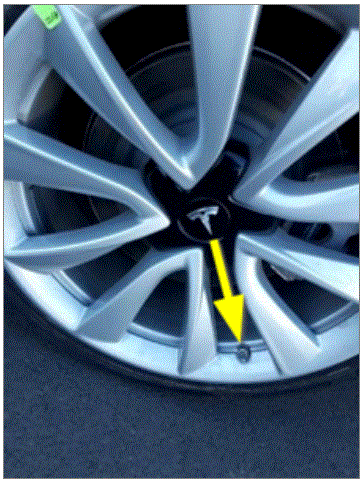

  104. Install the LH front wheel center cap
    NOTE: 1x cap
    G00649223Courtesy of TESLA, INC.
  105. Install RH rear wheel center cap
    NOTE: 1x cap, Verify emblem is aligned with valve stem
    G00649223Courtesy of TESLA, INC.

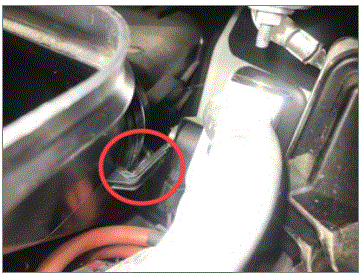

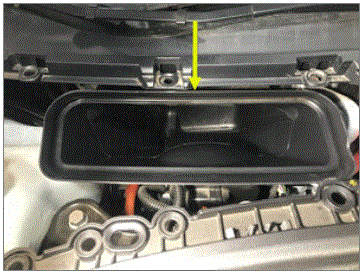

  106. Remove HVAC plenum outer duct
    NOTE: 2x clips
    G00649224Courtesy of TESLA, INC.
    G00649225Courtesy of TESLA, INC.
    G00649226Courtesy of TESLA, INC.

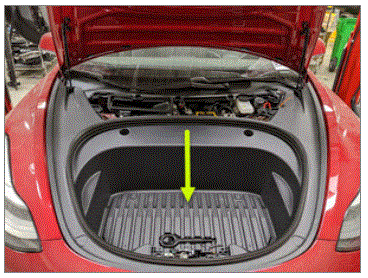

  107. Install frunk assembly to vehicle
    NOTE: 12x clips, Make sure frunk assembly is fully seated onto the clips, Number of clips may vary on older vehicles
    G00649034Courtesy of TESLA, INC.
    G00649227Courtesy of TESLA, INC.
  108. Install fasteners securing the frunk assembly
    NOTE: 7x bolts, 10mm, 5 Nm, Lower the RBN covers after installing upper fasteners, Newer vehicles may not be equipped with covers
    G00649033Courtesy of TESLA, INC.

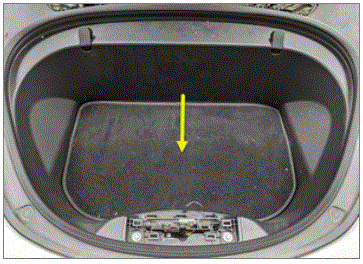

  109. Install frunk assembly carpet
    G00649228Courtesy of TESLA, INC.

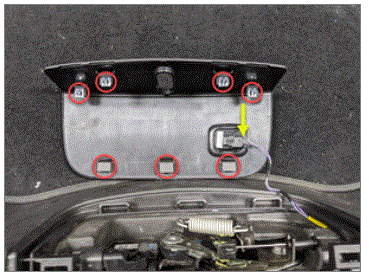

  110. Install frunk close out panel
    NOTE: 4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align the 3x tabs then push downward to secure clips
    G00649229Courtesy of TESLA, INC.

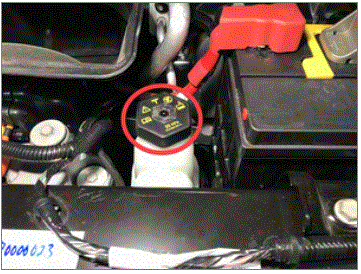

  111. Remove superbottle cap
    G00649230Courtesy of TESLA, INC.

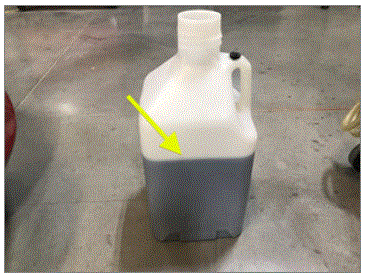

  112. Fill container with at least 15L of coolant
    G00649231Courtesy of TESLA, INC.

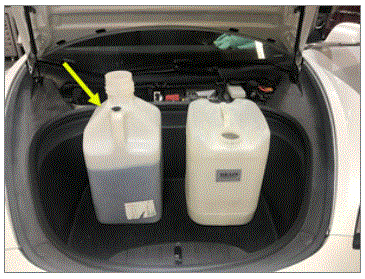

  113. Place filled coolant container into front storage area
    G00649232Courtesy of TESLA, INC.

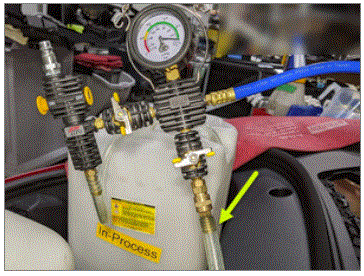

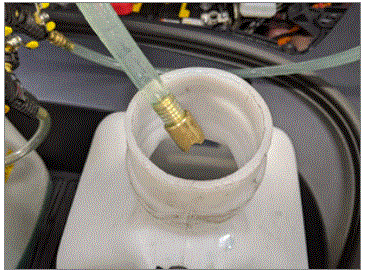

  114. Place refill hose inside filled coolant container
    NOTE: Make sure hose end is fully submerged into coolant
    G00649233Courtesy of TESLA, INC.
    G00649234Courtesy of TESLA, INC.

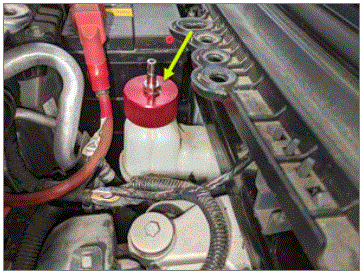

  115. Install vacuum refill cap onto coolant bottle assembly
    G00649235Courtesy of TESLA, INC.

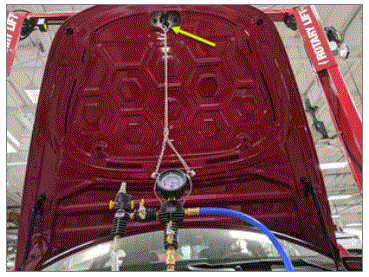

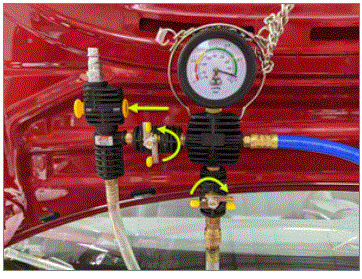

  116. Setup vacuum refill tool
    NOTE: Verify all valves on refill tool are in the closed position, See image for clarity
    G00649236Courtesy of TESLA, INC.
    G00649237Courtesy of TESLA, INC.

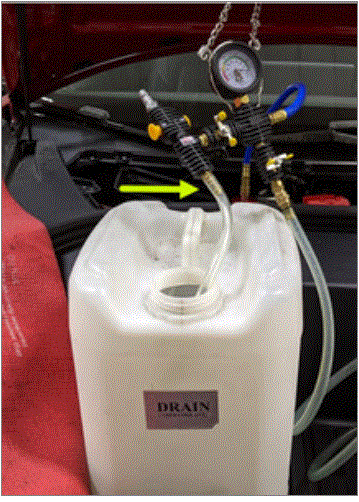

  117. Position overflow hose into empty container
    G00649238Courtesy of TESLA, INC.
  118. Connect shop air supply to coolant refill tool
    NOTE: If not already done, Verify refill valve is set to off
    G00649239Courtesy of TESLA, INC.

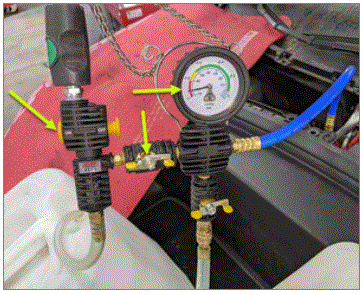

  119. Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve
    NOTE: Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed
    G00649240Courtesy of TESLA, INC.
    G00649241Courtesy of TESLA, INC.

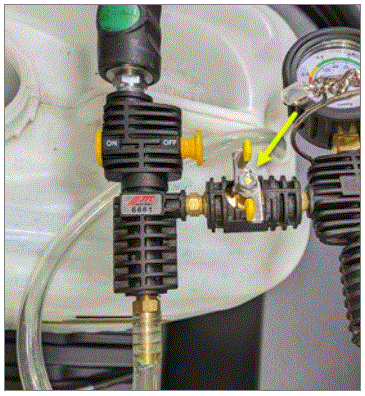

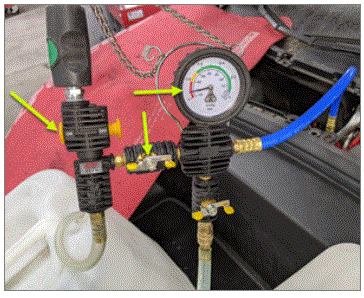

  120. Open air inlet valve to draw a vacuum, Once gauge stabilizes, Fully close valve
    NOTE: Gauge stabilizes roughly (60-70 cmHg), Vacuum should not drop after the valves are closed
    G00649242Courtesy of TESLA, INC.
    G00649243Courtesy of TESLA, INC.

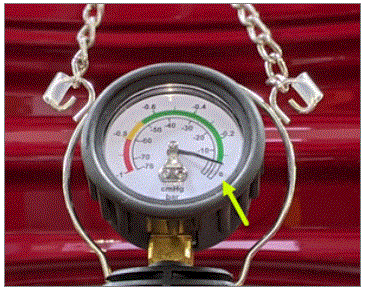

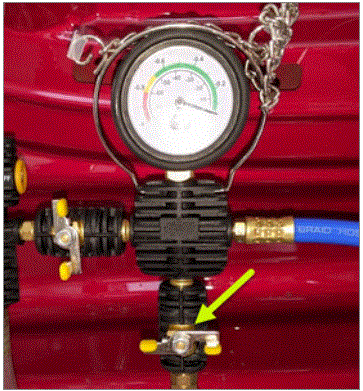

  121. Once the gauge reads zero, close the refill valve
    G00649244Courtesy of TESLA, INC.
    G00649245Courtesy of TESLA, INC.
  122. Once the gauge reads zero, close the refill valve
    G00649244Courtesy of TESLA, INC.
    G00649245Courtesy of TESLA, INC.

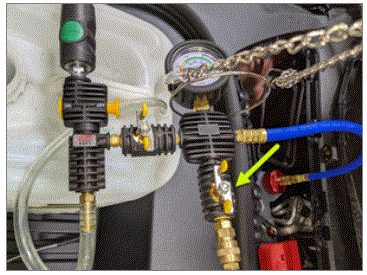

  123. Slowly open the refill valve to allow coolant to be drawn into the system
    NOTE: Make sure hose end of refill hose is fully submerged during entire process
    G00649246Courtesy of TESLA, INC.
  124. Once the gauge reads zero, close the refill valve
    G00649244Courtesy of TESLA, INC.
    G00649245Courtesy of TESLA, INC.

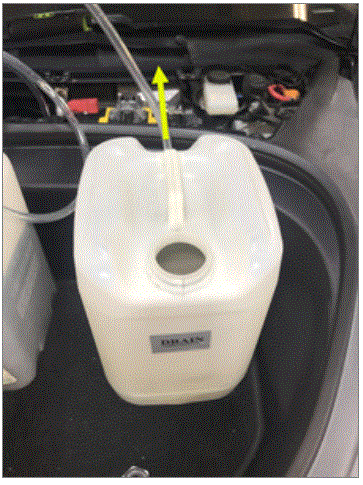

  125. Remove coolant overflow hose from coolant container
    G00649247Courtesy of TESLA, INC.

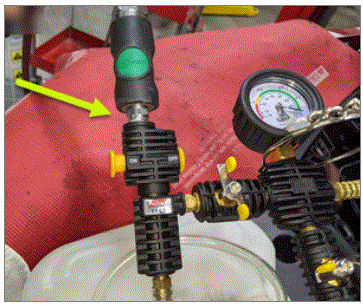

  126. Disconnect shop air supply from coolant refill tool
    G00649248Courtesy of TESLA, INC.

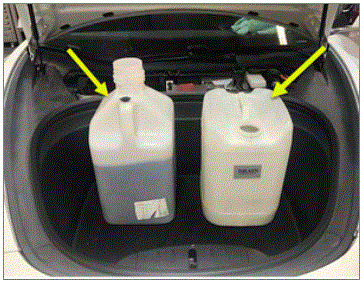

  127. Remove both coolant containers from inside underhood area
    G00649249Courtesy of TESLA, INC.
  128. Select "Actions/Autodiag" tab and search for "vcfront"
    G00649250Courtesy of TESLA, INC.

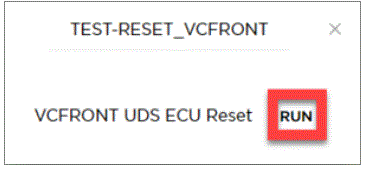

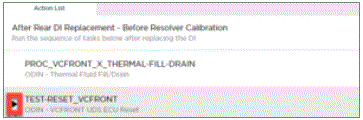

  129. Select TEST-RESET_VCFRONT, click "Run", and allow routine to complete
    NOTE: Select 'X' at top right of window to close once complete
    G00649251Courtesy of TESLA, INC.
    G00649252Courtesy of TESLA, INC.

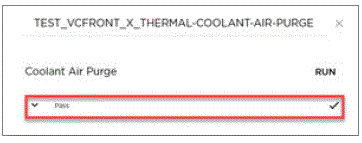

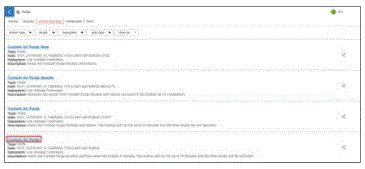

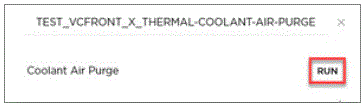

  130. Select 'TEST_VCFRONT_X_THERMAL-COOLANT-AIR-PURGE ', click 'Run', and allow routine to complete_x000A__x000A_
    NOTE: Make sure vehicle is not in drive state, Plan is still running despite the stop message, Coolant pumps will be audible, Test lasts approximately 10 mins, Speeds can be monitored in garage under PT Thermal tab, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valve between SERIES and PARALLEL, Putting vehicle into drive state will stop this routine, If speeds hover at 7000 RPM, that means the pumps are air locked, perform vacuum fill again, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle, Select 'X' at top right of window to close once complete_x000A_
    G00649253Courtesy of TESLA, INC.
    G00649254Courtesy of TESLA, INC.
    G00649255Courtesy of TESLA, INC.

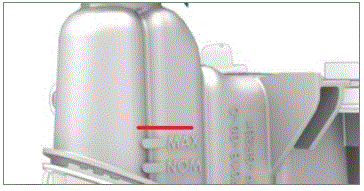

  131. Inspect coolant level and top off as necessary
    NOTE: Ensure that the fluid level is 5mm above the Max line
    G00649256Courtesy of TESLA, INC.
  132. Install superbottle cap
    G00649230Courtesy of TESLA, INC.

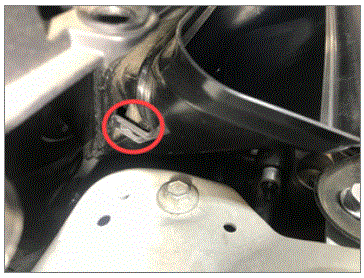

  133. Install HVAC plenum outer duct
    NOTE: 2x clips, Align tab at bottom of duct before securing clips
    G00649224Courtesy of TESLA, INC.
    G00649225Courtesy of TESLA, INC.
    G00649226Courtesy of TESLA, INC.
  134. Install cabin intake upper duct assembly
    NOTE: 3x clips, Older vehicles may be equipped with 4x clips
    G00649029Courtesy of TESLA, INC.

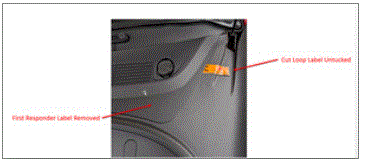

  135. Install rear apron
    NOTE: 12x clips, If present untuck cut loop label and make sure it is still visible after apron is installed, Later builds may not have label
    G00649008Courtesy of TESLA, INC.
    G00649257Courtesy of TESLA, INC.
  136. Close hood

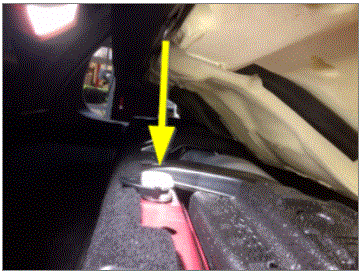

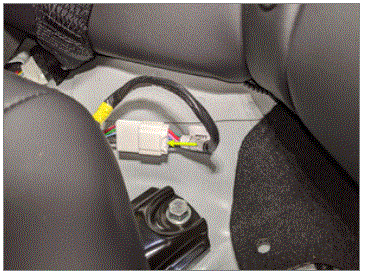

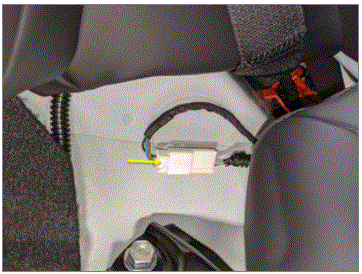

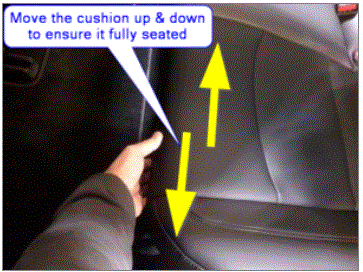

  137. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    NOTE: 2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push & pull test near clips
    G00649258Courtesy of TESLA, INC.
    G00649259Courtesy of TESLA, INC.
    G00649260Courtesy of TESLA, INC.
    G00649261Courtesy of TESLA, INC.
  138. Move RH front seat to original position
    G00649001Courtesy of TESLA, INC.

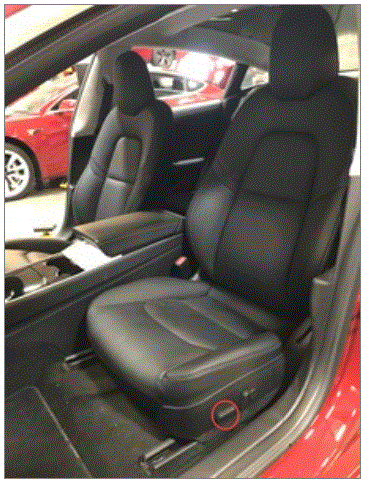

  139. Move LH front seat to original position
    G00649262Courtesy of TESLA, INC.

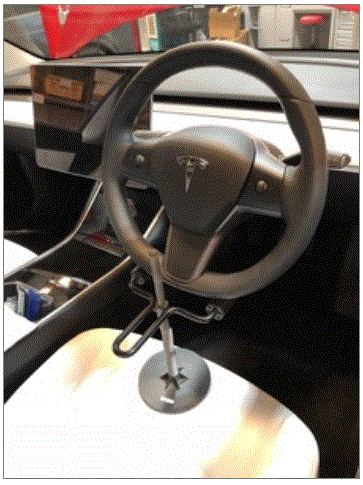

  140. Remove the steering wheel holder
    G00649263Courtesy of TESLA, INC.
  141. Remove lift arms from below vehicle
    NOTE: Lower lift arms fully and remove from under vehicle as necessary
  142. Raise all the windows
  143. Close all four doors
    NOTE: Unlatch rear doors before closing
  144. Perform a four wheel alignment. See FOUR WHEEL ALIGNMENT CHECK AND ADJUST .
  145. Perform test drive
scientia non olet · About LEMON Manuals
