Sensor - Pressure Tube (Pedestrian Protection) - Remove and Replace: Remove

  1. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  2. Remove the front the bumper beam foam. See FOAM - BUMPER BEAM - FRONT (REMOVE AND REPLACE) .

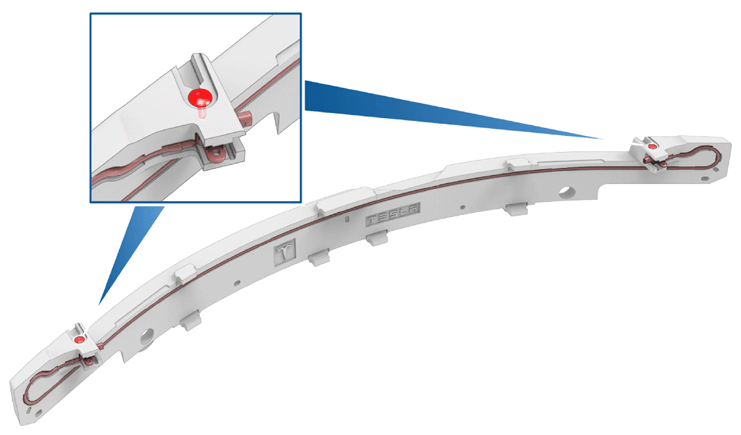

  3. Release the clips (x2) that attach the LH and RH pedestrian protection pressure tube sensors to the front bumper beam foam, and then remove the pressure tube from the foam.
    G14748060Courtesy of TESLA, INC.
