Multimeter (LoZ Setting)

Last modified: 15/02/2023 06:33:50

This procedure describes how to select the low impedance mode on Fluke multimeters without LoZ mode on the mode selector.

1. Turn the dial to OFF  to switch off the multimeter.
2. Press and hold the RANGE  button.

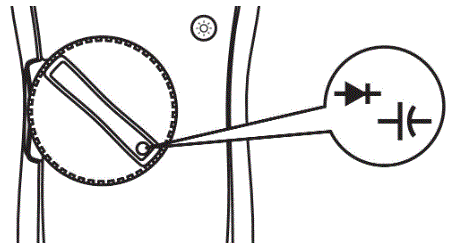

3. Turn the dial to the DIODE/CAPACITANCE  test mode.

   Courtesy of TESLA, INC.

4. Wait until LCAP  shows on the display, and then release the RANGE button.

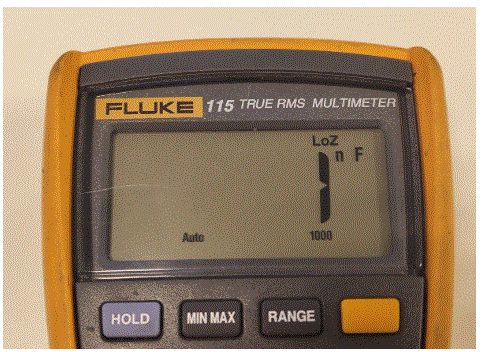

5. Press the yellow button to activate the LoZ  (low impedance) mode.
   NOTE: LoZ  will show at the top right corner of the display.

   Courtesy of TESLA, INC.
