Diffuser - Rear Fascia - Remove and Replace: Remove

Raise and support the vehicle. See RAISE VEHICLE - 2 POST LIFT .

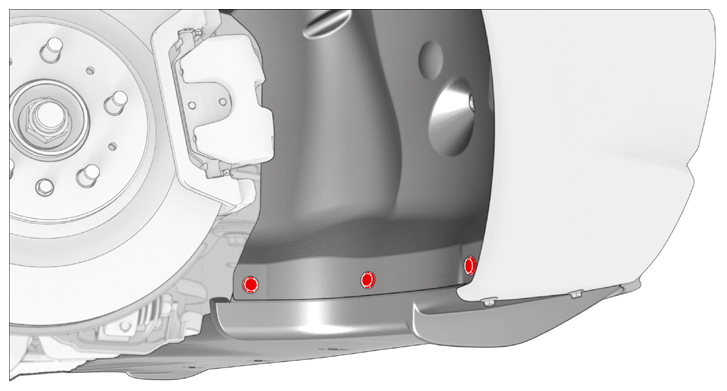

Remove the clips that attach the rear portion of the LH and RH rear wheel liners to the body.

Courtesy of TESLA, INC.
Remove the mid aero shield panel. See PANEL - AERO SHIELD - MID (REMOVE AND REPLACE) .

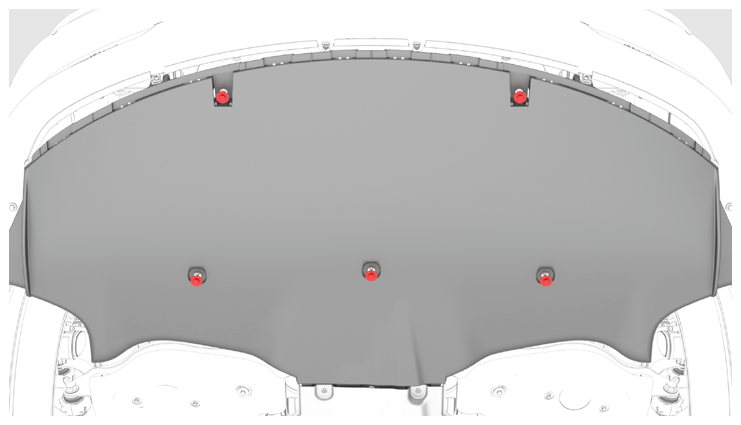

Remove the fastener covers, and then remove the bolts that attach the rear fascia diffuser to the vehicle.
4 N.m (2.9 ft-lbs)

NOTE: Newer vehicles are not equipped with the front, middle bolt.

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 2 in extension
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

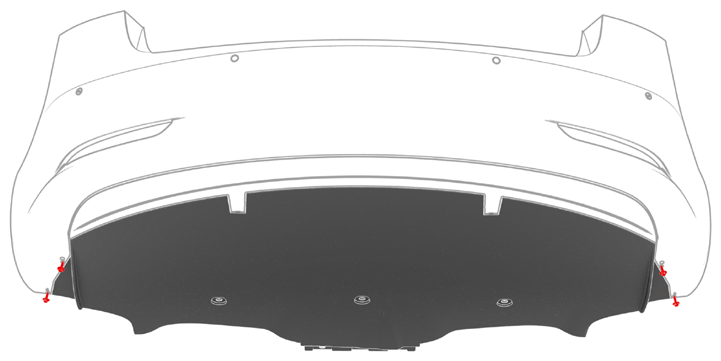

Remove the bolts that attach the rear fascia diffuser to the outer edge of the rear fascia.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

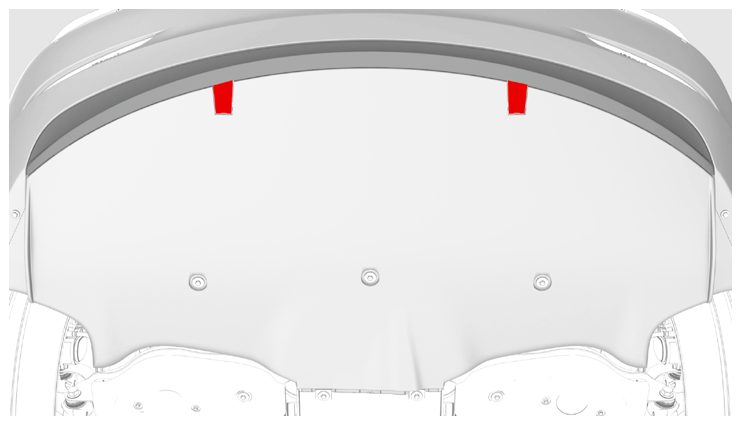

Remove the bolts that attach the rear fascia diffuser to the inside of the rear fascia.
3 N.m (2.2 ft-lbs)

NOTE: Reach into the loosened rear fascia diffuser to access these bolts.

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

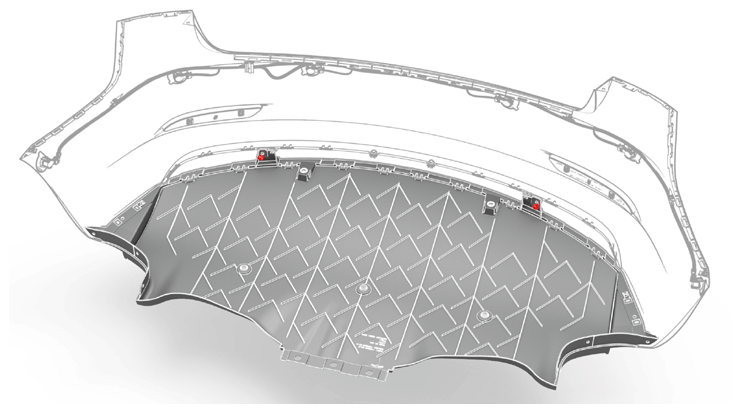

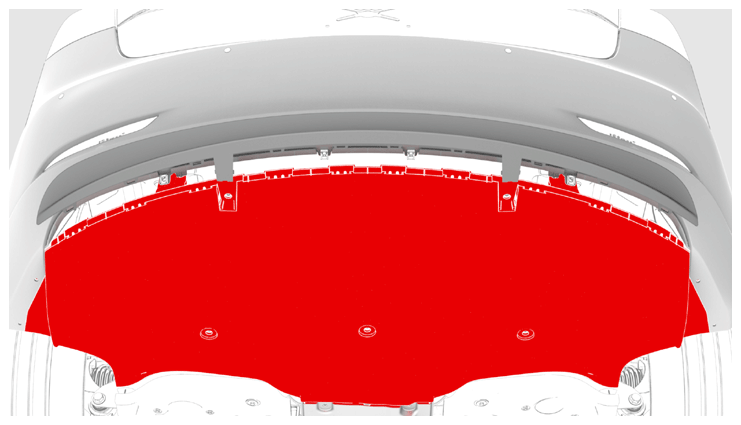

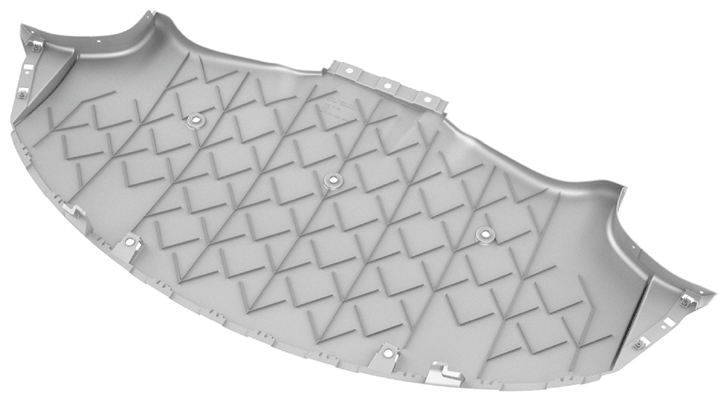

Release the tabs that attach the rear fascia diffuser to the rear fascia, and then remove the diffuser.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
