Module (ECU) - Occupant Classification System (OCS) - Front Passenger - Remove and Replace: Remove
- Check that the firmware is version 2023.2.11 or above. If the firmware version is not 2023.2.11 or above, update the vehicle firmware.
- Open the RH front door and lower the RH front window.
- Move the front passenger seat forward and raise the seat to the highest position.

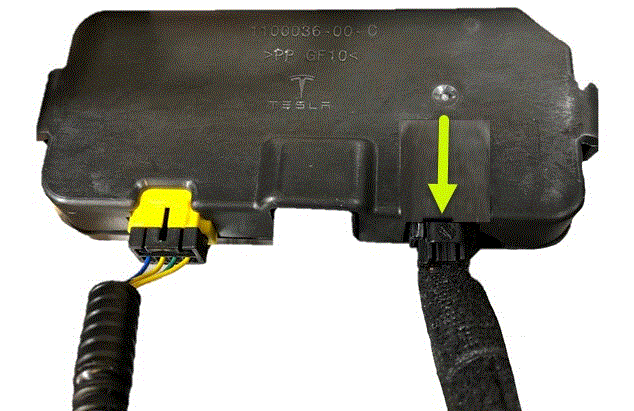

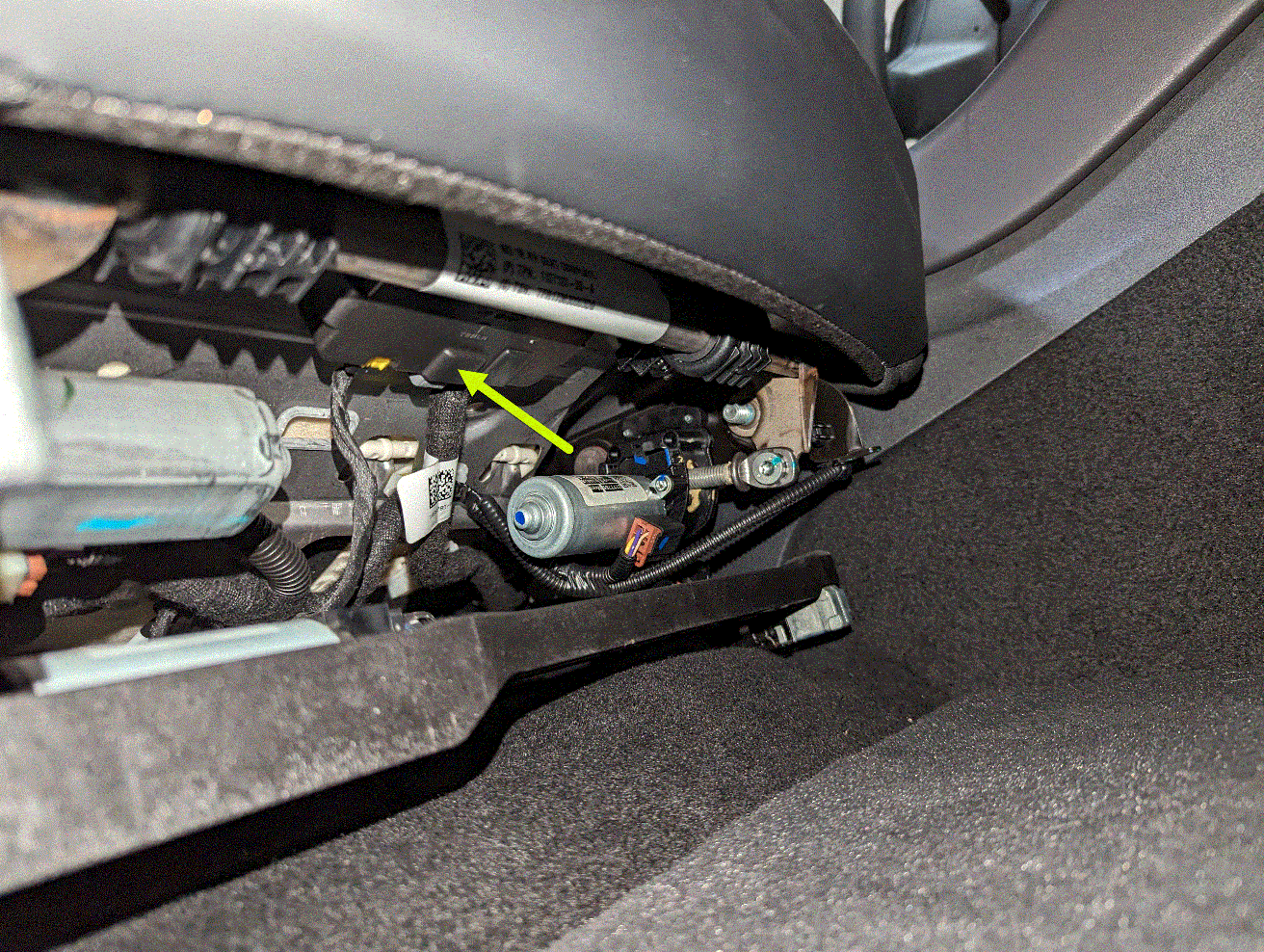

- Disconnect the self capacitance trace connector from the OCS ECU module.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

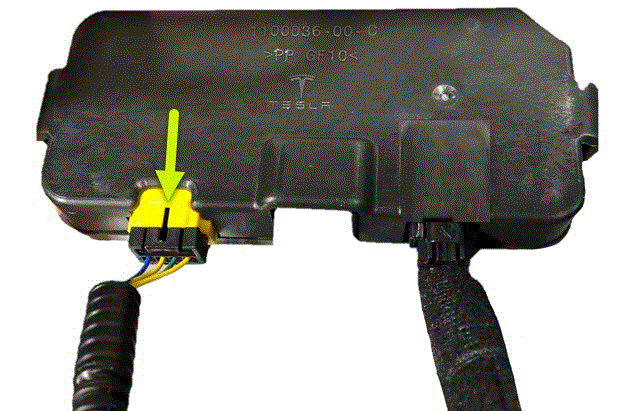

- Disconnect the RH front seat harness connector from the OCS ECU module.
 Courtesy of TESLA, INC.
|

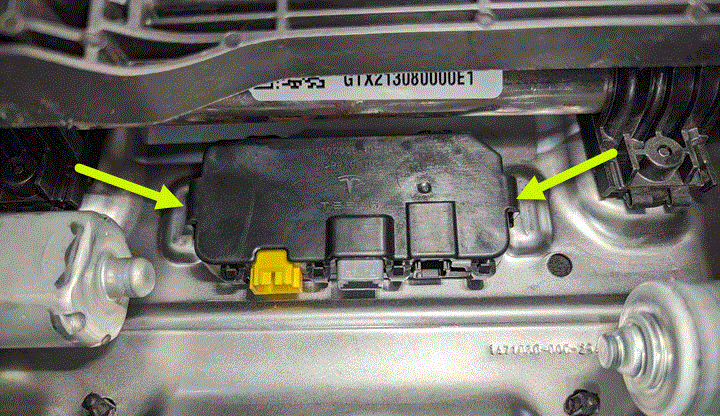

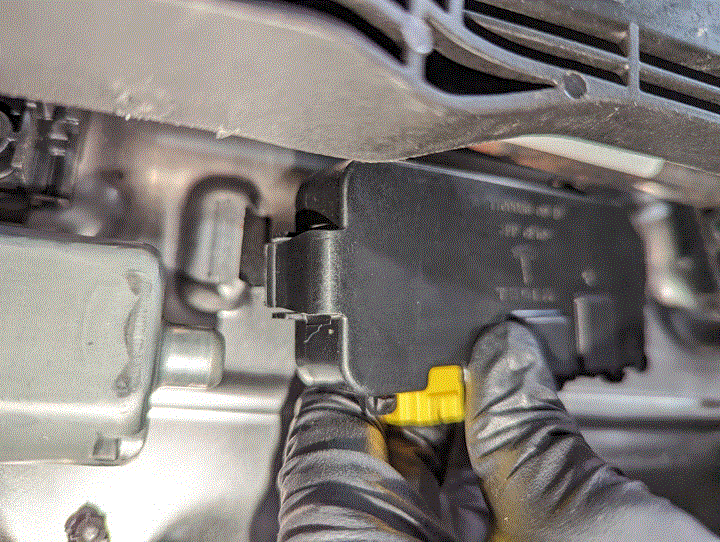

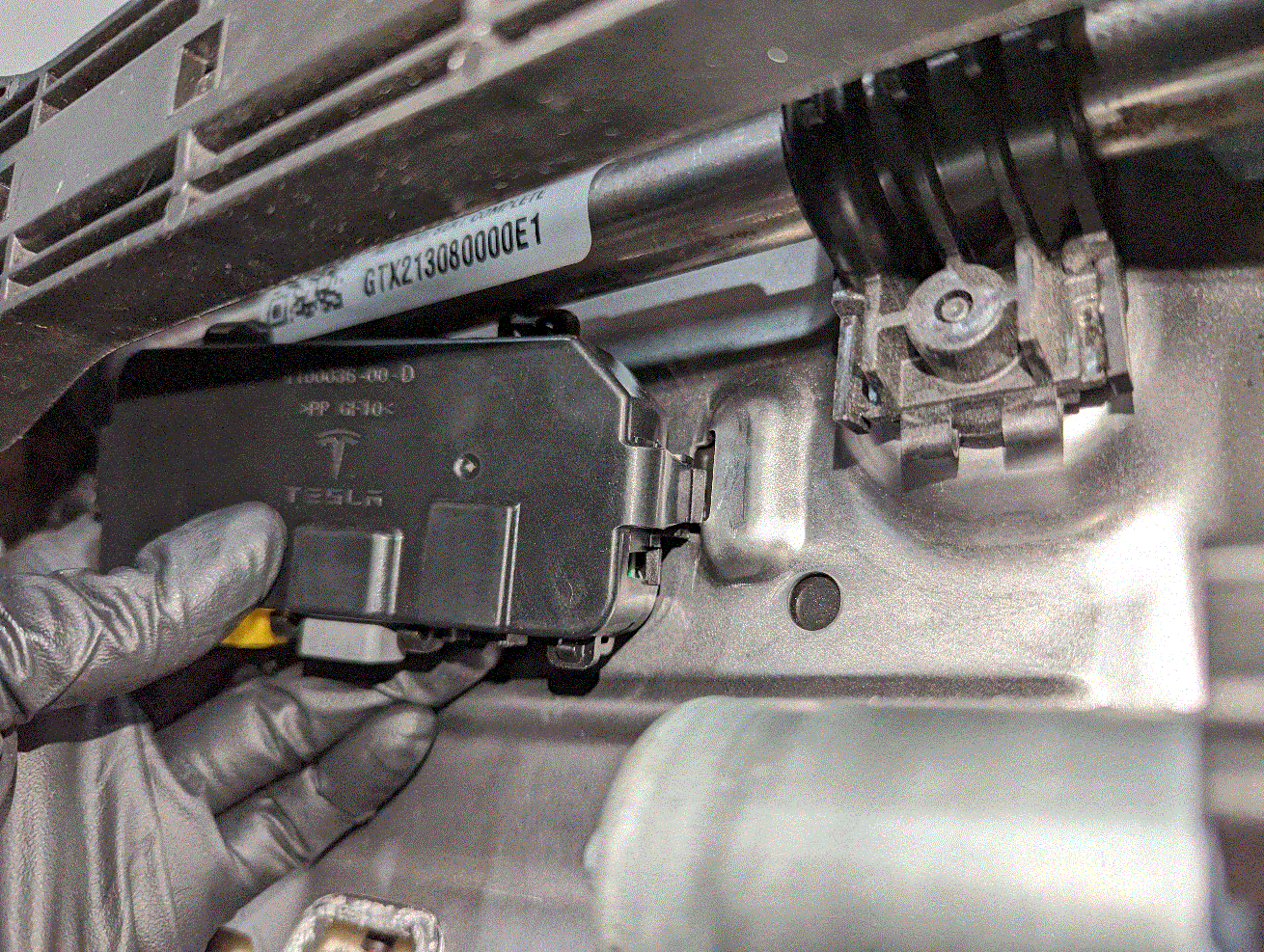

- Release the tabs (x2) that attach the front passenger OCS ECU module to the seat assembly, and then remove the module from the vehicle.
Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
