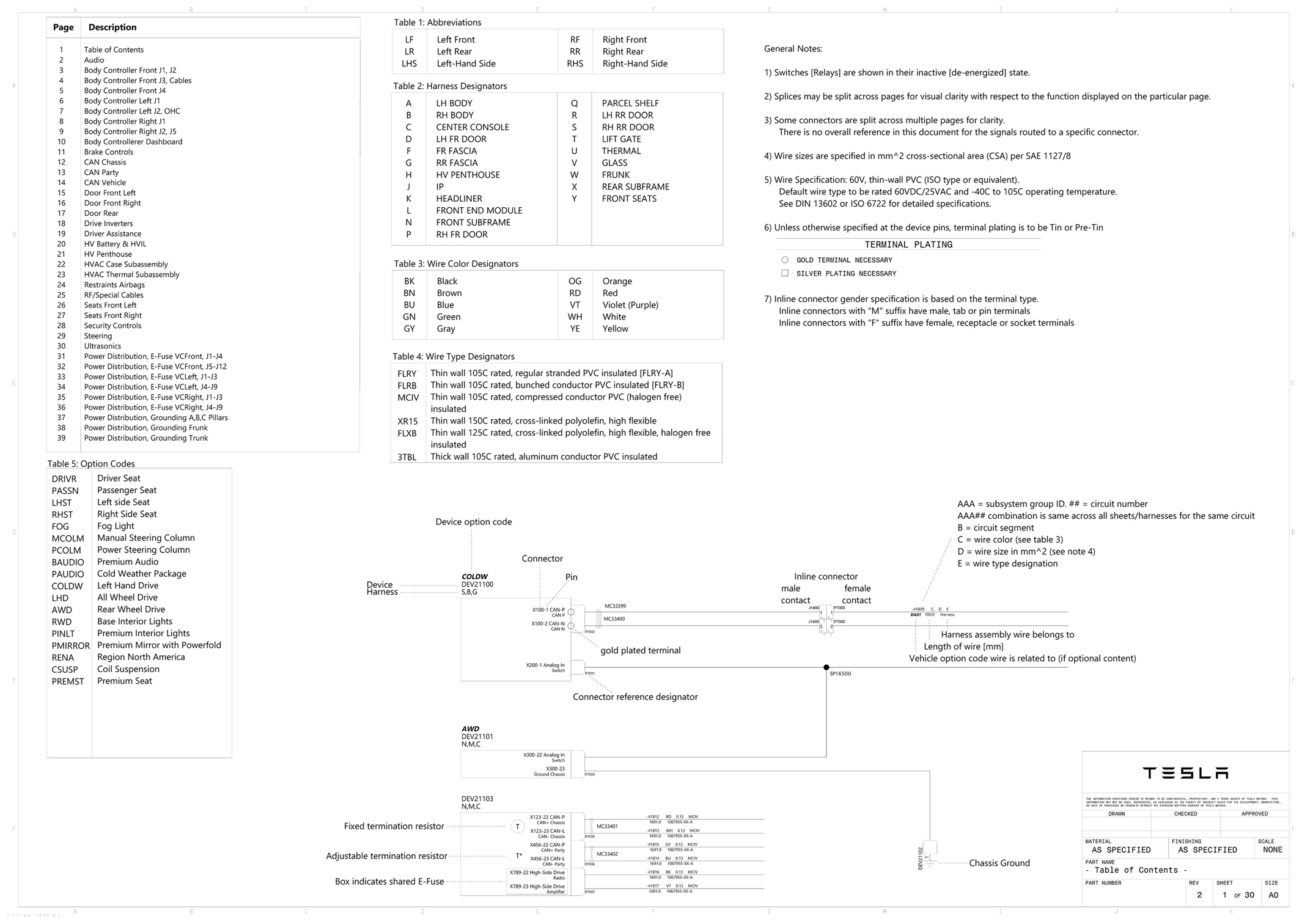

Table of Contents - Wiring Diagram (Fremont: 07/01/2017 - 07/10/2018)
| Page | Description |
|---|---|
| 1 | Table of Contents |
| 2 | Audio |
| 3 | Body Controller Front J1, J2 |
| 4 | Body Controller Front J3, Cables |
| 5 | Body Controller Front J4 |
| 6 | Body Controller Left J1 |
| 7 | Body Controller Left J2, OHC |
| 8 | Body Controller Right J1 |
| 9 | Body Controller Right J2, J5 |
| 10 | Body Controllers Dashboard |
| 11 | Brake Controls |
| 12 | CAN Chassis |
| 13 | CAN Party |
| 14 | CAN Vehicle |
| 15 | Door Front Left |
| 16 | Door Front Right |
| 17 | Door Rear |
| 18 | Drive Inverters |
| 19 | Driver Assistance |
| 20 | HV Battery & HVIL |
| 21 | HV Penthouse |
| 22 | HVAC Case Subassembly |
| 23 | HVAC Thermal Subassembly |
| 24 | Power Distribution, E-Fuse VCFront, J1-J4 |
| 25 | Power Distribution, E-Fuse VCFront, J5-J12 |
| 26 | Power Distribution, E-Fuse VCLeft, J1-J3 |
| 27 | Power Distribution, E-Fuse VCLeft, J4-J9 |
| 28 | Power Distribution, E-Fuse VCRight, J1-J3 |
| 29 | Power Distribution, E-Fuse VCRight, J4-J9 |
| 30 | Power Distribution, Grounding A, B, C Pillars |
| 31 | Power Distribution, Grounding Frunk |
| 32 | Power Distribution, Grounding Trunk |
| 33 | Restraints Airbags |
| 34 | RF/Special Cables |
| 35 | Seats Front Left |
| 36 | Seats Front Right |
| 37 | Security Controls |
| 38 | Steering |
| 38 | Ultrasonics |
Table 1: Abbreviations
| LF | Left Front |
| LR | Left Rear |
| LHS | Left-Hand Side |
| RF | Right Front |
| RR | Right Rear |
| RHS | Right-Hand Side |
Table 2: Harness Designators
| A | LH BODY |
| B | RH BODY |
| C | CENTER CONSOLE |
| D | LH FR DOOR |
| F | FR FASCIA |
| G | RR FASCIA |
| H | HV PENTHOUSE |
| J | IP |
| K | HEADLINER |
| L | FRONT END MODULE |
| N | FRONT SUBFRAME |
| P | RH FR DOOR |
| Q | PARCEL SHELF |
| R | LH RR DOOR |
| S | RH RR DOOR |
| T | LIFT GATE |
| U | THERMAL |
| V | GLASS |
| W | FRUNK |
| X | REAR SUBFRAME |
| Y | FRONT SEATS |
Table 3: Wire Color Designators
| BK | Black |
| BN | Brown |
| BU | Blue |
| GN | Green |
| GY | Gray |
| OG | Orange |
| RD | Red |
| VT | Violet (Purple) |
| WH | White |
| YE | Yellow |
Table 4: Wire Type Designators
| FLRY | Thin wall 105C rated, regular stranded PVC insulated [FLRY-A] |
| FLRB | Thin wall 105C rated, bunched conductor PVC insulated [FLRY-B] |
| MCIV | Thin wall 105C rated, compressed conductor PVC (halogen free) insulated |
| XR15 | Thin wall 150C rated, cross-linked polyolefin, high flexible |
| FLXB | Thin wall 125C rated, cross-linked polyolefin, high flexible, halogen free insulated |
| 3TBL | Thick wall 105C rated, aluminum conductor PVC insulated |
Table 5: Option Codes
| DRIVR | Driver Seat |
| PASSN | Passenger Seat |
| LHST | Left side Seat |
| RHST | Right Side Seat |
| FOG | Fog Light |
| MCOLM | Manual Steering Column |
| PCOLM | Power Steering Column |
| BAUDIO | Premium Audio |
| PAUDIO | Cold Weather Package |
| COLDW | Left Hand Drive |
| LHD | All Wheel Drive |
| AWD | Rear Wheel Drive |
| RWD | Base Interior Lights |
| PINLT | Premium Interior Lights |
| PMIRROR | Premium Mirror with Powerfold |
| RENA | Region North America |
| CSUSP | Coil Suspension |
| PREMST | Premium Seat |
General Notes:
- Switches [Relays] are shown in their inactive [de-energized] state.
- Splices may be split across pages for visual clarity with respect to the function displayed on the particular page.
- Some connectors are split across multiple pages for clarity.
There is no overall reference in this document for the signals routed to a specific connector.
- Wire sizes are specified in mm2 cross-sectional area (CSA) per SAE 1127/8
- Wire Specification: 60V, thin-wall PVC (ISO type or equivalent).
Default wire type to be rated 60VDC/25VAC and -40°C to 105°C operating temperature.
See DIN 13602 or ISO 6722 for detailed specifications.
- Unless otherwise specified at the device pins, terminal plating is to be Tin or Pre-Tin
TERMINAL PLATING
GOLD TERMINAL NECESSARY
SILVER PLATING NECESSARY
- Inline connector gender specification is based on the terminal type.
Inline connectors with "M" suffix have male, tab or pin terminals
Inline connectors with "F" suffix have female, receptacle or socket terminals
