Connector End View - X896 (Fremont: 07/01/2017 - 07/10/2018)

Tesla Part Number  1099356-00-A

Connector  ROSENBERGER 59Z127-000-A

Color  BK

Connector Location:

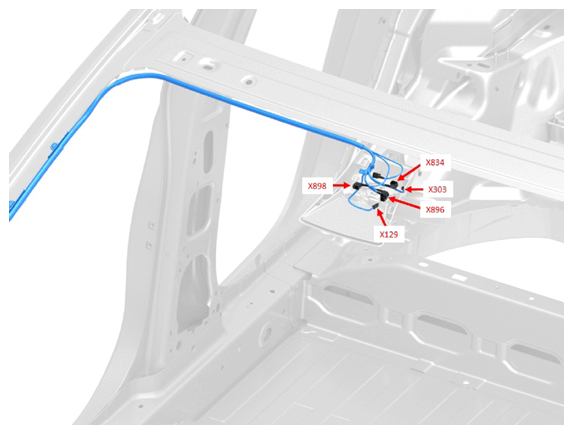

Fig 1: Connector Component Location - X896 (Fremont: 07/01/2017 - 07/10/2018)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X896 (Fremont: 07/01/2017 - 07/10/2018)

Courtesy of TESLA, INC.
