Connector End View - X866M (Fremont: 07/01/2017 - 07/10/2018)

Tesla Part Number 1058577-03-A

Connector ROSENBERGER 59Z118-C00-D

Color BO

Connector Location:

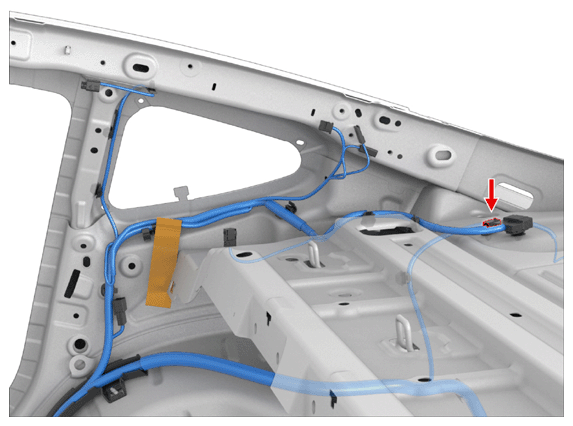

Fig 1: Connector Component Location - X866M (Fremont: 07/01/2017 - 07/10/2018)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X866M (Fremont: 07/01/2017 - 07/10/2018)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	ROSENBERGER	59S16A-1M4T4	COAXM	BK	D302			X830	1
