Mount - Front Drive Unit - LH - Remove and Replace: Remove

  1. Remove the front subframe assembly. See Subframe Assembly - Front (Dual Motor) - Remove and Install .

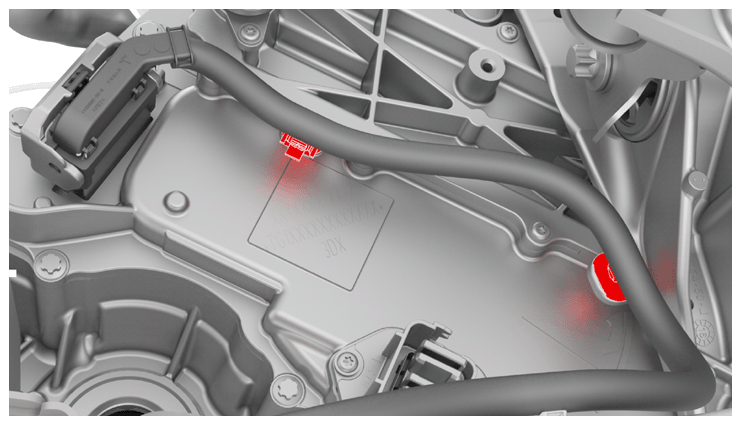

  2. Release the clips that attach the front subframe electrical harness to the front drive unit inverter.
    G14750097Courtesy of TESLA, INC.

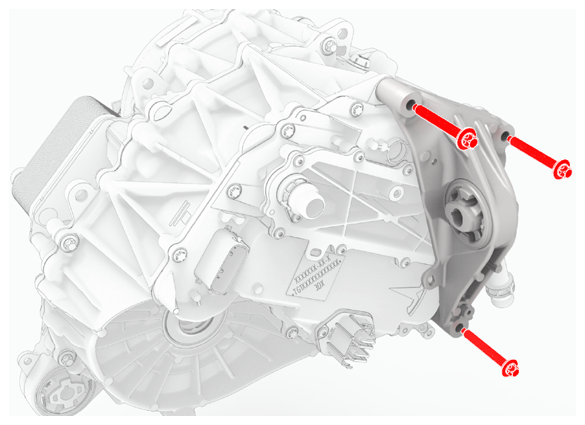

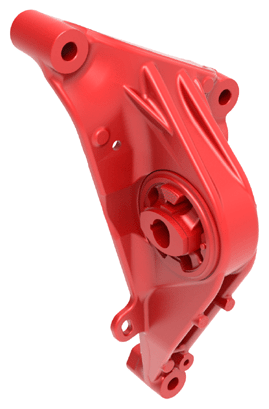

  3. Remove the bolts that attach the LH front drive unit mount to the front drive unit, and then remove the mount from the front drive unit.
    G14750098Courtesy of TESLA, INC.
    G14750099Courtesy of TESLA, INC.
