Mount - Front Drive Unit - LH - Remove and Replace: Install

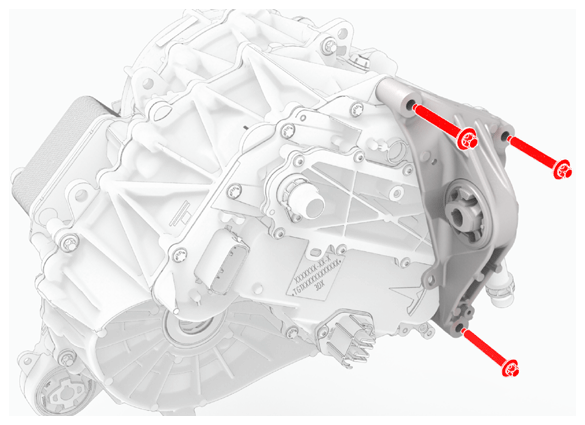

  1. Install the LH front drive unit mount to the front drive unit, and then install the bolts that attach the mount to the front drive unit.

    35 N.m (25.8 ft-lbs) + 55 degrees

    G14750100Courtesy of TESLA, INC.

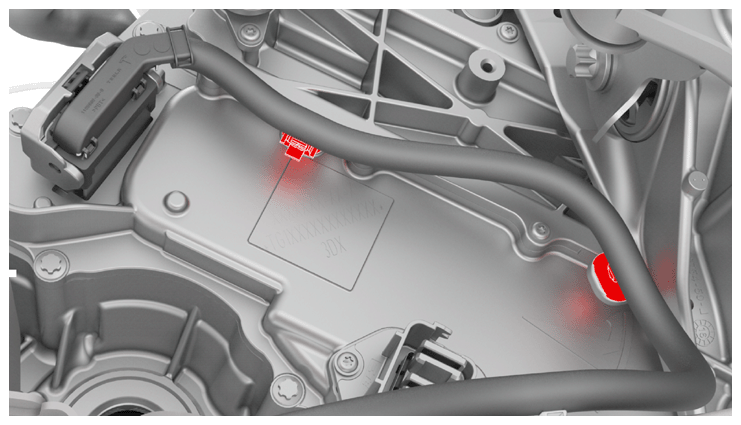

  2. Fasten the clips that attach the front drive unit harness to the front drive unit inverter.
    G14750101Courtesy of TESLA, INC.
  3. Install the front subframe assembly. See Subframe Assembly - Front (Dual Motor) - Remove and Install .
  4. Check the vehicle wheel alignment, and adjust if necessary. See FOUR WHEEL ALIGNMENT CHECK .
