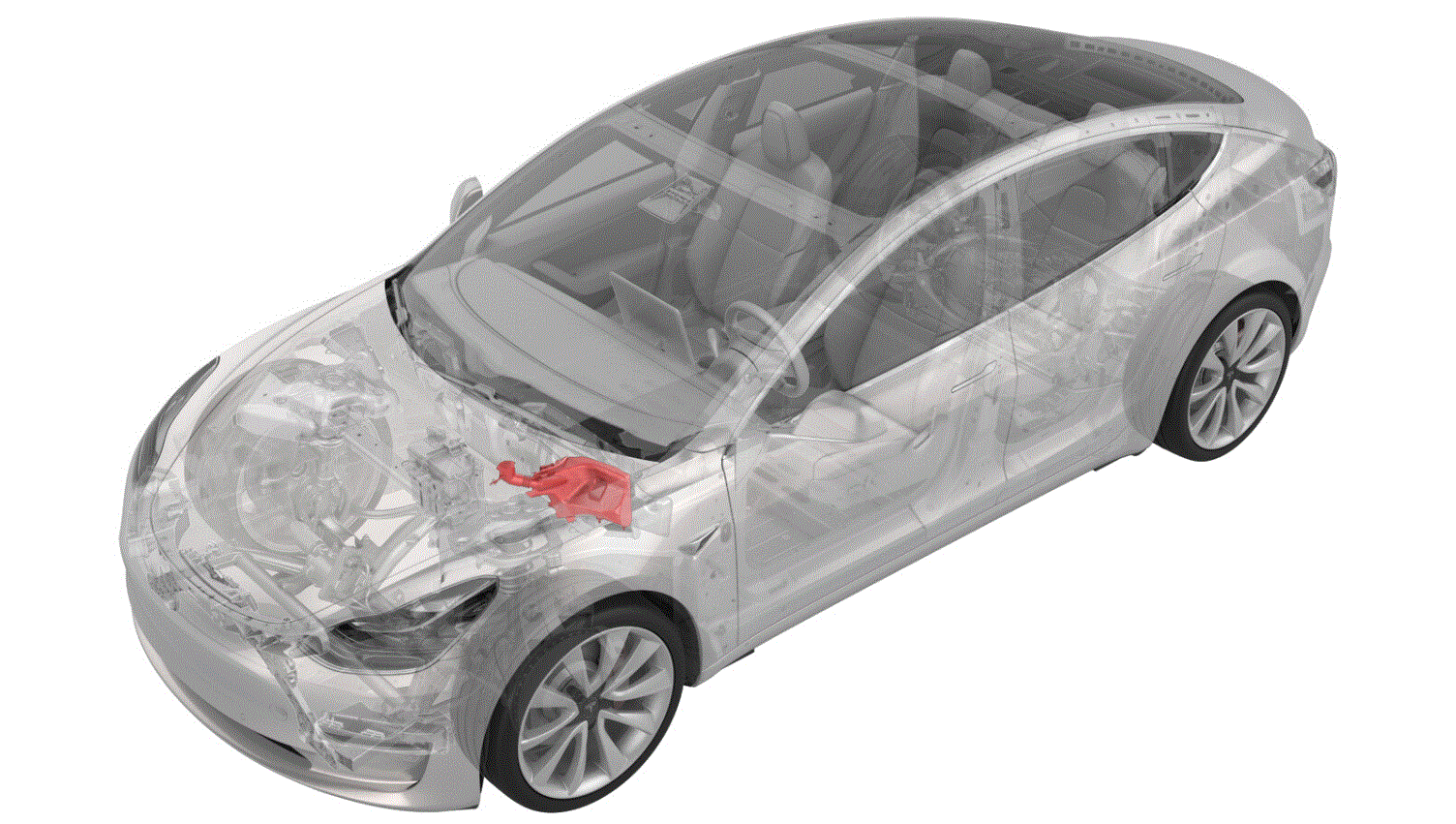

Sensor - Level - Windshield Washer - Remove and Replace: Notes

Last modified: 09/11/2023 00:01:41

Courtesy of TESLA INC

NOTE: See Personal Protection to make sure to wear proper PPE when performing below procedure.

Torque Specifications: Sensor - Level - Windshield Washer (Remove and Replace)

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes
Lower bolt that attaches the windshield washer reservoir to the body	3 Nm (2.2 lbs-ft)	Flex head ratchet/flex head torque wrench 10mm Flex Head combination wrench 10 mm socket Flashlight LED Ratchet/torque wrench 2 in extension	Reuse
Upper bolt that attaches the windshield washer reservoir to the body	3 Nm (2.2 lbs-ft)	Ratchet/torque wrench 2 in extension 10 mm socket	Reuse
