Wiper Module - Remove and Replace: Install

  1. Install the bolts that attach the wiper module to the vehicle.

    7 N.m (5.2 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 10 mm socket
    • 2 in extension

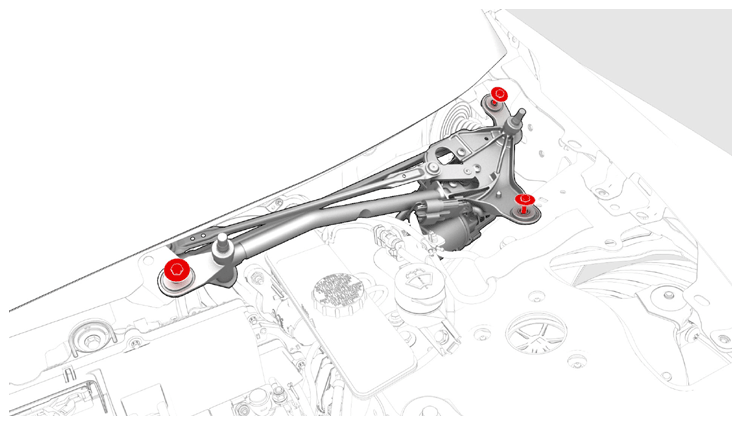

    NOTE: Left-Hand Drive (LHD) shown below.
    G14744398Courtesy of TESLA, INC.

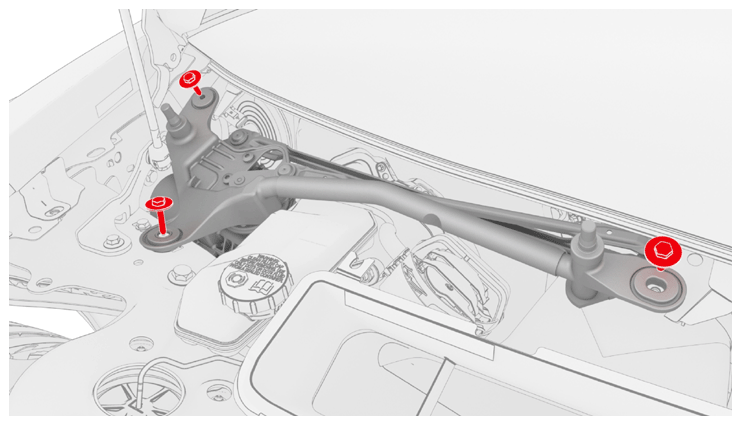

    NOTE: Right-Hand Drive (RHD) shown below.
    G14744399Courtesy of TESLA, INC.
  2. Connect the electrical connector to the wiper module.
    WARNING: Do not place limbs within the module linkage area as the wiper arms will automatically transition to Parking Mode.

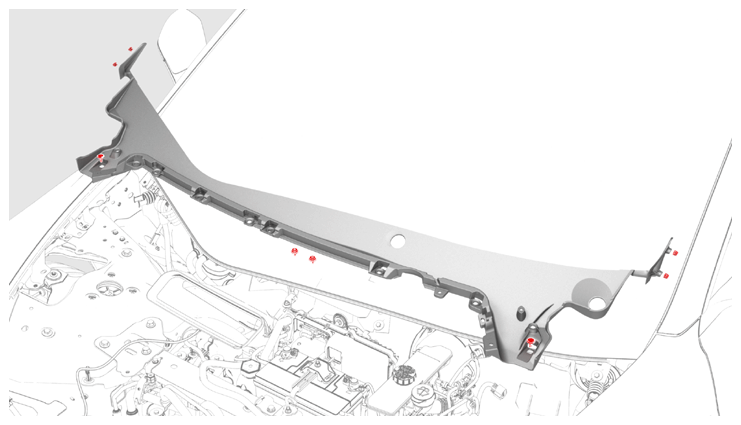

  3. Connect the clips that attach the cowl screen to the vehicle.
    G14744400Courtesy of TESLA, INC.

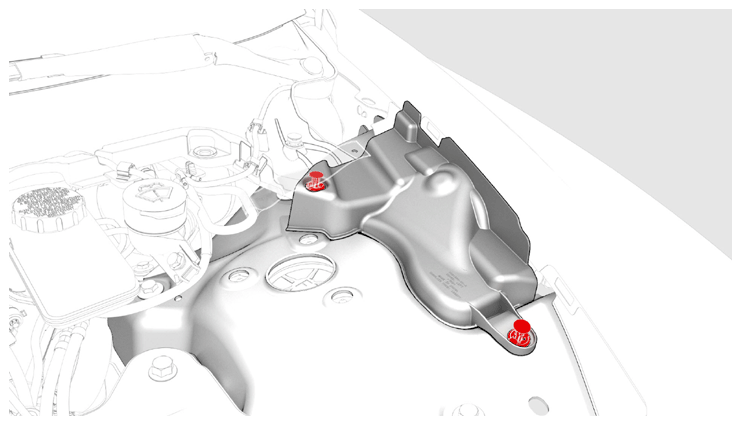

  4. Connect the clips that attach the LH and RH shock tower covers to the vehicle.

    LH shock tower cover shown, RH similar

    G14744401Courtesy of TESLA, INC.
  5. Install the wiper arms. See WIPER ARMS (REMOVE AND REPLACE) .
  6. Install the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  7. Install the underhood storage carpet. See CARPET - UNDERHOOD STORAGE (REMOVE AND INSTALL) .
  8. Install the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .
  9. Install the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
  10. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
