Light - Trunk - Remove and Replace: Remove

  1. Open the trunk.

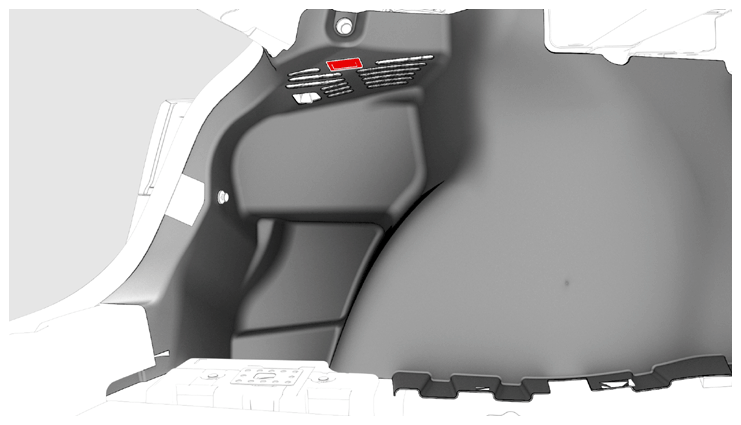

  2. Gently pry the trunk light downward to release the clips (x4).
    G14744189Courtesy of TESLA, INC.
  3. Disconnect the electrical connector from the trunk light, and then remove the trunk light from the vehicle.
